Socket Class Reference

#include <PracticalSocket.h>

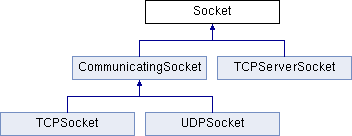

Inheritance diagram for Socket:

Public Member Functions
	~Socket ()
string	getLocalAddress () throw (SocketException)
unsigned short	getLocalPort () throw (SocketException)
void	setLocalPort (unsigned short localPort) throw (SocketException)
void	setLocalAddressAndPort (const string &localAddress, unsigned short localPort=0) throw (SocketException)

Static Public Member Functions
static void	cleanUp () throw (SocketException)
static unsigned short	resolveService (const string &service, const string &protocol="tcp")

Protected Member Functions
	Socket (int type, int protocol) throw (SocketException)
	Socket (int sockDesc)

Protected Attributes
int	sockDesc

Private Member Functions
	Socket (const Socket &sock)
void	operator= (const Socket &sock)

Detailed Description

Socket super class

Definition at line 56 of file PracticalSocket.h.

Constructor & Destructor Documentation

Socket::~Socket

(

)

Close and deallocate this socket

Definition at line 106 of file PracticalSocket.cpp.

References closesocket.

Socket::Socket ( const Socket &  sock )

private

Socket::Socket ( int  type, int  protocol  ) throw ( SocketException )

protected

Definition at line 82 of file PracticalSocket.cpp.

Socket::Socket ( int  sockDesc )

protected

Definition at line 102 of file PracticalSocket.cpp.

Member Function Documentation

string Socket::getLocalAddress	(		)
throw	(	SocketException
	)

Get the local address

Returns

local address of socket

Exceptions

SocketException

thrown if fetch fails

Definition at line 115 of file PracticalSocket.cpp.

unsigned short Socket::getLocalPort	(		)
throw	(	SocketException
	)

Get the local port

Returns

local port of socket

Exceptions

SocketException

thrown if fetch fails

Definition at line 125 of file PracticalSocket.cpp.

void Socket::setLocalPort	(	unsigned short	localPort	)
throw	(	SocketException
	)

Set the local port to the specified port and the local address to any interface

Parameters

localPort

local port

Exceptions

SocketException

thrown if setting local port fails

Definition at line 135 of file PracticalSocket.cpp.

void Socket::setLocalAddressAndPort	(	const string &	localAddress,
		unsigned short	localPort = 0
	)
throw	(	SocketException
	)

Set the local port to the specified port and the local address to the specified address. If you omit the port, a random port will be selected.

Parameters

localAddress	local address
localPort	local port

Exceptions

SocketException

thrown if setting local port or address fails

Definition at line 148 of file PracticalSocket.cpp.

References fillAddr().

void Socket::cleanUp ( ) throw ( SocketException )

static

If WinSock, unload the WinSock DLLs; otherwise do nothing. We ignore this in our sample client code but include it in the library for completeness. If you are running on Windows and you are concerned about DLL resource consumption, call this after you are done with all Socket instances. If you execute this on Windows while some instance of Socket exists, you are toast. For portability of client code, this is an empty function on non-Windows platforms so you can always include it.

Parameters

buffer	buffer to receive the data
bufferLen	maximum number of bytes to read into buffer

Returns

number of bytes read, 0 for EOF, and -1 for error

Exceptions

SocketException

thrown WinSock clean up fails

Definition at line 159 of file PracticalSocket.cpp.

unsigned short Socket::resolveService ( const string &  service, const string &  protocol = "tcp"  )

static

Resolve the specified service for the specified protocol to the corresponding port number in host byte order

Parameters

service	service to resolve (e.g., "http")
protocol	protocol of service to resolve. Default is "tcp".

Definition at line 167 of file PracticalSocket.cpp.

void Socket::operator= ( const Socket &  sock )

private

Member Data Documentation

int Socket::sockDesc

protected

Definition at line 126 of file PracticalSocket.h.

Referenced by TCPServerSocket::accept(), UDPSocket::disconnect(), CommunicatingSocket::getForeignAddress(), CommunicatingSocket::getForeignPort(), UDPSocket::joinGroup(), UDPSocket::leaveGroup(), UDPSocket::recvFrom(), UDPSocket::sendTo(), UDPSocket::setBroadcast(), and UDPSocket::setMulticastTTL().

---

The documentation for this class was generated from the following files:

• /Content/Code/CSL6/Src/Spatializers/VBAP/PracticalSocket.h
• /Content/Code/CSL6/Src/Spatializers/VBAP/PracticalSocket.cpp
