Envelope: a collection of LineSegments; may have an input (scale) and act like a processor, or have no input and act like a control UGen. I inherit Scalable setScale, setOffset for inputs. More...

#include <Envelope.h>

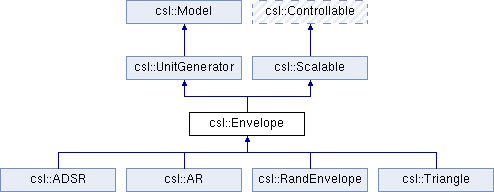

Inheritance diagram for csl::Envelope:

Public Member Functions
	Envelope ()

	Envelope (LineMode mode, float t, float x1, float y1, float x2=0, float y2=1.0, float x3=0, float y3=1.0, float x4=0, float y4=1.0, float x5=0, float y5=1.0, float x6=0, float y6=1.0)
	Envelope class. More...

	Envelope (LineMode mode, float t, unsigned int size, float x[], float y[])

	Envelope (float t, float x1, float y1, float x2=0, float y2=1.0, float x3=0, float y3=1.0, float x4=0, float y4=1.0, float x5=0, float y5=1.0, float x6=0, float y6=1.0)

	Envelope (float t, unsigned int size, float x[], float y[])

virtual	~Envelope ()

virtual bool	isActive ()
	This answers whether I'm active (ptr < end) More...

void	addBreakpoint (float startTime, float value)

void	setMode (LineMode mode)

virtual void	setDuration (float d)
	set/scale durations More...

virtual void	scaleTimes (float s)
	scale durations More...

virtual void	scaleValues (float s)
	scale values so the max is s More...

virtual void	reset ()
	reset internal time to restart envelope More...

virtual void	trigger ()
	reset internal time to restart envelope More...

virtual void	dump ()
	Pretty-printer. More...

virtual void	nextBuffer (Buffer &outputBuffer, unsigned outBufNum) throw (CException)
	The main FrameStream work method. More...

unsigned	frameRate ()

void	setFrameRate (unsigned rate)
	get/set the receiver's frame rate More...

virtual unsigned	numChannels ()

void	setNumChannels (unsigned ch)
	get/set the receiver's number of outputs More...

BufferCopyPolicy	copyPolicy ()

void	setCopyPolicy (BufferCopyPolicy ch)
	get/set the receiver's buffer copy policy More...

virtual void	nextBuffer (Buffer &outputBuffer) throw (CException)
	get a buffer of Frames – this is the core CSL "pull" function; the given buffer can be written into, and a changed() message is sent. More...

virtual bool	isFixed ()
	query whether I'm fixed (StaticVariable overrides this) More...

void	addOutput (UnitGenerator *ugen)
	add to or return the UGen vector of outputs More...

void	removeOutput (UnitGenerator *ugen)

UGenVector	outputs ()

virtual unsigned	numOutputs ()

bool	checkFanOut (Buffer &outputBuffer) throw (CException)
	check for fan-out and copy previous buffer; return true if fanning out More...

void	handleFanOut (Buffer &outputBuffer) throw (CException)

virtual void	setValue (sample theValue)
	set/get the value (not allowed in the abstract, useful for static values) More...

virtual sample	value ()

void	attachObserver (Observer *)
	(possibly notify obersvers on my death) More...

void	detachObserver (Observer *)

void	changed (void *argument)
	this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map More...

virtual int	evaluate (void *argument)

void	setScale (UnitGenerator &scale)
	set the receiver's scale member to a UGen or a float More...

void	setScale (float scale)

void	setOffset (UnitGenerator &offset)
	set the receiver's offset member to a UGen or a float More...

void	setOffset (float offset)

void	isScaled ()
	answer whether scale = 1 & offset = 0 More...

Port *	getPort (CSL_MAP_KEY name)

Protected Member Functions
unsigned int	privateNextBuffer (CPoint breakpoint, LineSegment segment, float *buffer, unsigned int numFrames)
	Internal helper method for computing the next buffer. More...

void	createSegments ()
	Allocate memory for the segments. More...

void	calculateSegments ()
	Calculate the internal data. More...

void	zeroBuffer (Buffer &outputBuffer, unsigned outBufNum)
	utility method to zero out an outputBuffer More...

void	addInput (CSL_MAP_KEY name, UnitGenerator &ugen)
	Plug in a unit generator to the named input slot. More...

void	addInput (CSL_MAP_KEY name, float value)
	Plug in a float to the named input slot. More...

void	pullInput (Port *thePort, unsigned numFrames) throw (CException)
	method to read the control values (in case they're dynamic). this sends nextBuffer() to the input. More...

void	pullInput (Port *thePort, Buffer &theBuffer) throw (CException)

Protected Attributes
float	mDuration
	Total duration, typically in seconds. More...

float	mCurrentMark
	How far we have read. More...

Breakpoints	mSegmentMap
	list of envelope breakpoints More...

LineSegment **	mSegments
	array of line segments that for the envelope More...

float *	mValues

unsigned	mSize

unsigned	mFrameRate
	trigger ignored here More...

unsigned	mNumChannels
	my "expected" number of output channels More...

BufferCopyPolicy	mCopyPolicy
	the policy I use if asked for more or fewer channels More...

UGenVector	mOutputs
	the vector of my output UGens More...

unsigned	mNumOutputs
	the number of outputs More...

Buffer *	mOutputCache
	my past output ring buffer (only used in case of fan-out) More...

unsigned	mSequence
	the highest-seen buffer seq number More...

PortMap	mInputs
	the map of my inputs or controls (used by the mix-in classes) More...

Detailed Description

Envelope: a collection of LineSegments; may have an input (scale) and act like a processor, or have no input and act like a control UGen. I inherit Scalable setScale, setOffset for inputs.

Definition at line 89 of file Envelope.h.

Constructor & Destructor Documentation

csl::Envelope::Envelope ( )

inline

Definition at line 91 of file Envelope.h.

Envelope::Envelope	(	LineMode	mode,
		float	t,
		float	x1,
		float	y1,
		float	x2 = `0`,
		float	y2 = `1.0`,
		float	x3 = `0`,
		float	y3 = `1.0`,
		float	x4 = `0`,
		float	y4 = `1.0`,
		float	x5 = `0`,
		float	y5 = `1.0`,
		float	x6 = `0`,
		float	y6 = `1.0`
	)

Envelope class.

Lots of useful constructors

Definition at line 117 of file Envelope.cpp.

References createSegments(), and mSegmentMap.

Envelope::Envelope	(	LineMode	mode,
		float	t,
		unsigned int	size,
		float	x[],
		float	y[]
	)

Definition at line 129 of file Envelope.cpp.

References createSegments(), mSegmentMap, and size.

Envelope::Envelope	(	float	t,
		float	x1,
		float	y1,
		float	x2 = `0`,
		float	y2 = `1.0`,
		float	x3 = `0`,
		float	y3 = `1.0`,
		float	x4 = `0`,
		float	y4 = `1.0`,
		float	x5 = `0`,
		float	y5 = `1.0`,
		float	x6 = `0`,
		float	y6 = `1.0`
	)

Definition at line 136 of file Envelope.cpp.

References createSegments(), and mSegmentMap.

Envelope::Envelope	(	float	t,
		unsigned int	size,
		float	x[],
		float	y[]
	)

Definition at line 148 of file Envelope.cpp.

References createSegments(), mSegmentMap, and size.

Envelope::~Envelope ( )

virtual

Definition at line 155 of file Envelope.cpp.

References mSegmentMap, mSegments, and mValues.

Member Function Documentation

bool Envelope::isActive ( )

virtual

This answers whether I'm active (ptr < end)

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::RandEnvelope.

Definition at line 211 of file Envelope.cpp.

References mCurrentMark, and mDuration.

void Envelope::addBreakpoint	(	float	startTime,
		float	value
	)

Definition at line 192 of file Envelope.cpp.

References createSegments(), mDuration, mSegmentMap, mSegments, and mValues.

Referenced by sosNote(), and testComplexEnvelope().

void Envelope::setMode ( LineMode mode )

Definition at line 206 of file Envelope.cpp.

References mSegments, and mSize.

void Envelope::setDuration ( float d )

virtual

set/scale durations

Scaling operations.

Reimplemented in csl::RandEnvelope, csl::AR, and csl::ADSR.

Definition at line 220 of file Envelope.cpp.

References csl::kLogError, csl::logMsg(), mDuration, and scaleTimes().

Referenced by csl::ADSR::setDuration(), csl::AR::setDuration(), and csl::FancyFMInstrument::setParameter().

void Envelope::scaleTimes ( float s )

virtual

scale durations

Reimplemented in csl::RandEnvelope.

Definition at line 229 of file Envelope.cpp.

References calculateSegments(), mDuration, mSegmentMap, mSegments, mSize, mValues, and csl::LineSegment::reset().

Referenced by setDuration().

void Envelope::scaleValues ( float s )

virtual

scale values so the max is s

Definition at line 246 of file Envelope.cpp.

References csl::LineSegment::end(), mSegments, mSize, csl::LineSegment::setEnd(), csl::LineSegment::setStart(), and csl::LineSegment::start().

Referenced by csl::FMInstrument::FMInstrument(), csl::FMInstrument::parseArgs(), csl::AdditiveInstrument::playMIDI(), csl::FMInstrument::playMIDI(), csl::FancyFMInstrument::playMIDI(), csl::AdditiveInstrument::playNote(), csl::FMInstrument::playNote(), csl::AdditiveInstrument::playOSC(), and csl::FMInstrument::setParameter().

void Envelope::reset ( )

virtual

reset internal time to restart envelope

Reset time to 0.0 to restart envelope.

Reimplemented in csl::RandEnvelope.

Definition at line 276 of file Envelope.cpp.

References mCurrentMark, mSegments, and mSize.

Referenced by trigger().

void Envelope::trigger ( void )

virtual

reset internal time to restart envelope

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::RandEnvelope.

Definition at line 284 of file Envelope.cpp.

References reset().

Referenced by main(), csl::SndFileInstrument::play(), csl::SndFileInstrument::playNote(), csl::SndFileInstrument::playOSC(), sosNote(), test_SHARC(), test_SHARC2(), testADSR2(), testADSR_FM(), testAMFMEnvs(), testARSin(), testARSin2(), testBlockDownsizer(), testBlockUpsizer(), testComplexEnvelope(), testEnvScale(), testFancy_FM(), testFanMix1(), testFanMix2(), testFrequencyEnv(), testMultiTap(), testRandFreqEnv(), testReverb(), testSplitJoin1(), testSplitJoin2(), testStereoverb(), and testWaveShaper().

void Envelope::dump ( void )

virtual

Pretty-printer.

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::RandEnvelope.

Definition at line 263 of file Envelope.cpp.

References csl::LineSegment::dump(), csl::Controllable::dump(), csl::logMsg(), mDuration, mSegments, mSize, and mValues.

Referenced by testComplexEnvelope(), and testFrequencyEnv().

void Envelope::nextBuffer	(	Buffer &	outputBuffer,
		unsigned	outBufNum
	)
throw	(	CException
	)

virtual

The main FrameStream work method.

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::RandEnvelope.

Definition at line 292 of file Envelope.cpp.

References DECLARE_SCALABLE_CONTROLS, csl::kLogError, LOAD_SCALABLE_CONTROLS, csl::logMsg(), mFrameRate, and UPDATE_SCALABLE_CONTROLS.

unsigned int csl::Envelope::privateNextBuffer	(	CPoint *	breakpoint,
		LineSegment *	segment,
		float *	buffer,
		unsigned int	numFrames
	)

protected

Internal helper method for computing the next buffer.

void Envelope::createSegments ( )

protected

Allocate memory for the segments.

Definition at line 164 of file Envelope.cpp.

References calculateSegments(), mSegmentMap, mSegments, and mValues.

Referenced by addBreakpoint(), and Envelope().

void Envelope::calculateSegments ( )

protected

Calculate the internal data.

Definition at line 170 of file Envelope.cpp.

References mCurrentMark, mDuration, mSegmentMap, mSegments, mSize, mValues, csl::LineSegment::setDuration(), and csl::LineSegment::setStart().

Referenced by createSegments(), scaleTimes(), csl::AR::setAll(), csl::AR::setAttack(), csl::AR::setDelay(), and csl::AR::setRelease().

unsigned csl::UnitGenerator::frameRate ( )

inlineinherited

Definition at line 249 of file CSL_Core.h.

References csl::UnitGenerator::mFrameRate.

Referenced by csl::CASoundFile::dump(), csl::Abst_SoundFile::dump(), and csl::SoundCue::dump().

void csl::UnitGenerator::setFrameRate ( unsigned rate )

inlineinherited

get/set the receiver's frame rate

Definition at line 250 of file CSL_Core.h.

References csl::UnitGenerator::mFrameRate.

virtual unsigned csl::UnitGenerator::numChannels ( )

inlinevirtualinherited

Reimplemented in csl::Splitter, and csl::Stereoverb.

Definition at line 252 of file CSL_Core.h.

References csl::UnitGenerator::mNumChannels.

Referenced by csl::AmbisonicMixer::addInput(), csl::BlockResizer::BlockResizer(), csl::Port::checkBuffer(), csl::Effect::Effect(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::Mixer::nextBuffer(), csl::Convolver2::setIRFile(), csl::Convolver::setIRFile(), and csl::SpatialSource::SpatialSource().

void csl::UnitGenerator::setNumChannels ( unsigned ch )

inlineinherited

get/set the receiver's number of outputs

Definition at line 253 of file CSL_Core.h.

References csl::UnitGenerator::mNumChannels.

Referenced by csl::BinauralPanner::BinauralPanner(), csl::Spatializer::Spatializer(), csl::VBAP::speakerLayoutChanged(), and csl::VBAP::VBAP().

BufferCopyPolicy csl::UnitGenerator::copyPolicy ( )

inlineinherited

Definition at line 255 of file CSL_Core.h.

References csl::UnitGenerator::mCopyPolicy.

void csl::UnitGenerator::setCopyPolicy ( BufferCopyPolicy ch )

inlineinherited

get/set the receiver's buffer copy policy

Definition at line 256 of file CSL_Core.h.

References csl::UnitGenerator::mCopyPolicy.

Referenced by csl::AmbisonicPanner::AmbisonicPanner(), csl::BinauralPanner::BinauralPanner(), csl::AmbisonicUnitGenerator::initOrder(), csl::Noise::Noise(), csl::PinkNoise::PinkNoise(), csl::Spatializer::Spatializer(), and csl::VBAP::VBAP().

void UnitGenerator::nextBuffer	(	Buffer &	outputBuffer	)
throw	(	CException
	)

virtualinherited

get a buffer of Frames – this is the core CSL "pull" function; the given buffer can be written into, and a changed() message is sent.

Reimplemented in csl::Joiner, csl::Splitter, csl::FanOut, csl::SoundCue, csl::Stereoverb, csl::StereoWidth, csl::Abst_SoundFile, csl::NtoMPanner, csl::RemoteStream, csl::BufferStream, csl::LSoundFile, csl::GrainPlayer, csl::Panner, csl::RingBuffer, csl::Instrument, csl::VBAP, csl::IFFT, csl::SpatialSource, csl::BinauralPanner, csl::InOut, csl::Spatializer, csl::Mixer, csl::SpatialPanner, csl::RingBufferTap, csl::Convolver, csl::AmbisonicPanner, csl::Convolver2, csl::FFT, csl::BlockResizer, csl::DelayLine, csl::SimplePanner, csl::SimplePanner, and csl::Microphone.

Definition at line 726 of file CSL_Core.cpp.

References csl::kCopy, csl::kExpand, csl::kIgnore, and csl::logMsg().

Referenced by csl::DistanceSimulator::nextBuffer(), csl::RingBufferTap::nextBuffer(), csl::Mixer::nextBuffer(), csl::AmbisonicMixer::nextBuffer(), csl::SpatialSource::nextBuffer(), csl::BufferStream::nextBuffer(), csl::Controllable::pullInput(), csl::PAIO::test(), and csl::FileIO::writeNextBuffer().

virtual bool csl::UnitGenerator::isFixed ( )

inlinevirtualinherited

query whether I'm fixed (StaticVariable overrides this)

Reimplemented in csl::StaticVariable, and csl::BinaryOp.

Definition at line 271 of file CSL_Core.h.

void UnitGenerator::addOutput ( UnitGenerator * ugen )

inherited

add to or return the UGen vector of outputs

Definition at line 670 of file CSL_Core.cpp.

References csl::Buffer::allocateBuffers(), csl::CGestalt::blockSize(), csl::UnitGenerator::mNumOutputs, csl::UnitGenerator::mOutputCache, and csl::UnitGenerator::mOutputs.

Referenced by csl::Mixer::addInput(), csl::Controllable::addInput(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::AmbisonicEncoder::setInput(), and csl::IO::setRoot().

void UnitGenerator::removeOutput ( UnitGenerator * ugen )

inherited

Definition at line 680 of file CSL_Core.cpp.

References csl::UnitGenerator::mNumOutputs, and csl::UnitGenerator::mOutputs.

Referenced by csl::IO::clearRoot(), csl::AmbisonicEncoder::setInput(), csl::AmbisonicDecoder::~AmbisonicDecoder(), and csl::AmbisonicRotator::~AmbisonicRotator().

UGenVector csl::UnitGenerator::outputs ( )

inlineinherited

Definition at line 277 of file CSL_Core.h.

References csl::UnitGenerator::mOutputs.

virtual unsigned csl::UnitGenerator::numOutputs ( )

inlinevirtualinherited

Definition at line 278 of file CSL_Core.h.

References csl::UnitGenerator::mNumOutputs.

bool UnitGenerator::checkFanOut	(	Buffer &	outputBuffer	)
throw	(	CException
	)

inherited

check for fan-out and copy previous buffer; return true if fanning out

Definition at line 699 of file CSL_Core.cpp.

void UnitGenerator::handleFanOut	(	Buffer &	outputBuffer	)
throw	(	CException
	)

inherited

Definition at line 713 of file CSL_Core.cpp.

References csl_max.

virtual void csl::UnitGenerator::setValue ( sample theValue )

inlinevirtualinherited

set/get the value (not allowed in the abstract, useful for static values)

Reimplemented in csl::DynamicVariable, and csl::StaticVariable.

Definition at line 284 of file CSL_Core.h.

virtual sample csl::UnitGenerator::value ( )

inlinevirtualinherited

Reimplemented in csl::StaticVariable.

Definition at line 285 of file CSL_Core.h.

void UnitGenerator::zeroBuffer	(	Buffer &	outputBuffer,
		unsigned	outBufNum
	)

protectedinherited

utility method to zero out an outputBuffer

Definition at line 663 of file CSL_Core.cpp.

References csl::Buffer::buffer(), and csl::Buffer::mMonoBufferByteSize.

void Model::attachObserver ( Observer * o )

inherited

(possibly notify obersvers on my death)

register/remove observers

Definition at line 502 of file CGestalt.cpp.

References csl::logMsg(), csl::Observer::mKey, and csl::Observer::mPeriod.

Referenced by CSLMIDIComponent::CSLMIDIComponent(), and csl::SpatialPanner::setSpeakerLayout().

void Model::detachObserver ( Observer * o )

inherited

Definition at line 518 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpatialPanner::setSpeakerLayout(), and csl::SpatialPanner::~SpatialPanner().

void Model::changed ( void * argument )

inherited

this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map

Definition at line 540 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpeakerLayout::addSpeaker(), csl::MIDIIn::handleIncomingMidiMessage(), and csl::SpeakerLayout::setDefaultSpeakerLayout().

virtual int csl::Model::evaluate ( void * argument )

inlinevirtualinherited

Reimplemented in csl::MIDIIn.

Definition at line 270 of file CGestalt.h.

void Scalable::setScale ( UnitGenerator & scale )

inherited

set the receiver's scale member to a UGen or a float

Definition at line 1039 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_SCALE, and csl::logMsg().
