RingBuffer is the storage + a default reader. More...

#include <RingBuffer.h>

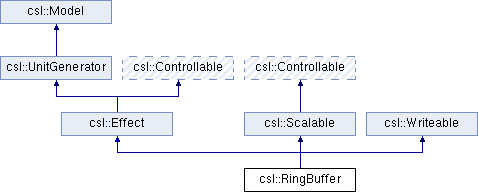

Inheritance diagram for csl::RingBuffer:

Public Member Functions
	RingBuffer ()
	Constructors. More...

	RingBuffer (unsigned int nmChannels, unsigned int nmFrames)

	RingBuffer (UnitGenerator &input, unsigned int nmChannels, unsigned int nmFrames)

unsigned	seekTo (int position) throw (CException)

void	setLoopStart (unsigned frame)
	These loop setters allow for variable buffer lengths by varying the points where the buffer writes. More...

void	setLoopEnd (unsigned frame)
	Calls the setLoopStart of it's tap. More...

void	nextBuffer (Buffer &outputBuffer) throw (CException)
	Calls the setLoopEnd of it's tap. More...

void	writeBuffer (Buffer &inputBuffer) throw (CException)
	Write a buffer of data into the ring buffer. More...

void	sumIntoBuffer (Buffer &inputBuffer) throw (CException)
	Do an adding write of data into the ring buffer. More...

void	destructiveNextBuffer (Buffer &outputBuffer) throw (CException)
	Read a buffer zeroing as you go. More...

void	writeBuffer (Buffer &inputBuffer, unsigned bufNum) throw (CException)
	write to the receiver More...

void	sumIntoBuffer (Buffer &inputBuffer, unsigned bufNum) throw (CException)

virtual bool	isActive ()
	am I active? More...

void	setInput (UnitGenerator &inp)
	set the receiver's input generator More...

void	setInline ()
	set the Effect to be inline More...

unsigned	frameRate ()

void	setFrameRate (unsigned rate)
	get/set the receiver's frame rate More...

virtual unsigned	numChannels ()

void	setNumChannels (unsigned ch)
	get/set the receiver's number of outputs More...

BufferCopyPolicy	copyPolicy ()

void	setCopyPolicy (BufferCopyPolicy ch)
	get/set the receiver's buffer copy policy More...

virtual void	nextBuffer (Buffer &outputBuffer, unsigned outBufNum) throw (CException)
	really compute the next buffer given an offset base channel; this is called by nextBuffer, possibly multiple times More...

virtual bool	isFixed ()
	query whether I'm fixed (StaticVariable overrides this) More...

void	addOutput (UnitGenerator *ugen)
	add to or return the UGen vector of outputs More...

void	removeOutput (UnitGenerator *ugen)

UGenVector	outputs ()

virtual unsigned	numOutputs ()

bool	checkFanOut (Buffer &outputBuffer) throw (CException)
	check for fan-out and copy previous buffer; return true if fanning out More...

void	handleFanOut (Buffer &outputBuffer) throw (CException)

virtual void	setValue (sample theValue)
	set/get the value (not allowed in the abstract, useful for static values) More...

virtual sample	value ()

virtual void	dump ()
	pretty-print the receiver More...

void	attachObserver (Observer *)
	(possibly notify obersvers on my death) More...

void	detachObserver (Observer *)

void	changed (void *argument)
	this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map More...

virtual int	evaluate (void *argument)

Port *	getPort (CSL_MAP_KEY name)

void	setScale (UnitGenerator &scale)
	set the receiver's scale member to a UGen or a float More...

void	setScale (float scale)

void	setOffset (UnitGenerator &offset)
	set the receiver's offset member to a UGen or a float More...

void	setOffset (float offset)

virtual void	trigger ()
	trigger passed on here More...

void	isScaled ()
	answer whether scale = 1 & offset = 0 More...

Public Attributes
unsigned	mCurrentWriteFrame
	state – users can manipulate my internal tap and buffer More...

Buffer	mBuffer

RingBufferTap	mTap
	internal tap so a RingBuffer can also be a a UnitGenerator More...

bool	isInline
	whether to use input or buffer as source More...

Protected Member Functions
void	pullInput (Buffer &outputBuffer) throw (CException)

void	pullInput (unsigned numFrames) throw (CException)
	trigger passed on here More...

void	pullInput (Port *thePort, unsigned numFrames) throw (CException)
	method to read the control values (in case they're dynamic). this sends nextBuffer() to the input. More...

void	pullInput (Port *thePort, Buffer &theBuffer) throw (CException)

virtual void	trigger ()
	trigger passed on here get the input port More...

Port *	inPort ()

virtual void	dump ()
	pretty-print the receiver's input/controls map More...

void	zeroBuffer (Buffer &outputBuffer, unsigned outBufNum)
	utility method to zero out an outputBuffer More...

void	addInput (CSL_MAP_KEY name, UnitGenerator &ugen)
	Plug in a unit generator to the named input slot. More...

void	addInput (CSL_MAP_KEY name, float value)
	Plug in a float to the named input slot. More...

Protected Attributes
unsigned	mTempCurrentWriteFrame
	Used in next buffer to save state between calls in the same block. More...

SampleBuffer	mInputPtr
	A pointer to my input's data. method to read the input value. More...

unsigned	mFrameRate
	trigger ignored here More...

unsigned	mNumChannels
	my "expected" number of output channels More...

BufferCopyPolicy	mCopyPolicy
	the policy I use if asked for more or fewer channels More...

UGenVector	mOutputs
	the vector of my output UGens More...

unsigned	mNumOutputs
	the number of outputs More...

Buffer *	mOutputCache
	my past output ring buffer (only used in case of fan-out) More...

unsigned	mSequence
	the highest-seen buffer seq number More...

PortMap	mInputs
	the map of my inputs or controls (used by the mix-in classes) More...

Friends
class	RingBufferTap
	Allow the RingBufferTap to access private members of this class. More...

Detailed Description

RingBuffer is the storage + a default reader.

Definition at line 56 of file RingBuffer.h.

Constructor & Destructor Documentation

RingBuffer::RingBuffer ( )

Constructors.

Definition at line 165 of file RingBuffer.cpp.

References mTap, and csl::RingBufferTap::setBuffer().

RingBuffer::RingBuffer	(	unsigned int	nmChannels,
		unsigned int	nmFrames
	)

Definition at line 171 of file RingBuffer.cpp.

References csl::Buffer::allocateBuffers(), mBuffer, mTap, and csl::RingBufferTap::setBuffer().

RingBuffer::RingBuffer	(	UnitGenerator &	input,
		unsigned int	nmChannels,
		unsigned int	nmFrames
	)

Definition at line 179 of file RingBuffer.cpp.

References csl::Buffer::allocateBuffers(), mBuffer, mTap, and csl::RingBufferTap::setBuffer().

Member Function Documentation

unsigned RingBuffer::seekTo	(	int	position	)
throw	(	CException
	)

Definition at line 215 of file RingBuffer.cpp.

void csl::RingBuffer::setLoopStart ( unsigned frame )

inline

These loop setters allow for variable buffer lengths by varying the points where the buffer writes.

Definition at line 73 of file RingBuffer.h.

References csl::RingBufferTap::setLoopStart().

void csl::RingBuffer::setLoopEnd ( unsigned frame )

inline

Calls the setLoopStart of it's tap.

Definition at line 74 of file RingBuffer.h.

References csl::RingBufferTap::setLoopEnd().

void RingBuffer::nextBuffer	(	Buffer &	outputBuffer	)
throw	(	CException
	)

virtual

Calls the setLoopEnd of it's tap.

Various flavours of next buffer. Also the nextBuffer(Buffer &) has to be implemented to be able to hold state of the currentWriteFrame. Otherwise every time it's called by the super nextBuffer the currentWriteFrame would be incremented more and more, leading to erroneous results. Read a buffer from the ring buffer

Reimplemented from csl::UnitGenerator.

Definition at line 189 of file RingBuffer.cpp.

References CSL_INPUT, and csl::Effect::pullInput().

void RingBuffer::writeBuffer	(	Buffer &	inputBuffer	)
throw	(	CException
	)

virtual

Write a buffer of data into the ring buffer.

Reimplemented from csl::Writeable.

Definition at line 201 of file RingBuffer.cpp.

References csl::Writeable::writeBuffer().

void RingBuffer::sumIntoBuffer	(	Buffer &	inputBuffer	)
throw	(	CException
	)

Do an adding write of data into the ring buffer.

Definition at line 207 of file RingBuffer.cpp.

void RingBuffer::destructiveNextBuffer	(	Buffer &	outputBuffer	)
throw	(	CException
	)

Read a buffer zeroing as you go.

Definition at line 197 of file RingBuffer.cpp.

void RingBuffer::writeBuffer	(	Buffer &	inputBuffer,
		unsigned	bufNum
	)
throw	(	CException
	)

virtual

write to the receiver

Reimplemented from csl::Writeable.

Definition at line 228 of file RingBuffer.cpp.

void RingBuffer::sumIntoBuffer	(	Buffer &	inputBuffer,
		unsigned	bufNum
	)
throw	(	CException
	)

Definition at line 262 of file RingBuffer.cpp.

bool Effect::isActive ( )

virtualinherited

am I active?

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::Joiner, and csl::Stereoverb.

Definition at line 1105 of file CSL_Core.cpp.

References CSL_INPUT, csl::Port::isActive(), and csl::Controllable::mInputs.

Referenced by csl::Stereoverb::isActive().

void Effect::setInput ( UnitGenerator & inp )

inherited

set the receiver's input generator

Definition at line 1112 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_INPUT, csl::Effect::isInline, and csl::logMsg().

void csl::Effect::setInline ( )

inlineinherited

set the Effect to be inline

Definition at line 476 of file CSL_Core.h.

void Effect::pullInput	(	Buffer &	outputBuffer	)
throw	(	CException
	)

protectedinherited

Definition at line 1122 of file CSL_Core.cpp.

References CSL_INPUT, csl::logMsg(), and csl::Controllable::pullInput().

Referenced by csl::Convolver2::nextBuffer(), csl::Convolver::nextBuffer(), csl::InOut::nextBuffer(), nextBuffer(), csl::Panner::nextBuffer(), csl::FIR::nextBuffer(), csl::DynamicVariable::nextBuffer(), csl::Filter::nextBuffer(), csl::NtoMPanner::nextBuffer(), csl::StereoWidth::nextBuffer(), csl::Biquad::nextBuffer(), and SAFliter::nextBuffer().

void Effect::pullInput	(	unsigned	numFrames	)
throw	(	CException
	)

protectedinherited

trigger passed on here

Definition at line 1137 of file CSL_Core.cpp.

References csl::Buffer::buffer(), CSL_INPUT, csl::logMsg(), csl::Port::mBuffer, and csl::Controllable::pullInput().

void Controllable::pullInput	(	Port *	thePort,
		unsigned	numFrames
	)
throw	(	CException
	)

protectedinherited

method to read the control values (in case they're dynamic). this sends nextBuffer() to the input.

Definition at line 847 of file CSL_Core.cpp.

References csl::kSamples, csl::logMsg(), csl::Buffer::mIsPopulated, csl::Buffer::mNumFrames, csl::Buffer::mType, csl::UnitGenerator::nextBuffer(), and csl::Buffer::zeroBuffers().

Referenced by csl::Panner::nextBuffer(), csl::NtoMPanner::nextBuffer(), and csl::Effect::pullInput().

void Controllable::pullInput	(	Port *	thePort,
		Buffer &	theBuffer
	)
throw	(	CException
	)

protectedinherited

Definition at line 879 of file CSL_Core.cpp.

References csl::UnitGenerator::nextBuffer().

void Effect::trigger ( void )

protectedvirtualinherited

trigger passed on here get the input port

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::Joiner.

Definition at line 1148 of file CSL_Core.cpp.

References CSL_INPUT, and csl::Controllable::mInputs.

Port* csl::Effect::inPort ( )

inlineprotectedinherited

Definition at line 485 of file CSL_Core.h.

References CSL_INPUT.

Referenced by csl::BinaryOp::dump(), and csl::BinaryOp::inputIsFixed().

unsigned csl::UnitGenerator::frameRate ( )

inlineinherited

Definition at line 249 of file CSL_Core.h.

References csl::UnitGenerator::mFrameRate.

Referenced by csl::CASoundFile::dump(), csl::Abst_SoundFile::dump(), and csl::SoundCue::dump().

void csl::UnitGenerator::setFrameRate ( unsigned rate )

inlineinherited

get/set the receiver's frame rate

Definition at line 250 of file CSL_Core.h.

References csl::UnitGenerator::mFrameRate.

virtual unsigned csl::UnitGenerator::numChannels ( )

inlinevirtualinherited

Reimplemented in csl::Splitter, and csl::Stereoverb.

Definition at line 252 of file CSL_Core.h.

References csl::UnitGenerator::mNumChannels.

Referenced by csl::AmbisonicMixer::addInput(), csl::BlockResizer::BlockResizer(), csl::Port::checkBuffer(), csl::Effect::Effect(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::Mixer::nextBuffer(), csl::Convolver2::setIRFile(), csl::Convolver::setIRFile(), and csl::SpatialSource::SpatialSource().

void csl::UnitGenerator::setNumChannels ( unsigned ch )

inlineinherited

get/set the receiver's number of outputs

Definition at line 253 of file CSL_Core.h.

References csl::UnitGenerator::mNumChannels.

Referenced by csl::BinauralPanner::BinauralPanner(), csl::Spatializer::Spatializer(), csl::VBAP::speakerLayoutChanged(), and csl::VBAP::VBAP().

BufferCopyPolicy csl::UnitGenerator::copyPolicy ( )

inlineinherited

Definition at line 255 of file CSL_Core.h.

References csl::UnitGenerator::mCopyPolicy.

void csl::UnitGenerator::setCopyPolicy ( BufferCopyPolicy ch )

inlineinherited

get/set the receiver's buffer copy policy

Definition at line 256 of file CSL_Core.h.

References csl::UnitGenerator::mCopyPolicy.

Referenced by csl::AmbisonicPanner::AmbisonicPanner(), csl::BinauralPanner::BinauralPanner(), csl::AmbisonicUnitGenerator::initOrder(), csl::Noise::Noise(), csl::PinkNoise::PinkNoise(), csl::Spatializer::Spatializer(), and csl::VBAP::VBAP().

void UnitGenerator::nextBuffer	(	Buffer &	outputBuffer,
		unsigned	outBufNum
	)
throw	(	CException
	)

virtualinherited

really compute the next buffer given an offset base channel; this is called by nextBuffer, possibly multiple times

Reimplemented in csl::Joiner, csl::Splitter, csl::FanOut, SAFliter, csl::RandEnvelope, csl::Moog, csl::AmbisonicDecoder, csl::Biquad, csl::Impulse, csl::Square, csl::AmbisonicEncoder, csl::Sawtooth, csl::FSine, csl::MulOp, csl::Envelope, csl::Filter, csl::Sine, csl::DynamicVariable, csl::AmbisonicRotator, csl::BufferStream, csl::CompOrCacheOscillator, csl::AddOp, csl::FIR, csl::WavetableOscillator, csl::PinkNoise, csl::VBAP, csl::SineAsScaled, csl::SpatialSource, csl::LineSegment, csl::StaticVariable, csl::AmbisonicMixer, csl::WhiteNoise, csl::SineAsPhased, csl::SpatialPanner, csl::Window, csl::RingBufferTap, csl::BinaryOp, csl::Freeverb, csl::KarplusString, csl::Clipper, csl::Lorenz, csl::SimpleSine, csl::DistanceSimulator, and csl::WaveShaper.

Definition at line 755 of file CSL_Core.cpp.

virtual bool csl::UnitGenerator::isFixed ( )

inlinevirtualinherited

query whether I'm fixed (StaticVariable overrides this)

Reimplemented in csl::StaticVariable, and csl::BinaryOp.

Definition at line 271 of file CSL_Core.h.

void UnitGenerator::addOutput ( UnitGenerator * ugen )

inherited

add to or return the UGen vector of outputs

Definition at line 670 of file CSL_Core.cpp.

References csl::Buffer::allocateBuffers(), csl::CGestalt::blockSize(), csl::UnitGenerator::mNumOutputs, csl::UnitGenerator::mOutputCache, and csl::UnitGenerator::mOutputs.

Referenced by csl::Mixer::addInput(), csl::Controllable::addInput(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::AmbisonicEncoder::setInput(), and csl::IO::setRoot().

void UnitGenerator::removeOutput ( UnitGenerator * ugen )

inherited

Definition at line 680 of file CSL_Core.cpp.

References csl::UnitGenerator::mNumOutputs, and csl::UnitGenerator::mOutputs.

Referenced by csl::IO::clearRoot(), csl::AmbisonicEncoder::setInput(), csl::AmbisonicDecoder::~AmbisonicDecoder(), and csl::AmbisonicRotator::~AmbisonicRotator().

UGenVector csl::UnitGenerator::outputs ( )

inlineinherited

Definition at line 277 of file CSL_Core.h.

References csl::UnitGenerator::mOutputs.

virtual unsigned csl::UnitGenerator::numOutputs ( )

inlinevirtualinherited

Definition at line 278 of file CSL_Core.h.

References csl::UnitGenerator::mNumOutputs.

bool UnitGenerator::checkFanOut	(	Buffer &	outputBuffer	)
throw	(	CException
	)

inherited

check for fan-out and copy previous buffer; return true if fanning out

Definition at line 699 of file CSL_Core.cpp.

void UnitGenerator::handleFanOut	(	Buffer &	outputBuffer	)
throw	(	CException
	)

inherited

Definition at line 713 of file CSL_Core.cpp.

References csl_max.

virtual void csl::UnitGenerator::setValue ( sample theValue )

inlinevirtualinherited

set/get the value (not allowed in the abstract, useful for static values)

Reimplemented in csl::DynamicVariable, and csl::StaticVariable.

Definition at line 284 of file CSL_Core.h.

virtual sample csl::UnitGenerator::value ( )

inlinevirtualinherited

Reimplemented in csl::StaticVariable.

Definition at line 285 of file CSL_Core.h.

void UnitGenerator::dump ( void )

virtualinherited

pretty-print the receiver

Reimplemented in csl::RandEnvelope, csl::SumOfSines, csl::SoundCue, csl::Abst_SoundFile, csl::Filter, csl::Envelope, csl::BufferStream, csl::VBAP, csl::SineAsScaled, csl::LineSegment, csl::SpatialSource, csl::SineAsPhased, csl::Mixer, csl::Window, csl::KarplusString, csl::Oscillator, csl::AmbisonicPanner, csl::BinaryOp, csl::Lorenz, csl::Clipper, csl::Noise, and csl::CASoundFile.

Definition at line 693 of file CSL_Core.cpp.

References csl::logMsg(), and csl::UnitGenerator::mOutputs.

Referenced by csl::Noise::dump(), csl::Clipper::dump(), csl::Filter::dump(), csl::Port::dump(), dumpTest(), and testSimpleSines().

void Controllable::dump ( void )

protectedvirtualinherited

pretty-print the receiver's input/controls map

Reimplemented in csl::RandEnvelope, csl::SumOfSines, csl::Abst_SoundFile, csl::Filter, csl::Envelope, csl::SineAsScaled, csl::SpatialSource, csl::SineAsPhased, csl::Mixer, csl::KarplusString, csl::Oscillator, csl::BinaryOp, csl::Clipper, csl::Noise, and csl::CASoundFile.

Definition at line 926 of file CSL_Core.cpp.

References CSL_FREQUENCY, CSL_INPUT, CSL_OFFSET, CSL_SCALE, csl::logMsg(), and csl::Controllable::mInputs.

Referenced by csl::Noise::dump(), csl::KarplusString::dump(), csl::Oscillator::dump(), csl::SineAsPhased::dump(), csl::SineAsScaled::dump(), csl::Envelope::dump(), csl::Filter::dump(), and csl::SumOfSines::dump().

void UnitGenerator::zeroBuffer	(	Buffer &	outputBuffer,
		unsigned	outBufNum
	)

protectedinherited

utility method to zero out an outputBuffer

Definition at line 663 of file CSL_Core.cpp.

References csl::Buffer::buffer(), and csl::Buffer::mMonoBufferByteSize.

void Model::attachObserver ( Observer * o )

inherited

(possibly notify obersvers on my death)

register/remove observers

Definition at line 502 of file CGestalt.cpp.

References csl::logMsg(), csl::Observer::mKey, and csl::Observer::mPeriod.

Referenced by CSLMIDIComponent::CSLMIDIComponent(), and csl::SpatialPanner::setSpeakerLayout().

void Model::detachObserver ( Observer * o )

inherited

Definition at line 518 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpatialPanner::setSpeakerLayout(), and csl::SpatialPanner::~SpatialPanner().

void Model::changed ( void * argument )

inherited

this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map

Definition at line 540 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpeakerLayout::addSpeaker(), csl::MIDIIn::handleIncomingMidiMessage(), and csl::SpeakerLayout::setDefaultSpeakerLayout().

virtual int csl::Model::evaluate ( void * argument )

inlinevirtualinherited

Reimplemented in csl::MIDIIn.

Definition at line 270 of file CGestalt.h.

Port * Controllable::getPort ( CSL_MAP_KEY name )

inherited

Definition at line 920 of file CSL_Core.cpp.

References csl::Controllable::mInputs.

Referenced by csl::FrequencyAmount::getFrequency(), and csl::VSTIO::getParameter().
