forward declaration More...

#include <CSL_Core.h>

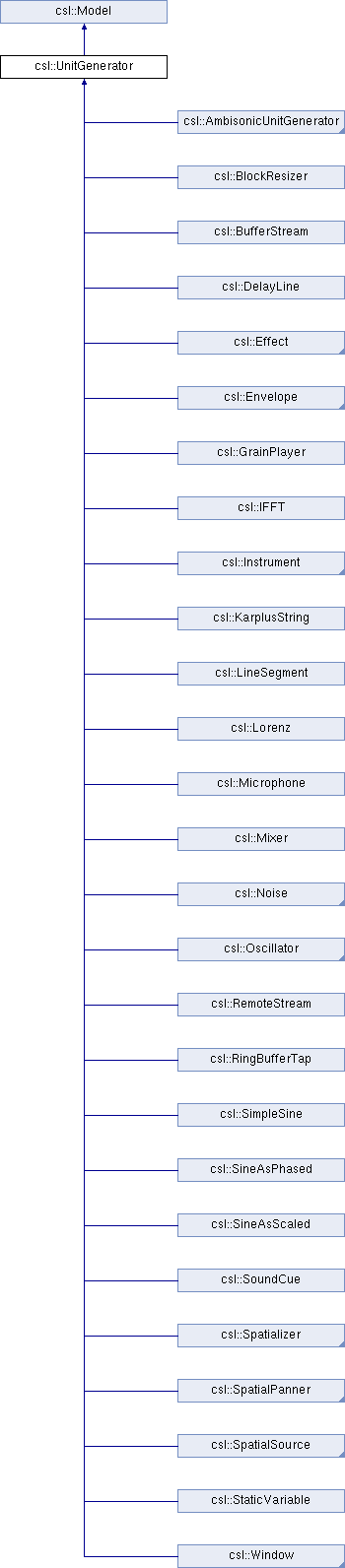

Inheritance diagram for csl::UnitGenerator:

Public Member Functions
	UnitGenerator (unsigned rate=CGestalt::frameRate(), unsigned chans=1)
	Constructors (UGens are mono by default) defaults to mono and maxBlockSize if not specified. More...

virtual	~UnitGenerator ()
	Destructor. More...

unsigned	frameRate ()

void	setFrameRate (unsigned rate)
	get/set the receiver's frame rate More...

virtual unsigned	numChannels ()

void	setNumChannels (unsigned ch)
	get/set the receiver's number of outputs More...

BufferCopyPolicy	copyPolicy ()

void	setCopyPolicy (BufferCopyPolicy ch)
	get/set the receiver's buffer copy policy More...

virtual void	nextBuffer (Buffer &outputBuffer) throw (CException)
	get a buffer of Frames – this is the core CSL "pull" function; the given buffer can be written into, and a changed() message is sent. More...

virtual void	nextBuffer (Buffer &outputBuffer, unsigned outBufNum) throw (CException)
	really compute the next buffer given an offset base channel; this is called by nextBuffer, possibly multiple times More...

virtual bool	isFixed ()
	query whether I'm fixed (StaticVariable overrides this) More...

virtual bool	isActive ()
	query whether I'm currently active (Envelopes can go inactive) More...

void	addOutput (UnitGenerator *ugen)
	add to or return the UGen vector of outputs More...

void	removeOutput (UnitGenerator *ugen)

UGenVector	outputs ()

virtual unsigned	numOutputs ()

bool	checkFanOut (Buffer &outputBuffer) throw (CException)
	check for fan-out and copy previous buffer; return true if fanning out More...

void	handleFanOut (Buffer &outputBuffer) throw (CException)

virtual void	setValue (sample theValue)
	set/get the value (not allowed in the abstract, useful for static values) More...

virtual sample	value ()

virtual void	dump ()
	pretty-print the receiver More...

virtual void	trigger ()

void	attachObserver (Observer *)
	(possibly notify obersvers on my death) More...

void	detachObserver (Observer *)

void	changed (void *argument)
	this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map More...

virtual int	evaluate (void *argument)

Protected Member Functions
void	zeroBuffer (Buffer &outputBuffer, unsigned outBufNum)
	utility method to zero out an outputBuffer More...

Protected Attributes
unsigned	mFrameRate
	trigger ignored here More...

unsigned	mNumChannels
	my "expected" number of output channels More...

BufferCopyPolicy	mCopyPolicy
	the policy I use if asked for more or fewer channels More...

UGenVector	mOutputs
	the vector of my output UGens More...

unsigned	mNumOutputs
	the number of outputs More...

Buffer *	mOutputCache
	my past output ring buffer (only used in case of fan-out) More...

unsigned	mSequence
	the highest-seen buffer seq number More...

Detailed Description

forward declaration

UnitGenerator – the core of CSL; all unit generators inherit from this class.

These have members for their sample rate and number of channels, and know their outputs. The main operation is the nextBuffer() method, which is overridden in many of the subclasses.

If more than 1 output is used, these can handle fan-out automatically, either synchronous (as in loops in a graph) or async (as in separate call-back threads). The mOutputCache RingBuffer may hold some large number of past samples, and can use nextBuffer() to do n-way fan-out either synchronously or with differing buffer sizes or callback rates.

UnitGenerator inherits from Model, meaning that it has to send this->changed((void *) dataBuffer) from within its nextBuffer method so that dependent objects (like signal views) can get notification when it computes samples. This mechanism could also be used for signal flow.

Definition at line 241 of file CSL_Core.h.

Constructor & Destructor Documentation

UnitGenerator::UnitGenerator	(	unsigned	rate = `CGestalt::frameRate()`,
		unsigned	chans = `1`
	)

Constructors (UGens are mono by default) defaults to mono and maxBlockSize if not specified.

Destructor.

Definition at line 647 of file CSL_Core.cpp.

UnitGenerator::~UnitGenerator ( )

virtual

Destructor.

Definition at line 659 of file CSL_Core.cpp.

Member Function Documentation

unsigned csl::UnitGenerator::frameRate ( )

inline

Definition at line 249 of file CSL_Core.h.

References mFrameRate.

Referenced by csl::CASoundFile::dump(), csl::Abst_SoundFile::dump(), and csl::SoundCue::dump().

void csl::UnitGenerator::setFrameRate ( unsigned rate )

inline

get/set the receiver's frame rate

Definition at line 250 of file CSL_Core.h.

References mFrameRate.

virtual unsigned csl::UnitGenerator::numChannels ( )

inlinevirtual

Reimplemented in csl::Splitter, and csl::Stereoverb.

Definition at line 252 of file CSL_Core.h.

References mNumChannels.

Referenced by csl::AmbisonicMixer::addInput(), csl::BlockResizer::BlockResizer(), csl::Port::checkBuffer(), csl::Effect::Effect(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::Mixer::nextBuffer(), csl::Convolver2::setIRFile(), csl::Convolver::setIRFile(), and csl::SpatialSource::SpatialSource().

void csl::UnitGenerator::setNumChannels ( unsigned ch )

inline

get/set the receiver's number of outputs

Definition at line 253 of file CSL_Core.h.

References mNumChannels.

Referenced by csl::BinauralPanner::BinauralPanner(), csl::Spatializer::Spatializer(), csl::VBAP::speakerLayoutChanged(), and csl::VBAP::VBAP().

BufferCopyPolicy csl::UnitGenerator::copyPolicy ( )

inline

Definition at line 255 of file CSL_Core.h.

References mCopyPolicy.

void csl::UnitGenerator::setCopyPolicy ( BufferCopyPolicy ch )

inline

get/set the receiver's buffer copy policy

Definition at line 256 of file CSL_Core.h.

References mCopyPolicy.

Referenced by csl::AmbisonicPanner::AmbisonicPanner(), csl::BinauralPanner::BinauralPanner(), csl::AmbisonicUnitGenerator::initOrder(), csl::Noise::Noise(), csl::PinkNoise::PinkNoise(), csl::Spatializer::Spatializer(), and csl::VBAP::VBAP().

void UnitGenerator::nextBuffer	(	Buffer &	outputBuffer	)
throw	(	CException
	)

virtual

get a buffer of Frames – this is the core CSL "pull" function; the given buffer can be written into, and a changed() message is sent.

Reimplemented in csl::Joiner, csl::Splitter, csl::FanOut, csl::SoundCue, csl::Stereoverb, csl::StereoWidth, csl::Abst_SoundFile, csl::NtoMPanner, csl::RemoteStream, csl::BufferStream, csl::LSoundFile, csl::GrainPlayer, csl::Panner, csl::RingBuffer, csl::Instrument, csl::VBAP, csl::IFFT, csl::SpatialSource, csl::BinauralPanner, csl::InOut, csl::Spatializer, csl::Mixer, csl::SpatialPanner, csl::RingBufferTap, csl::Convolver, csl::AmbisonicPanner, csl::Convolver2, csl::FFT, csl::BlockResizer, csl::DelayLine, csl::SimplePanner, csl::SimplePanner, and csl::Microphone.

Definition at line 726 of file CSL_Core.cpp.

References csl::kCopy, csl::kExpand, csl::kIgnore, and csl::logMsg().

Referenced by csl::DistanceSimulator::nextBuffer(), csl::RingBufferTap::nextBuffer(), csl::Mixer::nextBuffer(), csl::AmbisonicMixer::nextBuffer(), csl::SpatialSource::nextBuffer(), csl::BufferStream::nextBuffer(), csl::Controllable::pullInput(), csl::PAIO::test(), and csl::FileIO::writeNextBuffer().

void UnitGenerator::nextBuffer	(	Buffer &	outputBuffer,
		unsigned	outBufNum
	)
throw	(	CException
	)

virtual

really compute the next buffer given an offset base channel; this is called by nextBuffer, possibly multiple times

Reimplemented in csl::Joiner, csl::Splitter, csl::FanOut, SAFliter, csl::RandEnvelope, csl::Moog, csl::AmbisonicDecoder, csl::Biquad, csl::Impulse, csl::Square, csl::AmbisonicEncoder, csl::Sawtooth, csl::FSine, csl::MulOp, csl::Envelope, csl::Filter, csl::Sine, csl::DynamicVariable, csl::AmbisonicRotator, csl::BufferStream, csl::CompOrCacheOscillator, csl::AddOp, csl::FIR, csl::WavetableOscillator, csl::PinkNoise, csl::VBAP, csl::SineAsScaled, csl::SpatialSource, csl::LineSegment, csl::StaticVariable, csl::AmbisonicMixer, csl::WhiteNoise, csl::SineAsPhased, csl::SpatialPanner, csl::Window, csl::RingBufferTap, csl::BinaryOp, csl::Freeverb, csl::KarplusString, csl::Clipper, csl::Lorenz, csl::SimpleSine, csl::DistanceSimulator, and csl::WaveShaper.

Definition at line 755 of file CSL_Core.cpp.

virtual bool csl::UnitGenerator::isFixed ( )

inlinevirtual

query whether I'm fixed (StaticVariable overrides this)

Reimplemented in csl::StaticVariable, and csl::BinaryOp.

Definition at line 271 of file CSL_Core.h.

virtual bool csl::UnitGenerator::isActive ( )

inlinevirtual

query whether I'm currently active (Envelopes can go inactive)

Reimplemented in csl::Joiner, csl::Effect, csl::RandEnvelope, csl::SoundCue, csl::Abst_SoundFile, csl::Stereoverb, csl::Envelope, csl::Instrument, csl::Mixer, and csl::KarplusString.

Definition at line 273 of file CSL_Core.h.

Referenced by csl::Instrument::isActive(), csl::Port::isActive(), csl::Mixer::nextBuffer(), csl::BinauralPanner::nextBuffer(), csl::AmbisonicMixer::nextBuffer(), and csl::VBAP::nextBuffer().

void UnitGenerator::addOutput ( UnitGenerator * ugen )

add to or return the UGen vector of outputs

Definition at line 670 of file CSL_Core.cpp.

References csl::Buffer::allocateBuffers(), csl::CGestalt::blockSize(), mNumOutputs, mOutputCache, and mOutputs.

Referenced by csl::Mixer::addInput(), csl::Controllable::addInput(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::AmbisonicEncoder::setInput(), and csl::IO::setRoot().

void UnitGenerator::removeOutput ( UnitGenerator * ugen )

Definition at line 680 of file CSL_Core.cpp.

References mNumOutputs, and mOutputs.

Referenced by csl::IO::clearRoot(), csl::AmbisonicEncoder::setInput(), csl::AmbisonicDecoder::~AmbisonicDecoder(), and csl::AmbisonicRotator::~AmbisonicRotator().

UGenVector csl::UnitGenerator::outputs ( )

inline

Definition at line 277 of file CSL_Core.h.

References mOutputs.

virtual unsigned csl::UnitGenerator::numOutputs ( )

inlinevirtual

Definition at line 278 of file CSL_Core.h.

References mNumOutputs.

bool UnitGenerator::checkFanOut	(	Buffer &	outputBuffer	)
throw	(	CException
	)

check for fan-out and copy previous buffer; return true if fanning out

Definition at line 699 of file CSL_Core.cpp.

void UnitGenerator::handleFanOut	(	Buffer &	outputBuffer	)
throw	(	CException
	)

Definition at line 713 of file CSL_Core.cpp.

References csl_max.

virtual void csl::UnitGenerator::setValue ( sample theValue )

inlinevirtual

set/get the value (not allowed in the abstract, useful for static values)

Reimplemented in csl::DynamicVariable, and csl::StaticVariable.

Definition at line 284 of file CSL_Core.h.

virtual sample csl::UnitGenerator::value ( )

inlinevirtual

Reimplemented in csl::StaticVariable.

Definition at line 285 of file CSL_Core.h.

void UnitGenerator::dump ( void )

virtual

pretty-print the receiver

Reimplemented in csl::RandEnvelope, csl::SumOfSines, csl::SoundCue, csl::Abst_SoundFile, csl::Filter, csl::Envelope, csl::BufferStream, csl::VBAP, csl::SineAsScaled, csl::LineSegment, csl::SpatialSource, csl::SineAsPhased, csl::Mixer, csl::Window, csl::KarplusString, csl::Oscillator, csl::AmbisonicPanner, csl::BinaryOp, csl::Lorenz, csl::Clipper, csl::Noise, and csl::CASoundFile.

Definition at line 693 of file CSL_Core.cpp.

References csl::logMsg(), and mOutputs.

Referenced by csl::Noise::dump(), csl::Clipper::dump(), csl::Filter::dump(), csl::Port::dump(), dumpTest(), and testSimpleSines().

virtual void csl::UnitGenerator::trigger ( void )

inlinevirtual

Reimplemented in csl::Joiner, csl::Effect, csl::RandEnvelope, csl::SoundCue, csl::Abst_SoundFile, csl::Envelope, csl::LineSegment, and csl::KarplusString.

Definition at line 288 of file CSL_Core.h.

Referenced by csl::Instrument::play(), csl::Instrument::release(), and csl::Port::trigger().

void UnitGenerator::zeroBuffer	(	Buffer &	outputBuffer,
		unsigned	outBufNum
	)

protected

utility method to zero out an outputBuffer

Definition at line 663 of file CSL_Core.cpp.

References csl::Buffer::buffer(), and csl::Buffer::mMonoBufferByteSize.

void Model::attachObserver ( Observer * o )

inherited

(possibly notify obersvers on my death)

register/remove observers

Definition at line 502 of file CGestalt.cpp.

References csl::logMsg(), csl::Observer::mKey, and csl::Observer::mPeriod.

Referenced by CSLMIDIComponent::CSLMIDIComponent(), and csl::SpatialPanner::setSpeakerLayout().

void Model::detachObserver ( Observer * o )

inherited

Definition at line 518 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpatialPanner::setSpeakerLayout(), and csl::SpatialPanner::~SpatialPanner().

void Model::changed ( void * argument )

inherited

this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map

Definition at line 540 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpeakerLayout::addSpeaker(), csl::MIDIIn::handleIncomingMidiMessage(), and csl::SpeakerLayout::setDefaultSpeakerLayout().

virtual int csl::Model::evaluate ( void * argument )

inlinevirtualinherited

Reimplemented in csl::MIDIIn.

Definition at line 270 of file CGestalt.h.

Member Data Documentation

unsigned csl::UnitGenerator::mFrameRate

protected

trigger ignored here

the frame rate – initialized to be the default by the constructor

Definition at line 288 of file CSL_Core.h.

Referenced by csl::Abst_SoundFile::convertRate(), csl::Lorenz::dump(), csl::Abst_SoundFile::durationInSecs(), frameRate(), csl::Filter::init(), csl::CASoundFile::initFromSndfile(), csl::JSoundFile::initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::RandEnvelope::nextSegment(), csl::SquareBL::nextWaveInto(), csl::SumOfSines::nextWaveInto(), csl::DelayLine::setDelayTime(), setFrameRate(), csl::Abst_SoundFile::setStartSec(), csl::Abst_SoundFile::setStopSec(), csl::Butter::setupCoeffs(), csl::Formant::setupCoeffs(), csl::Notch::setupCoeffs(), and csl::Moog::setupCoeffs().

unsigned csl::UnitGenerator::mNumChannels

protected

my "expected" number of output channels

Definition at line 292 of file CSL_Core.h.

Referenced by csl::AmbisonicMixer::addInput(), csl::Mixer::allocateOpBuffer(), csl::AmbisonicDecoder::asProjection(), csl::AmbisonicDecoder::asPseudoInverse(), csl::BlockResizer::BlockResizer(), csl::Abst_SoundFile::channels(), csl::Abst_SoundFile::checkBuffer(), csl::FMInstrument::FMInstrument(), csl::GrainPlayer::GrainPlayer(), csl::AdditiveInstrument::init(), csl::JSoundFile::initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::AmbisonicMixer::initialize(), csl::SndFileInstrument::initialize(), csl::AmbisonicRotator::initialize(), csl::AmbisonicEncoder::initialize(), csl::AmbisonicDecoder::initialize(), csl::AmbisonicUnitGenerator::initOrder(), csl::RemoteStream::initPacket(), csl::Joiner::isActive(), csl::Joiner::Joiner(), csl::AmbisonicDecoder::makeInPhase(), csl::AmbisonicDecoder::makeMaxRE(), csl::Abst_SoundFile::mergeToMono(), csl::Mixer::Mixer(), numChannels(), csl::Panner::Panner(), csl::CASoundFile::readBufferFromFile(), csl::JSoundFile::readBufferFromFile(), csl::LSoundFile::readBufferFromFile(), csl::RemoteStream::RemoteStream(), setNumChannels(), csl::WavetableOscillator::setWaveform(), csl::Joiner::trigger(), and csl::AmbisonicRotator::~AmbisonicRotator().

BufferCopyPolicy csl::UnitGenerator::mCopyPolicy

protected

the policy I use if asked for more or fewer channels

Definition at line 293 of file CSL_Core.h.

Referenced by copyPolicy(), and setCopyPolicy().

UGenVector csl::UnitGenerator::mOutputs

protected

the vector of my output UGens

Definition at line 294 of file CSL_Core.h.

Referenced by addOutput(), dump(), outputs(), and removeOutput().

unsigned csl::UnitGenerator::mNumOutputs

protected

the number of outputs

Definition at line 295 of file CSL_Core.h.

Referenced by addOutput(), numOutputs(), and removeOutput().

Buffer* csl::UnitGenerator::mOutputCache

protected

my past output ring buffer (only used in case of fan-out)

Definition at line 296 of file CSL_Core.h.

Referenced by addOutput().

unsigned csl::UnitGenerator::mSequence

protected

the highest-seen buffer seq number

Definition at line 297 of file CSL_Core.h.

The documentation for this class was generated from the following files:

/Content/Code/CSL6/Src/Kernel/CSL_Core.h
/Content/Code/CSL6/Src/Kernel/CSL_Core.cpp
