FrequencyAmount – mix-in class with frequency and amount (BW) control inputs (may be constants or generators). amount (probably 0..1) is a generalised placeholder for bandwidth, resonance or radius, according to filter type or could equally be used as a kind of x,y location in the frequency domain. More...
#include <Filters.h>

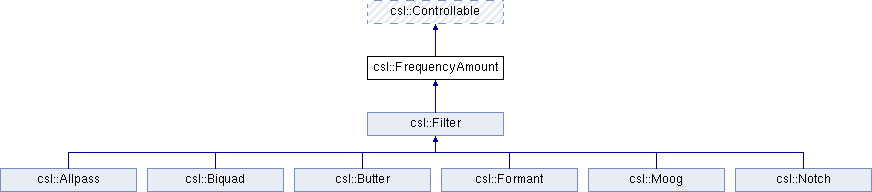

Inheritance diagram for csl::FrequencyAmount:
Public Member Functions | |
| FrequencyAmount () | |
| Constructors. More... | |
| ~FrequencyAmount () | |
| Destructor. More... | |
| void | setFrequency (UnitGenerator &frequency) |
| set the receiver's frequency to a UGen or a float More... | |
| void | setFrequency (float frequency) |
| float | getFrequency () |
| void | setAmount (UnitGenerator &amount) |
| set the receiver's amount to a UGen or a float More... | |
| void | setAmount (float amount) |
| Port * | getPort (CSL_MAP_KEY name) |
Protected Member Functions | |
| void | addInput (CSL_MAP_KEY name, UnitGenerator &ugen) |
| Plug in a unit generator to the named input slot. More... | |
| void | addInput (CSL_MAP_KEY name, float value) |
| Plug in a float to the named input slot. More... | |
| void | pullInput (Port *thePort, unsigned numFrames) throw (CException) |
| method to read the control values (in case they're dynamic). this sends nextBuffer() to the input. More... | |
| void | pullInput (Port *thePort, Buffer &theBuffer) throw (CException) |
| virtual void | dump () |
| pretty-print the receiver's input/controls map More... | |
Protected Attributes | |
| PortMap | mInputs |
| the map of my inputs or controls (used by the mix-in classes) More... | |
Detailed Description
FrequencyAmount – mix-in class with frequency and amount (BW) control inputs (may be constants or generators). amount (probably 0..1) is a generalised placeholder for bandwidth, resonance or radius, according to filter type or could equally be used as a kind of x,y location in the frequency domain.
Constructor & Destructor Documentation
| FrequencyAmount::FrequencyAmount | ( | ) |
| FrequencyAmount::~FrequencyAmount | ( | ) |
Destructor.
Definition at line 23 of file Filters.cpp.
Member Function Documentation
| void FrequencyAmount::setFrequency | ( | UnitGenerator & | frequency | ) |
set the receiver's frequency to a UGen or a float
Definition at line 27 of file Filters.cpp.
References csl::Controllable::addInput(), CSL_FILTER_FREQUENCY, and csl::logMsg().
Referenced by csl::Allpass::Allpass(), csl::Butter::Butter(), csl::Formant::Formant(), csl::Moog::Moog(), csl::Notch::Notch(), csl::VSTIO::setParameter(), and testStereoverb().
| void FrequencyAmount::setFrequency | ( | float | frequency | ) |
Definition at line 34 of file Filters.cpp.
References csl::Controllable::addInput(), CSL_FILTER_FREQUENCY, and csl::logMsg().
| float FrequencyAmount::getFrequency | ( | ) |
Definition at line 41 of file Filters.cpp.
References CSL_FILTER_FREQUENCY, and csl::Controllable::getPort().
| void FrequencyAmount::setAmount | ( | UnitGenerator & | amount | ) |
set the receiver's amount to a UGen or a float
Definition at line 45 of file Filters.cpp.
References csl::Controllable::addInput(), CSL_FILTER_AMOUNT, and csl::logMsg().
Referenced by csl::Allpass::Allpass(), csl::Butter::Butter(), csl::Formant::Formant(), csl::Moog::Moog(), and csl::Notch::Notch().
| void FrequencyAmount::setAmount | ( | float | amount | ) |
Definition at line 52 of file Filters.cpp.
References csl::Controllable::addInput(), CSL_FILTER_AMOUNT, and csl::logMsg().
|
inherited |
Definition at line 920 of file CSL_Core.cpp.
References csl::Controllable::mInputs.
Referenced by getFrequency(), and csl::VSTIO::getParameter().
|
protectedinherited |
Plug in a unit generator to the named input slot.
Definition at line 894 of file CSL_Core.cpp.
References csl::UnitGenerator::addOutput(), csl::logMsg(), and csl::Controllable::mInputs.
Referenced by csl::Joiner::addInput(), csl::BinaryOp::BinaryOp(), csl::DistanceSimulator::DistanceSimulator(), csl::Effect::Effect(), csl::InOut::InOut(), csl::Joiner::Joiner(), csl::NtoMPanner::NtoMPanner(), csl::Panner::Panner(), csl::Phased::Phased(), csl::Scalable::Scalable(), setAmount(), setFrequency(), csl::Phased::setFrequency(), csl::Effect::setInput(), csl::Scalable::setOffset(), csl::Panner::setPosition(), csl::Abst_SoundFile::setRate(), csl::Scalable::setScale(), csl::NtoMPanner::setX(), csl::NtoMPanner::setY(), and csl::SpatialSource::SpatialSource().
|
protectedinherited |
Plug in a float to the named input slot.
Definition at line 906 of file CSL_Core.cpp.
References csl::logMsg(), csl::Controllable::mInputs, and csl::Port::mValue.
|
protectedinherited | ||||||||||||||||||||
method to read the control values (in case they're dynamic). this sends nextBuffer() to the input.
Definition at line 847 of file CSL_Core.cpp.
References csl::kSamples, csl::logMsg(), csl::Buffer::mIsPopulated, csl::Buffer::mNumFrames, csl::Buffer::mType, csl::UnitGenerator::nextBuffer(), and csl::Buffer::zeroBuffers().
Referenced by csl::Panner::nextBuffer(), csl::NtoMPanner::nextBuffer(), and csl::Effect::pullInput().
|
protectedinherited | ||||||||||||||||||||
Definition at line 879 of file CSL_Core.cpp.
References csl::UnitGenerator::nextBuffer().
|
protectedvirtualinherited |
pretty-print the receiver's input/controls map
Reimplemented in csl::RandEnvelope, csl::SumOfSines, csl::Abst_SoundFile, csl::Filter, csl::Envelope, csl::SineAsScaled, csl::SpatialSource, csl::SineAsPhased, csl::Mixer, csl::KarplusString, csl::Oscillator, csl::BinaryOp, csl::Clipper, csl::Noise, and csl::CASoundFile.
Definition at line 926 of file CSL_Core.cpp.
References CSL_FREQUENCY, CSL_INPUT, CSL_OFFSET, CSL_SCALE, csl::logMsg(), and csl::Controllable::mInputs.
Referenced by csl::Noise::dump(), csl::KarplusString::dump(), csl::Oscillator::dump(), csl::SineAsPhased::dump(), csl::SineAsScaled::dump(), csl::Envelope::dump(), csl::Filter::dump(), and csl::SumOfSines::dump().
Member Data Documentation
|
protectedinherited |
the map of my inputs or controls (used by the mix-in classes)
Definition at line 378 of file CSL_Core.h.
Referenced by csl::Controllable::addInput(), csl::BinaryOp::dump(), csl::Controllable::dump(), csl::Controllable::getPort(), csl::Biquad::incrBoost(), csl::Biquad::incrFrq(), csl::Effect::isActive(), csl::Joiner::isActive(), csl::SquareBL::nextWaveInto(), csl::BinaryOp::operandIsFixed(), csl::Phased::Phased(), csl::DistanceSimulator::positionChanged(), csl::Scalable::Scalable(), csl::Biquad::setBoost(), csl::Biquad::setFrq(), csl::BinaryOp::setOperand(), csl::Abst_SoundFile::setRate(), csl::Butter::setupCoeffs(), csl::Formant::setupCoeffs(), csl::Notch::setupCoeffs(), csl::Allpass::setupCoeffs(), csl::Moog::setupCoeffs(), csl::Scalable::trigger(), csl::Effect::trigger(), csl::Joiner::trigger(), and csl::Controllable::~Controllable().
The documentation for this class was generated from the following files:
- /Content/Code/CSL6/Src/Processors/Filters.h
- /Content/Code/CSL6/Src/Processors/Filters.cpp
