csl::Oscillator Class Reference

Oscillator – Abstract oscillator class; inherits from UnitGenerator, Phased, and Scalable and provides convenience constructors (freq, ampl, offset, phase) More...

#include <Oscillator.h>

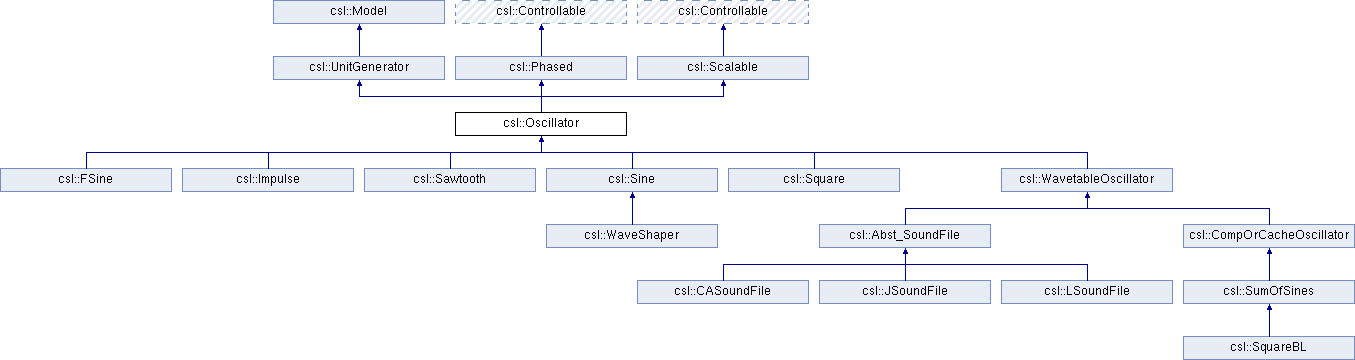

Inheritance diagram for csl::Oscillator:

Public Member Functions
	Oscillator (float frequency=220.0, float ampl=1.0, float offset=0.0, float phase=0.0)
	Constructor: parameters are optional. More...
	Oscillator (UnitGenerator &frequency, float ampl=1.0, float offset=0.0, float phase=0.0)
	Oscillator (UnitGenerator &frequency, UnitGenerator &ampl, float offset=0.0, float phase=0.0)
virtual	~Oscillator ()
	Destructor. More...
void	dump ()
	print the receiver for debugging More...
unsigned	frameRate ()
void	setFrameRate (unsigned rate)
	get/set the receiver's frame rate More...
virtual unsigned	numChannels ()
void	setNumChannels (unsigned ch)
	get/set the receiver's number of outputs More...
BufferCopyPolicy	copyPolicy ()
void	setCopyPolicy (BufferCopyPolicy ch)
	get/set the receiver's buffer copy policy More...
virtual void	nextBuffer (Buffer &outputBuffer) throw (CException)
	get a buffer of Frames – this is the core CSL "pull" function; the given buffer can be written into, and a changed() message is sent. More...
virtual void	nextBuffer (Buffer &outputBuffer, unsigned outBufNum) throw (CException)
	really compute the next buffer given an offset base channel; this is called by nextBuffer, possibly multiple times More...
virtual bool	isFixed ()
	query whether I'm fixed (StaticVariable overrides this) More...
virtual bool	isActive ()
	query whether I'm currently active (Envelopes can go inactive) More...
void	addOutput (UnitGenerator *ugen)
	add to or return the UGen vector of outputs More...
void	removeOutput (UnitGenerator *ugen)
UGenVector	outputs ()
virtual unsigned	numOutputs ()
bool	checkFanOut (Buffer &outputBuffer) throw (CException)
	check for fan-out and copy previous buffer; return true if fanning out More...
void	handleFanOut (Buffer &outputBuffer) throw (CException)
virtual void	setValue (sample theValue)
	set/get the value (not allowed in the abstract, useful for static values) More...
virtual sample	value ()
virtual void	trigger ()
void	attachObserver (Observer *)
	(possibly notify obersvers on my death) More...
void	detachObserver (Observer *)
void	changed (void *argument)
	this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map More...
virtual int	evaluate (void *argument)
void	setFrequency (UnitGenerator &frequency)
	Setter accessors. More...
void	setFrequency (float frequency)
	set frequency More...
void	setPhase (float phase)
Port *	getPort (CSL_MAP_KEY name)
void	setScale (UnitGenerator &scale)
	set the receiver's scale member to a UGen or a float More...
void	setScale (float scale)
void	setOffset (UnitGenerator &offset)
	set the receiver's offset member to a UGen or a float More...
void	setOffset (float offset)
virtual void	trigger ()
	trigger passed on here More...
void	isScaled ()
	answer whether scale = 1 & offset = 0 More...

Protected Member Functions
void	zeroBuffer (Buffer &outputBuffer, unsigned outBufNum)
	utility method to zero out an outputBuffer More...
void	addInput (CSL_MAP_KEY name, UnitGenerator &ugen)
	Plug in a unit generator to the named input slot. More...
void	addInput (CSL_MAP_KEY name, float value)
	Plug in a float to the named input slot. More...
void	pullInput (Port *thePort, unsigned numFrames) throw (CException)
	method to read the control values (in case they're dynamic). this sends nextBuffer() to the input. More...
void	pullInput (Port *thePort, Buffer &theBuffer) throw (CException)

Protected Attributes
unsigned	mFrameRate
	trigger ignored here More...
unsigned	mNumChannels
	my "expected" number of output channels More...
BufferCopyPolicy	mCopyPolicy
	the policy I use if asked for more or fewer channels More...
UGenVector	mOutputs
	the vector of my output UGens More...
unsigned	mNumOutputs
	the number of outputs More...
Buffer *	mOutputCache
	my past output ring buffer (only used in case of fan-out) More...
unsigned	mSequence
	the highest-seen buffer seq number More...
sample	mPhase
	set phase More...
PortMap	mInputs
	the map of my inputs or controls (used by the mix-in classes) More...

Detailed Description

Oscillator – Abstract oscillator class; inherits from UnitGenerator, Phased, and Scalable and provides convenience constructors (freq, ampl, offset, phase)

Definition at line 31 of file Oscillator.h.

Constructor & Destructor Documentation

Oscillator::Oscillator	(	float	frequency = 220.0,
		float	ampl = 1.0,
		float	offset = 0.0,
		float	phase = 0.0
	)

Constructor: parameters are optional.

Definition at line 16 of file Oscillator.cpp.

Oscillator::Oscillator	(	UnitGenerator &	frequency,
		float	ampl = 1.0,
		float	offset = 0.0,
		float	phase = 0.0
	)

Definition at line 21 of file Oscillator.cpp.

Oscillator::Oscillator	(	UnitGenerator &	frequency,
		UnitGenerator &	ampl,
		float	offset = 0.0,
		float	phase = 0.0
	)

Definition at line 26 of file Oscillator.cpp.

Oscillator::~Oscillator ( )

virtual

Destructor.

Definition at line 31 of file Oscillator.cpp.

Member Function Documentation

void Oscillator::dump ( void  )

virtual

print the receiver for debugging

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::SumOfSines.

Definition at line 33 of file Oscillator.cpp.

References csl::Controllable::dump(), and csl::logMsg().

unsigned csl::UnitGenerator::frameRate ( )

inlineinherited

Definition at line 249 of file CSL_Core.h.

References csl::UnitGenerator::mFrameRate.

Referenced by csl::CASoundFile::dump(), csl::Abst_SoundFile::dump(), and csl::SoundCue::dump().

void csl::UnitGenerator::setFrameRate ( unsigned  rate )

inlineinherited

get/set the receiver's frame rate

Definition at line 250 of file CSL_Core.h.

References csl::UnitGenerator::mFrameRate.

virtual unsigned csl::UnitGenerator::numChannels ( )

inlinevirtualinherited

Reimplemented in csl::Splitter, and csl::Stereoverb.

Definition at line 252 of file CSL_Core.h.

References csl::UnitGenerator::mNumChannels.

Referenced by csl::AmbisonicMixer::addInput(), csl::BlockResizer::BlockResizer(), csl::Port::checkBuffer(), csl::Effect::Effect(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::Mixer::nextBuffer(), csl::Convolver2::setIRFile(), csl::Convolver::setIRFile(), and csl::SpatialSource::SpatialSource().

void csl::UnitGenerator::setNumChannels ( unsigned  ch )

inlineinherited

get/set the receiver's number of outputs

Definition at line 253 of file CSL_Core.h.

References csl::UnitGenerator::mNumChannels.

Referenced by csl::BinauralPanner::BinauralPanner(), csl::Spatializer::Spatializer(), csl::VBAP::speakerLayoutChanged(), and csl::VBAP::VBAP().

BufferCopyPolicy csl::UnitGenerator::copyPolicy ( )

inlineinherited

Definition at line 255 of file CSL_Core.h.

References csl::UnitGenerator::mCopyPolicy.

void csl::UnitGenerator::setCopyPolicy ( BufferCopyPolicy  ch )

inlineinherited

get/set the receiver's buffer copy policy

Definition at line 256 of file CSL_Core.h.

References csl::UnitGenerator::mCopyPolicy.

Referenced by csl::AmbisonicPanner::AmbisonicPanner(), csl::BinauralPanner::BinauralPanner(), csl::AmbisonicUnitGenerator::initOrder(), csl::Noise::Noise(), csl::PinkNoise::PinkNoise(), csl::Spatializer::Spatializer(), and csl::VBAP::VBAP().

void UnitGenerator::nextBuffer ( Buffer &  outputBuffer ) throw ( CException )

virtualinherited

get a buffer of Frames – this is the core CSL "pull" function; the given buffer can be written into, and a changed() message is sent.

Reimplemented in csl::Joiner, csl::Splitter, csl::FanOut, csl::SoundCue, csl::Stereoverb, csl::StereoWidth, csl::Abst_SoundFile, csl::NtoMPanner, csl::RemoteStream, csl::BufferStream, csl::LSoundFile, csl::GrainPlayer, csl::Panner, csl::RingBuffer, csl::Instrument, csl::VBAP, csl::IFFT, csl::SpatialSource, csl::BinauralPanner, csl::InOut, csl::Spatializer, csl::Mixer, csl::SpatialPanner, csl::RingBufferTap, csl::Convolver, csl::AmbisonicPanner, csl::Convolver2, csl::FFT, csl::BlockResizer, csl::DelayLine, csl::SimplePanner, csl::SimplePanner, and csl::Microphone.

Definition at line 726 of file CSL_Core.cpp.

References csl::kCopy, csl::kExpand, csl::kIgnore, and csl::logMsg().

Referenced by csl::DistanceSimulator::nextBuffer(), csl::RingBufferTap::nextBuffer(), csl::Mixer::nextBuffer(), csl::AmbisonicMixer::nextBuffer(), csl::SpatialSource::nextBuffer(), csl::BufferStream::nextBuffer(), csl::Controllable::pullInput(), csl::PAIO::test(), and csl::FileIO::writeNextBuffer().

void UnitGenerator::nextBuffer ( Buffer &  outputBuffer, unsigned  outBufNum  ) throw ( CException )

virtualinherited

really compute the next buffer given an offset base channel; this is called by nextBuffer, possibly multiple times

Reimplemented in csl::Joiner, csl::Splitter, csl::FanOut, SAFliter, csl::RandEnvelope, csl::Moog, csl::AmbisonicDecoder, csl::Biquad, csl::Impulse, csl::Square, csl::AmbisonicEncoder, csl::Sawtooth, csl::FSine, csl::MulOp, csl::Envelope, csl::Filter, csl::Sine, csl::DynamicVariable, csl::AmbisonicRotator, csl::BufferStream, csl::CompOrCacheOscillator, csl::AddOp, csl::FIR, csl::WavetableOscillator, csl::PinkNoise, csl::VBAP, csl::SineAsScaled, csl::SpatialSource, csl::LineSegment, csl::StaticVariable, csl::AmbisonicMixer, csl::WhiteNoise, csl::SineAsPhased, csl::SpatialPanner, csl::Window, csl::RingBufferTap, csl::BinaryOp, csl::Freeverb, csl::KarplusString, csl::Clipper, csl::Lorenz, csl::SimpleSine, csl::DistanceSimulator, and csl::WaveShaper.

Definition at line 755 of file CSL_Core.cpp.

virtual bool csl::UnitGenerator::isFixed ( )

inlinevirtualinherited

query whether I'm fixed (StaticVariable overrides this)

Reimplemented in csl::StaticVariable, and csl::BinaryOp.

Definition at line 271 of file CSL_Core.h.

virtual bool csl::UnitGenerator::isActive ( )

inlinevirtualinherited

query whether I'm currently active (Envelopes can go inactive)

Reimplemented in csl::Joiner, csl::Effect, csl::RandEnvelope, csl::SoundCue, csl::Abst_SoundFile, csl::Stereoverb, csl::Envelope, csl::Instrument, csl::Mixer, and csl::KarplusString.

Definition at line 273 of file CSL_Core.h.

Referenced by csl::Instrument::isActive(), csl::Port::isActive(), csl::Mixer::nextBuffer(), csl::BinauralPanner::nextBuffer(), csl::AmbisonicMixer::nextBuffer(), and csl::VBAP::nextBuffer().

void UnitGenerator::addOutput ( UnitGenerator *  ugen )

inherited

add to or return the UGen vector of outputs

Definition at line 670 of file CSL_Core.cpp.

References csl::Buffer::allocateBuffers(), csl::CGestalt::blockSize(), csl::UnitGenerator::mNumOutputs, csl::UnitGenerator::mOutputCache, and csl::UnitGenerator::mOutputs.

Referenced by csl::Mixer::addInput(), csl::Controllable::addInput(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::AmbisonicEncoder::setInput(), and csl::IO::setRoot().

void UnitGenerator::removeOutput ( UnitGenerator *  ugen )

inherited

Definition at line 680 of file CSL_Core.cpp.

References csl::UnitGenerator::mNumOutputs, and csl::UnitGenerator::mOutputs.

Referenced by csl::IO::clearRoot(), csl::AmbisonicEncoder::setInput(), csl::AmbisonicDecoder::~AmbisonicDecoder(), and csl::AmbisonicRotator::~AmbisonicRotator().

UGenVector csl::UnitGenerator::outputs ( )

inlineinherited

Definition at line 277 of file CSL_Core.h.

References csl::UnitGenerator::mOutputs.

virtual unsigned csl::UnitGenerator::numOutputs ( )

inlinevirtualinherited

Definition at line 278 of file CSL_Core.h.

References csl::UnitGenerator::mNumOutputs.

bool UnitGenerator::checkFanOut ( Buffer &  outputBuffer ) throw ( CException )

inherited

check for fan-out and copy previous buffer; return true if fanning out

Definition at line 699 of file CSL_Core.cpp.

void UnitGenerator::handleFanOut ( Buffer &  outputBuffer ) throw ( CException )

inherited

Definition at line 713 of file CSL_Core.cpp.

References csl_max.

virtual void csl::UnitGenerator::setValue ( sample  theValue )

inlinevirtualinherited

set/get the value (not allowed in the abstract, useful for static values)

Reimplemented in csl::DynamicVariable, and csl::StaticVariable.

Definition at line 284 of file CSL_Core.h.

virtual sample csl::UnitGenerator::value ( )

inlinevirtualinherited

Reimplemented in csl::StaticVariable.

Definition at line 285 of file CSL_Core.h.

virtual void csl::UnitGenerator::trigger ( void  )

inlinevirtualinherited

Reimplemented in csl::Joiner, csl::Effect, csl::RandEnvelope, csl::SoundCue, csl::Abst_SoundFile, csl::Envelope, csl::LineSegment, and csl::KarplusString.

Definition at line 288 of file CSL_Core.h.

Referenced by csl::Instrument::play(), csl::Instrument::release(), and csl::Port::trigger().

void UnitGenerator::zeroBuffer ( Buffer &  outputBuffer, unsigned  outBufNum  )

protectedinherited

utility method to zero out an outputBuffer

Definition at line 663 of file CSL_Core.cpp.

References csl::Buffer::buffer(), and csl::Buffer::mMonoBufferByteSize.

void Model::attachObserver ( Observer *  o )

inherited

(possibly notify obersvers on my death)

register/remove observers

Definition at line 502 of file CGestalt.cpp.

References csl::logMsg(), csl::Observer::mKey, and csl::Observer::mPeriod.

Referenced by CSLMIDIComponent::CSLMIDIComponent(), and csl::SpatialPanner::setSpeakerLayout().

void Model::detachObserver ( Observer *  o )

inherited

Definition at line 518 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpatialPanner::setSpeakerLayout(), and csl::SpatialPanner::~SpatialPanner().

void Model::changed ( void *  argument )

inherited

this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map

Definition at line 540 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpeakerLayout::addSpeaker(), csl::MIDIIn::handleIncomingMidiMessage(), and csl::SpeakerLayout::setDefaultSpeakerLayout().

virtual int csl::Model::evaluate ( void *  argument )

inlinevirtualinherited

Reimplemented in csl::MIDIIn.

Definition at line 270 of file CGestalt.h.

void Phased::setFrequency ( UnitGenerator &  frequency )

inherited

Setter accessors.

set frequency

Definition at line 981 of file CSL_Core.cpp.

References csl::Controllable::addInput(), and CSL_FREQUENCY.

Referenced by csl::AdditiveInstrument::playMIDI(), csl::AdditiveInstrument::playNote(), csl::AdditiveInstrument::playOSC(), csl::KarplusString::setFrequency(), csl::AdditiveInstrument::setParameter(), csl::SquareBL::SquareBL(), test_SHARC(), test_SHARC2(), testRandFreqEnv(), testSplitJoin1(), testSplitJoin2(), testSumOfSines1F(), testSumOfSinesCached(), testSumOfSinesNonCached(), and testSumOfSinesSteps().

void Phased::setFrequency ( float  frequency )

inherited

set frequency

Definition at line 985 of file CSL_Core.cpp.

References csl::Controllable::addInput(), and CSL_FREQUENCY.

void csl::Phased::setPhase ( float  phase )

inlineinherited

Definition at line 507 of file CSL_Core.h.

References csl::Phased::mPhase.

Port * Controllable::getPort ( CSL_MAP_KEY  name )

inherited

Definition at line 920 of file CSL_Core.cpp.

References csl::Controllable::mInputs.

Referenced by csl::FrequencyAmount::getFrequency(), and csl::VSTIO::getParameter().

void Controllable::addInput ( CSL_MAP_KEY  name, UnitGenerator &  ugen  )

protectedinherited

Plug in a unit generator to the named input slot.

Definition at line 894 of file CSL_Core.cpp.

References csl::UnitGenerator::addOutput(), csl::logMsg(), and csl::Controllable::mInputs.

Referenced by csl::Joiner::addInput(), csl::BinaryOp::BinaryOp(), csl::DistanceSimulator::DistanceSimulator(), csl::Effect::Effect(), csl::InOut::InOut(), csl::Joiner::Joiner(), csl::NtoMPanner::NtoMPanner(), csl::Panner::Panner(), csl::Phased::Phased(), csl::Scalable::Scalable(), csl::FrequencyAmount::setAmount(), csl::FrequencyAmount::setFrequency(), csl::Phased::setFrequency(), csl::Effect::setInput(), csl::Scalable::setOffset(), csl::Panner::setPosition(), csl::Abst_SoundFile::setRate(), csl::Scalable::setScale(), csl::NtoMPanner::setX(), csl::NtoMPanner::setY(), and csl::SpatialSource::SpatialSource().

void Controllable::addInput ( CSL_MAP_KEY  name, float  value  )

protectedinherited

Plug in a float to the named input slot.

Definition at line 906 of file CSL_Core.cpp.

References csl::logMsg(), csl::Controllable::mInputs, and csl::Port::mValue.

void Controllable::pullInput ( Port *  thePort, unsigned  numFrames  ) throw ( CException )

protectedinherited

method to read the control values (in case they're dynamic). this sends nextBuffer() to the input.

Definition at line 847 of file CSL_Core.cpp.

References csl::kSamples, csl::logMsg(), csl::Buffer::mIsPopulated, csl::Buffer::mNumFrames, csl::Buffer::mType, csl::UnitGenerator::nextBuffer(), and csl::Buffer::zeroBuffers().

Referenced by csl::Panner::nextBuffer(), csl::NtoMPanner::nextBuffer(), and csl::Effect::pullInput().

void Controllable::pullInput ( Port *  thePort, Buffer &  theBuffer  ) throw ( CException )

protectedinherited

Definition at line 879 of file CSL_Core.cpp.

References csl::UnitGenerator::nextBuffer().

void Scalable::setScale ( UnitGenerator &  scale )

inherited

set the receiver's scale member to a UGen or a float

Definition at line 1039 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_SCALE, and csl::logMsg().

Referenced by createRandFreqEnvPatch(), csl::FancyFMInstrument::FancyFMInstrument(), csl::AdditiveInstrument::init(), csl::SndFileInstrument::initialize(), main(), csl::FMInstrument::parseArgs(), csl::SndFileInstrument::playNote(), csl::SndFileInstrument::playOSC(), csl::AdditiveInstrument::setParameter(), csl::SndFileInstrument::setParameter(), csl::FancyFMInstrument::setParameter(), sosNote(), test_SHARC(), test_SHARC2(), testADSR_FM(), testARSin2(), testComplexEnvelope(), testEnvScale(), testFancy_FM(), testFanMix1(), testFanMix2(), testMultiTap(), testRandFreqEnv(), testReverb(), testSplitJoin1(), testSplitJoin2(), testStereoverb(), testString(), testStringChorus(), testSumOfSines1F(), testSumOfSinesCached(), testSumOfSinesNonCached(), testSumOfSinesSteps(), and testWaveShaper().

void Scalable::setScale ( float  scale )

inherited

Definition at line 1046 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_SCALE, and csl::logMsg().

void Scalable::setOffset ( UnitGenerator &  offset )

inherited

set the receiver's offset member to a UGen or a float

Definition at line 1053 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_OFFSET, and csl::logMsg().

void Scalable::setOffset ( float  offset )

inherited

Definition at line 1060 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_OFFSET, and csl::logMsg().

void Scalable::trigger ( void  )

virtualinherited

trigger passed on here

Reimplemented in csl::RandEnvelope, csl::Abst_SoundFile, csl::Envelope, and csl::KarplusString.

Definition at line 1069 of file CSL_Core.cpp.

References CSL_OFFSET, CSL_SCALE, and csl::Controllable::mInputs.

void csl::Scalable::isScaled ( )

inherited

answer whether scale = 1 & offset = 0

Member Data Documentation

unsigned csl::UnitGenerator::mFrameRate

protectedinherited

trigger ignored here

the frame rate – initialized to be the default by the constructor

Definition at line 288 of file CSL_Core.h.

Referenced by csl::Abst_SoundFile::convertRate(), csl::Lorenz::dump(), csl::Abst_SoundFile::durationInSecs(), csl::UnitGenerator::frameRate(), csl::Filter::init(), csl::CASoundFile::initFromSndfile(), csl::JSoundFile::initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::RandEnvelope::nextSegment(), csl::SquareBL::nextWaveInto(), csl::SumOfSines::nextWaveInto(), csl::DelayLine::setDelayTime(), csl::UnitGenerator::setFrameRate(), csl::Abst_SoundFile::setStartSec(), csl::Abst_SoundFile::setStopSec(), csl::Butter::setupCoeffs(), csl::Formant::setupCoeffs(), csl::Notch::setupCoeffs(), and csl::Moog::setupCoeffs().

unsigned csl::UnitGenerator::mNumChannels

protectedinherited

my "expected" number of output channels

Definition at line 292 of file CSL_Core.h.

Referenced by csl::AmbisonicMixer::addInput(), csl::Mixer::allocateOpBuffer(), csl::AmbisonicDecoder::asProjection(), csl::AmbisonicDecoder::asPseudoInverse(), csl::BlockResizer::BlockResizer(), csl::Abst_SoundFile::channels(), csl::Abst_SoundFile::checkBuffer(), csl::FMInstrument::FMInstrument(), csl::GrainPlayer::GrainPlayer(), csl::AdditiveInstrument::init(), csl::JSoundFile::initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::AmbisonicMixer::initialize(), csl::SndFileInstrument::initialize(), csl::AmbisonicRotator::initialize(), csl::AmbisonicEncoder::initialize(), csl::AmbisonicDecoder::initialize(), csl::AmbisonicUnitGenerator::initOrder(), csl::RemoteStream::initPacket(), csl::Joiner::isActive(), csl::Joiner::Joiner(), csl::AmbisonicDecoder::makeInPhase(), csl::AmbisonicDecoder::makeMaxRE(), csl::Abst_SoundFile::mergeToMono(), csl::Mixer::Mixer(), csl::UnitGenerator::numChannels(), csl::Panner::Panner(), csl::CASoundFile::readBufferFromFile(), csl::JSoundFile::readBufferFromFile(), csl::LSoundFile::readBufferFromFile(), csl::RemoteStream::RemoteStream(), csl::UnitGenerator::setNumChannels(), csl::WavetableOscillator::setWaveform(), csl::Joiner::trigger(), and csl::AmbisonicRotator::~AmbisonicRotator().

BufferCopyPolicy csl::UnitGenerator::mCopyPolicy

protectedinherited

the policy I use if asked for more or fewer channels

Definition at line 293 of file CSL_Core.h.

Referenced by csl::UnitGenerator::copyPolicy(), and csl::UnitGenerator::setCopyPolicy().

UGenVector csl::UnitGenerator::mOutputs

protectedinherited

the vector of my output UGens

Definition at line 294 of file CSL_Core.h.

Referenced by csl::UnitGenerator::addOutput(), csl::UnitGenerator::dump(), csl::UnitGenerator::outputs(), and csl::UnitGenerator::removeOutput().

unsigned csl::UnitGenerator::mNumOutputs

protectedinherited

the number of outputs

Definition at line 295 of file CSL_Core.h.

Referenced by csl::UnitGenerator::addOutput(), csl::UnitGenerator::numOutputs(), and csl::UnitGenerator::removeOutput().

Buffer* csl::UnitGenerator::mOutputCache

protectedinherited

my past output ring buffer (only used in case of fan-out)

Definition at line 296 of file CSL_Core.h.

Referenced by csl::UnitGenerator::addOutput().

unsigned csl::UnitGenerator::mSequence

protectedinherited

the highest-seen buffer seq number

Definition at line 297 of file CSL_Core.h.

sample csl::Phased::mPhase

protectedinherited

set phase

the actual phase accumulator

Definition at line 507 of file CSL_Core.h.

Referenced by csl::Phased::setPhase().

PortMap csl::Controllable::mInputs

protectedinherited

the map of my inputs or controls (used by the mix-in classes)

Definition at line 378 of file CSL_Core.h.

Referenced by csl::Controllable::addInput(), csl::BinaryOp::dump(), csl::Controllable::dump(), csl::Controllable::getPort(), csl::Biquad::incrBoost(), csl::Biquad::incrFrq(), csl::Effect::isActive(), csl::Joiner::isActive(), csl::SquareBL::nextWaveInto(), csl::BinaryOp::operandIsFixed(), csl::Phased::Phased(), csl::DistanceSimulator::positionChanged(), csl::Scalable::Scalable(), csl::Biquad::setBoost(), csl::Biquad::setFrq(), csl::BinaryOp::setOperand(), csl::Abst_SoundFile::setRate(), csl::Butter::setupCoeffs(), csl::Formant::setupCoeffs(), csl::Notch::setupCoeffs(), csl::Allpass::setupCoeffs(), csl::Moog::setupCoeffs(), csl::Scalable::trigger(), csl::Effect::trigger(), csl::Joiner::trigger(), and csl::Controllable::~Controllable().

---

The documentation for this class was generated from the following files:

• /Content/Code/CSL6/Src/Sources/Oscillator.h
• /Content/Code/CSL6/Src/Sources/Oscillator.cpp
