JUCE sound file. More...

#include <SoundFileJ.h>

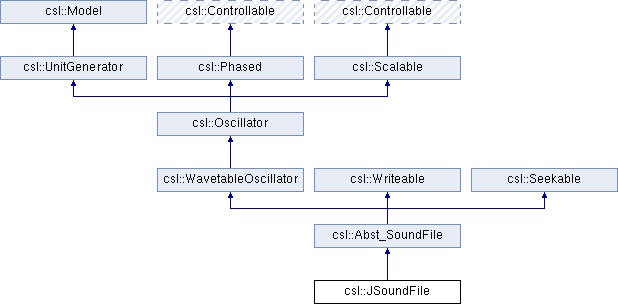

Inheritance diagram for csl::JSoundFile:

Public Member Functions
	JSoundFile (string path, int start=-1, int stop=-1)
	C'tors. More...

	JSoundFile (JSoundFile &otherSndFile)
	Copy constructor – shares sample buffer. More...

	~JSoundFile ()

unsigned	duration () const
	number of frames in the sound file More...

SoundFileFormat	format ()
	get format open file and get stats More...

void	openForRead (bool load=true) throw (CException)

void	openForRead (juce::MemoryInputStream *strm) throw (CException)

void	openForWrite (SoundFileFormat format=kSoundFileFormatAIFF, unsigned channels=1, unsigned rate=44100, unsigned bitDepth=16) throw (CException)
	Open a file for write. Default values are some common format. More...

void	openForReadWrite () throw (CException)
	open r/w More...

void	close ()
	close file seek to some position More...

unsigned	seekTo (int position, SeekPosition whence) throw (CException)
	sampleBufferPtr = mWavetable.buffer(channelIndex) + start; More...

void	readBufferFromFile (unsigned numFrames)
	read a buffer from the file (possibly all of it) More...

void	writeBuffer (Buffer &inputBuffer) throw (CException)
	write a buffer of data into the file More...

void	writeBuffer (Buffer &inB, unsigned fromFrame, unsigned toFrame) throw (CException)

unsigned	seekTo (int position) throw (CException)
	read a buffer from the file (possibly all of it) More...

virtual void	nextBuffer (Buffer &outB) throw (CException)
	UGen operations are implemented here copy next buffer from file cache. More...

virtual void	nextBuffer (Buffer &outputBuffer, unsigned outBufNum) throw (CException)
	really compute the next buffer given an offset base channel; this is called by nextBuffer, possibly multiple times More...

virtual SampleBuffer	buffer (unsigned bufNum)

unsigned	channels () const
	accessors More...

unsigned	duration ()

float	durationInSecs ()
	number of frames in the sound file More...

unsigned	sampleSize ()
	get the bytes-per-sample More...

SoundFileMode	mode ()
	r/w mode More...

unsigned	cacheSize ()
	size in frames of cached portion More...

void	mergeToMono ()
	average all the channels to mono More...

virtual void	setToEnd ()
	set to end position More...

virtual void	trigger ()
	reset to start More...

virtual void	freeBuffer ()
	free the file cache More...

void	convertRate (int fromRate, int toRate)
	perform sample-rate conversion More...

bool	isValid ()
	answer if a valid file/buffer More...

bool	isActive ()
	answer if currently active More...

virtual bool	isCached ()
	answer if file is loaded into RAM More...

virtual bool	isCached (unsigned samps)
	answer if file has X samples in RAM More...

virtual void	setPath (string path)
	set file name path string More...

string	path ()
	file name More...

virtual void	dump ()
	log snd file props More...

int	startFrame ()
	get/set start frame More...

void	setStart (int val)

void	setStartSec (float val)

void	setStartRatio (float val)

int	stopFrame ()
	get/set stop frame More...

void	setStop (int val)

void	setStopSec (float val)

void	setStopRatio (float val)

void	setBase (int val)

unsigned int	base ()

double	playbackRate ()
	playback rate (pitch ratio) More...

void	setRate (UnitGenerator &frequency)
	set the receiver's playback rate (pitch ratio) More...

void	setRate (float frequency)

bool	isLooping ()
	get/set looping state More...

void	setIsLooping (bool tLooping)

void	setWaveform (Buffer &wave, bool freeBufs=true)
	plug in waveforms set the interpolation flag More...

void	setInterpolate (InterpolationPolicy whether)

unsigned	frameRate ()

void	setFrameRate (unsigned rate)
	get/set the receiver's frame rate More...

virtual unsigned	numChannels ()

void	setNumChannels (unsigned ch)
	get/set the receiver's number of outputs More...

BufferCopyPolicy	copyPolicy ()

void	setCopyPolicy (BufferCopyPolicy ch)
	get/set the receiver's buffer copy policy More...

virtual bool	isFixed ()
	query whether I'm fixed (StaticVariable overrides this) More...

void	addOutput (UnitGenerator *ugen)
	add to or return the UGen vector of outputs More...

void	removeOutput (UnitGenerator *ugen)

UGenVector	outputs ()

virtual unsigned	numOutputs ()

bool	checkFanOut (Buffer &outputBuffer) throw (CException)
	check for fan-out and copy previous buffer; return true if fanning out More...

void	handleFanOut (Buffer &outputBuffer) throw (CException)

virtual void	setValue (sample theValue)
	set/get the value (not allowed in the abstract, useful for static values) More...

virtual sample	value ()

void	attachObserver (Observer *)
	(possibly notify obersvers on my death) More...

void	detachObserver (Observer *)

void	changed (void *argument)
	this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map More...

virtual int	evaluate (void *argument)

void	setFrequency (UnitGenerator &frequency)
	Setter accessors. More...

void	setFrequency (float frequency)
	set frequency More...

void	setPhase (float phase)

Port *	getPort (CSL_MAP_KEY name)

void	setScale (UnitGenerator &scale)
	set the receiver's scale member to a UGen or a float More...

void	setScale (float scale)

void	setOffset (UnitGenerator &offset)
	set the receiver's offset member to a UGen or a float More...

void	setOffset (float offset)

void	isScaled ()
	answer whether scale = 1 & offset = 0 More...

virtual void	reset () throw (CException)
	reset-to-zero More...

Static Public Member Functions
static JSoundFile *	openSndfile (string path, int start=-1, int stop=-1, bool doRead=true)
	Factory methods. More...

static bool	isSndfileName (const char *path)
	Answer whether the given name looks like a snd file. More...

static SoundFileFormat	sndfileNameType (const char *path)
	Answer the snd file type. More...

static const char *	mimeType (const char *path)
	Answer the MIME type based on the file name. More...

Public Attributes
juce::AudioFormatReader *	mAFReader
	my reader More...

juce::AudioFormatWriter *	mAFWriter
	and my writer More...

juce::File *	mIOFile
	my JUCE file More...

juce::FileOutputStream *	mOutStream

SoundFileMetadata *	mProperties
	the ID3 tags properties More...

InterpolationPolicy	mInterpolate
	whether/how I should interpolate between samples More...

Buffer	mWavetable
	the stored wave form More...

unsigned	mCurrentFrame
	where I currently am in the buffer More...

double	mActualFrame
	where I actually am in the buffer More...

Protected Member Functions
void	initFromSndfile ()
	read SF header More...

virtual void	writeBuffer (Buffer &inputBuffer, unsigned bufNum) throw (CException)
	write to the receiver More...

void	checkBuffer (unsigned numFrames)
	allocate buffer lazily More...

void	checkBuffer (unsigned numChans, unsigned numFrames)

bool	readTags () throw (CException)
	read the ID3 or other tags. Returns true if able to read them. More...

void	fillSine ()
	fill the shared wavetable with 1 cycle of a sine wave More...

void	zeroBuffer (Buffer &outputBuffer, unsigned outBufNum)
	utility method to zero out an outputBuffer More...

void	addInput (CSL_MAP_KEY name, UnitGenerator &ugen)
	Plug in a unit generator to the named input slot. More...

void	addInput (CSL_MAP_KEY name, float value)
	Plug in a float to the named input slot. More...

void	pullInput (Port *thePort, unsigned numFrames) throw (CException)
	method to read the control values (in case they're dynamic). this sends nextBuffer() to the input. More...

void	pullInput (Port *thePort, Buffer &theBuffer) throw (CException)

Protected Attributes
string	mPath
	file name More...

SoundFileMode	mMode
	r/w mode More...

SoundFileFormat	mFormat
	sf format More...

bool	mIsValid
	is my file valid? More...

bool	mIsLooping
	am i looping start-stop? More...

int	mStart

int	mStop
	starting/ending frames (or -1 if not used) More...

double	mRate
	sample rate ratio More...

unsigned	mNumFrames
	sample frames More...

unsigned	mBytesPerSample
	the # of bytes per sample More...

unsigned	mBase
	starting frame in file of buffer More...

unsigned	mFrameRate
	trigger ignored here More...

unsigned	mNumChannels
	my "expected" number of output channels More...

BufferCopyPolicy	mCopyPolicy
	the policy I use if asked for more or fewer channels More...

UGenVector	mOutputs
	the vector of my output UGens More...

unsigned	mNumOutputs
	the number of outputs More...

Buffer *	mOutputCache
	my past output ring buffer (only used in case of fan-out) More...

unsigned	mSequence
	the highest-seen buffer seq number More...

sample	mPhase
	set phase More...

PortMap	mInputs
	the map of my inputs or controls (used by the mix-in classes) More...

Detailed Description

JUCE sound file.

Definition at line 19 of file SoundFileJ.h.

Constructor & Destructor Documentation

JSoundFile::JSoundFile	(	string	path,
		int	start = `-1`,
		int	stop = `-1`
	)

C'tors.

Definition at line 30 of file SoundFileJ.cpp.

References csl::kLogError, csl::logMsg(), csl::CException::mMessage, openForRead(), and csl::Abst_SoundFile::setToEnd().

Referenced by openSndfile().

JSoundFile::JSoundFile ( JSoundFile & otherSndFile )

Copy constructor – shares sample buffer.

Definition at line 73 of file SoundFileJ.cpp.

JSoundFile::~JSoundFile ( )

Definition at line 81 of file SoundFileJ.cpp.

References mAFReader, mAFWriter, and mIOFile.

Member Function Documentation

JSoundFile * JSoundFile::openSndfile	(	string	path,
		int	start = `-1`,
		int	stop = `-1`,
		bool	doRead = `true`
	)

static

Factory methods.

Definition at line 17 of file SoundFileJ.cpp.

References JSoundFile().

Referenced by csl::Convolver2::setIRFile(), and csl::Convolver::setIRFile().

unsigned JSoundFile::duration ( ) const

number of frames in the sound file

Definition at line 94 of file SoundFileJ.cpp.

References mAFReader.

Referenced by load_filter_data(), csl::Convolver2::setIRFile(), and csl::Convolver::setIRFile().

SoundFileFormat JSoundFile::format ( )

get format open file and get stats

Definition at line 98 of file SoundFileJ.cpp.

References kSoundFileFormatAIFF, kSoundFileFormatOther, kSoundFileFormatWAV, and mAFReader.

void JSoundFile::openForRead	(	bool	load = `true`	)
throw	(	CException
	)

virtual

Implements csl::Abst_SoundFile.

Definition at line 134 of file SoundFileJ.cpp.

References csl::kLogError, kSoundFileRead, csl::logMsg(), and csl::CGestalt::maxSndFileFrames().

Referenced by JSoundFile().

void csl::JSoundFile::openForRead	(	juce::MemoryInputStream *	strm	)
throw	(	CException
	)

void JSoundFile::openForWrite	(	SoundFileFormat	format = `kSoundFileFormatAIFF`,
		unsigned	channels = `1`,
		unsigned	rate = `44100`,
		unsigned	bitDepth = `16`
	)
throw	(	CException
	)

virtual

Open a file for write. Default values are some common format.

Implements csl::Abst_SoundFile.

Definition at line 193 of file SoundFileJ.cpp.

References csl::kLogError, kSoundFileFormatAIFF, kSoundFileFormatWAV, kSoundFileWrite, and csl::logMsg().

void csl::JSoundFile::openForReadWrite	(		)
throw	(	CException
	)

open r/w

void JSoundFile::close ( )

virtual

close file seek to some position

Implements csl::Abst_SoundFile.

Definition at line 218 of file SoundFileJ.cpp.

References csl::Abst_SoundFile::freeBuffer(), kSoundFileWrite, csl::Abst_SoundFile::mMode, and mOutStream.

unsigned JSoundFile::seekTo	(	int	position,
		SeekPosition	whence
	)
throw	(	CException
	)

virtual

sampleBufferPtr = mWavetable.buffer(channelIndex) + start;

Implements csl::Abst_SoundFile.

Definition at line 289 of file SoundFileJ.cpp.

References csl::kPositionCurrent, csl::kPositionEnd, csl::kPositionStart, and csl::logMsg().

Referenced by initFromSndfile(), and readBufferFromFile().

void JSoundFile::readBufferFromFile ( unsigned numFrames )

virtual

read a buffer from the file (possibly all of it)

Implements csl::Abst_SoundFile.

Definition at line 226 of file SoundFileJ.cpp.

References csl::Buffer::buffer(), csl::Buffer::buffers(), csl::Abst_SoundFile::checkBuffer(), csl::kPositionStart, mAFReader, csl::Seekable::mCurrentFrame, csl::Abst_SoundFile::mIsLooping, csl::UnitGenerator::mNumChannels, csl::Abst_SoundFile::mStop, csl::WavetableOscillator::mWavetable, and seekTo().

void JSoundFile::writeBuffer	(	Buffer &	inputBuffer	)
throw	(	CException
	)

virtual

write a buffer of data into the file

Implements csl::Abst_SoundFile.

Definition at line 317 of file SoundFileJ.cpp.

void JSoundFile::writeBuffer	(	Buffer &	inB,
		unsigned	fromFrame,
		unsigned	toFrame
	)
throw	(	CException
	)

virtual

Implements csl::Abst_SoundFile.

Definition at line 334 of file SoundFileJ.cpp.

void JSoundFile::initFromSndfile ( )

protectedvirtual

read SF header

Implements csl::Abst_SoundFile.

Definition at line 109 of file SoundFileJ.cpp.

References csl::kPositionStart, mAFReader, mAFWriter, csl::Abst_SoundFile::mBytesPerSample, csl::UnitGenerator::mFrameRate, csl::Abst_SoundFile::mIsValid, csl::UnitGenerator::mNumChannels, csl::Abst_SoundFile::mNumFrames, csl::Abst_SoundFile::mStart, csl::Abst_SoundFile::mStop, and seekTo().

bool Abst_SoundFile::isSndfileName ( const char * path )

staticinherited

Answer whether the given name looks like a snd file.

Answer the snd file type.

Definition at line 44 of file SoundFile.cpp.

References gSndFileExts.

SoundFileFormat Abst_SoundFile::sndfileNameType ( const char * path )

staticinherited

Answer the snd file type.

Definition at line 60 of file SoundFile.cpp.

References kSoundFileFormatAIFF, kSoundFileFormatOther, kSoundFileFormatSND, and kSoundFileFormatWAV.

Referenced by csl::Abst_SoundFile::mimeType().

const char * Abst_SoundFile::mimeType ( const char * path )

staticinherited

Answer the MIME type based on the file name.

open file and get stats; read it if "load"

Definition at line 98 of file SoundFile.cpp.

References kSoundFileFormatAIFF, kSoundFileFormatWAV, and csl::Abst_SoundFile::sndfileNameType().

unsigned csl::Abst_SoundFile::seekTo	(	int	position	)
throw	(	CException
	)

inlineinherited

read a buffer from the file (possibly all of it)

Definition at line 122 of file SoundFile.h.

References csl::kPositionStart, and csl::Abst_SoundFile::seekTo().

Referenced by csl::Abst_SoundFile::seekTo().

void Abst_SoundFile::nextBuffer	(	Buffer &	outB	)
throw	(	CException
	)

virtualinherited

UGen operations are implemented here copy next buffer from file cache.

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::LSoundFile.

Definition at line 382 of file SoundFile.cpp.

References csl_min, DECLARE_SCALABLE_CONTROLS, LOAD_SCALABLE_CONTROLS, csl::WavetableOscillator::nextBuffer(), and UPDATE_SCALABLE_CONTROLS.

void WavetableOscillator::nextBuffer	(	Buffer &	outputBuffer,
		unsigned	outBufNum
	)
throw	(	CException
	)

virtualinherited

really compute the next buffer given an offset base channel; this is called by nextBuffer, possibly multiple times

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::CompOrCacheOscillator.

Definition at line 132 of file Oscillator.cpp.

References DECLARE_PHASED_CONTROLS, DECLARE_SCALABLE_CONTROLS, csl::kLinear, csl::kTruncate, LOAD_PHASED_CONTROLS, LOAD_SCALABLE_CONTROLS, csl::logMsg(), mFrameRate, UPDATE_PHASED_CONTROLS, and UPDATE_SCALABLE_CONTROLS.

Referenced by csl::LSoundFile::nextBuffer(), csl::CompOrCacheOscillator::nextBuffer(), and csl::Abst_SoundFile::nextBuffer().

void Writeable::writeBuffer	(	Buffer &	inputBuffer,
		unsigned	bufNum
	)
throw	(	CException
	)

protectedvirtualinherited

write to the receiver

Reimplemented in csl::BufferStream, and csl::RingBuffer.

Definition at line 1265 of file CSL_Core.cpp.

virtual SampleBuffer csl::Abst_SoundFile::buffer ( unsigned bufNum )

inlinevirtualinherited

Definition at line 134 of file SoundFile.h.

References csl::Buffer::buffer(), and csl::WavetableOscillator::mWavetable.

Referenced by load_filter_data(), csl::Convolver2::setIRFile(), and csl::Convolver::setIRFile().

unsigned Abst_SoundFile::channels ( ) const

inherited

accessors

chans

Definition at line 157 of file SoundFile.cpp.

References csl::Abst_SoundFile::mIsValid, and csl::UnitGenerator::mNumChannels.

Referenced by csl::SoundCue::channels(), csl::CASoundFile::dump(), csl::Abst_SoundFile::dump(), and csl::SoundCue::dump().

unsigned csl::Abst_SoundFile::duration ( )

inlinevirtualinherited

Reimplemented from csl::Seekable.

Definition at line 138 of file SoundFile.h.

References csl::Abst_SoundFile::mNumFrames.

Referenced by csl::Abst_SoundFile::isCached(), csl::Abst_SoundFile::setStart(), csl::Abst_SoundFile::setStartRatio(), csl::Abst_SoundFile::setStop(), and csl::Abst_SoundFile::setStopRatio().

float Abst_SoundFile::durationInSecs ( )

inherited

number of frames in the sound file

actual duration of the selected portion in sec

Definition at line 161 of file SoundFile.cpp.

References csl::UnitGenerator::mFrameRate, csl::Abst_SoundFile::mIsValid, csl::Abst_SoundFile::mStart, and csl::Abst_SoundFile::mStop.

Referenced by csl::CASoundFile::dump(), and csl::Abst_SoundFile::dump().

unsigned csl::Abst_SoundFile::sampleSize ( )

inlineinherited

get the bytes-per-sample

Definition at line 141 of file SoundFile.h.

References csl::Abst_SoundFile::mBytesPerSample.

SoundFileMode csl::Abst_SoundFile::mode ( )

inlineinherited

r/w mode

Definition at line 142 of file SoundFile.h.

References csl::Abst_SoundFile::mMode.

unsigned csl::Abst_SoundFile::cacheSize ( )

inlineinherited

size in frames of cached portion

Definition at line 143 of file SoundFile.h.

References csl::Buffer::mNumAlloc, and csl::WavetableOscillator::mWavetable.

void Abst_SoundFile::mergeToMono ( )

inherited

average all the channels to mono

Definition at line 208 of file SoundFile.cpp.

References csl::Buffer::allocateBuffers(), csl::Buffer::buffer(), csl::Buffer::copyFrom(), csl::logMsg(), csl::Buffer::mAreBuffersAllocated, csl::Buffer::mDidIAllocateBuffers, csl::UnitGenerator::mNumChannels, csl::Buffer::mNumFrames, csl::WavetableOscillator::mWavetable, and csl::Buffer::setBuffer().

void Abst_SoundFile::setToEnd ( )

virtualinherited

set to end position

Definition at line 334 of file SoundFile.cpp.

References csl::Seekable::mCurrentFrame, and csl::Abst_SoundFile::mStop.

Referenced by csl::CASoundFile::CASoundFile(), and JSoundFile().

void Abst_SoundFile::trigger ( void )

virtualinherited

reset to start

Reimplemented from csl::UnitGenerator.

Definition at line 322 of file SoundFile.cpp.

References csl::Seekable::mCurrentFrame, csl::Abst_SoundFile::mStart, and csl::Abst_SoundFile::seekTo().

Referenced by test_convolution().

void Abst_SoundFile::freeBuffer ( )

virtualinherited

free the file cache

Definition at line 165 of file SoundFile.cpp.

References csl::Buffer::freeBuffers(), csl::Buffer::mAreBuffersAllocated, and csl::WavetableOscillator::mWavetable.

Referenced by csl::CASoundFile::close(), close(), csl::LSoundFile::close(), and csl::LSoundFile::~LSoundFile().

void Abst_SoundFile::convertRate	(	int	fromRate,
		int	toRate
	)

inherited

perform sample-rate conversion

Definition at line 236 of file SoundFile.cpp.

References csl::Buffer::convertRate(), csl::UnitGenerator::mFrameRate, csl::Buffer::mNumFrames, csl::Abst_SoundFile::mNumFrames, and csl::WavetableOscillator::mWavetable.

bool csl::Abst_SoundFile::isValid ( )

inlineinherited

answer if a valid file/buffer

Definition at line 152 of file SoundFile.h.

References csl::Abst_SoundFile::mIsValid.

bool Abst_SoundFile::isActive ( )

virtualinherited

answer if currently active

Reimplemented from csl::UnitGenerator.

Definition at line 303 of file SoundFile.cpp.

References csl::Seekable::mCurrentFrame, csl::Abst_SoundFile::mIsValid, and csl::Abst_SoundFile::mStop.

bool Abst_SoundFile::isCached ( )

virtualinherited

answer if file is loaded into RAM

answer if file has X samples in RAM

Reimplemented in csl::LSoundFile.

Definition at line 309 of file SoundFile.cpp.

References csl::Abst_SoundFile::duration(), csl::Buffer::mNumFrames, and csl::WavetableOscillator::mWavetable.

Referenced by csl::Abst_SoundFile::Abst_SoundFile().

bool Abst_SoundFile::isCached ( unsigned samps )

virtualinherited

answer if file has X samples in RAM

Reimplemented in csl::LSoundFile.

Definition at line 315 of file SoundFile.cpp.

References csl::Seekable::mCurrentFrame, csl::Buffer::mNumFrames, and csl::WavetableOscillator::mWavetable.

void Abst_SoundFile::setPath ( string path )

virtualinherited

set file name path string

Definition at line 153 of file SoundFile.cpp.

References csl::Abst_SoundFile::mPath.

Referenced by csl::Abst_SoundFile::Abst_SoundFile().

string csl::Abst_SoundFile::path ( )

inlineinherited

file name

Definition at line 158 of file SoundFile.h.

References csl::Abst_SoundFile::mPath.

Referenced by csl::Abst_SoundFile::Abst_SoundFile(), csl::CASoundFile::dump(), and csl::Abst_SoundFile::dump().

void Abst_SoundFile::dump ( void )

virtualinherited

log snd file props

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::CASoundFile.

Definition at line 370 of file SoundFile.cpp.

References csl::Abst_SoundFile::channels(), csl::Abst_SoundFile::durationInSecs(), csl::UnitGenerator::frameRate(), csl::logMsg(), and csl::Abst_SoundFile::path().

int csl::Abst_SoundFile::startFrame ( )

inlineinherited

get/set start frame

Definition at line 161 of file SoundFile.h.

References csl::Abst_SoundFile::mStart.

void Abst_SoundFile::setStart ( int val )

inherited

Definition at line 248 of file SoundFile.cpp.

References csl::Abst_SoundFile::duration(), csl::Abst_SoundFile::mIsValid, csl::Abst_SoundFile::mStart, and csl::Abst_SoundFile::seekTo().

Referenced by csl::Abst_SoundFile::setStartRatio(), and csl::Abst_SoundFile::setStartSec().

void Abst_SoundFile::setStartSec ( float val )

inherited

Definition at line 258 of file SoundFile.cpp.

References csl::UnitGenerator::mFrameRate, and csl::Abst_SoundFile::setStart().

void Abst_SoundFile::setStartRatio ( float val )

inherited

Definition at line 262 of file SoundFile.cpp.

References csl::Abst_SoundFile::duration(), and csl::Abst_SoundFile::setStart().

int csl::Abst_SoundFile::stopFrame ( )

inlineinherited

get/set stop frame

Definition at line 165 of file SoundFile.h.

References csl::Abst_SoundFile::mStop.

void Abst_SoundFile::setStop ( int val )

inherited

Definition at line 266 of file SoundFile.cpp.

References csl::Abst_SoundFile::duration(), and csl::Abst_SoundFile::mStop.

Referenced by csl::Abst_SoundFile::setStopRatio(), and csl::Abst_SoundFile::setStopSec().

void Abst_SoundFile::setStopSec ( float val )

inherited

Definition at line 275 of file SoundFile.cpp.

References csl::UnitGenerator::mFrameRate, and csl::Abst_SoundFile::setStop().

void Abst_SoundFile::setStopRatio ( float val )

inherited

Definition at line 279 of file SoundFile.cpp.

References csl::Abst_SoundFile::duration(), and csl::Abst_SoundFile::setStop().

void Abst_SoundFile::setBase ( int val )

inherited

Definition at line 283 of file SoundFile.cpp.

References csl::Abst_SoundFile::mBase.

unsigned int csl::Abst_SoundFile::base ( )

inlineinherited

Definition at line 170 of file SoundFile.h.

References csl::Abst_SoundFile::mBase.

double csl::Abst_SoundFile::playbackRate ( )

inlineinherited

playback rate (pitch ratio)

Definition at line 172 of file SoundFile.h.

References csl::Abst_SoundFile::mRate.

void Abst_SoundFile::setRate ( UnitGenerator & frequency )

inherited

set the receiver's playback rate (pitch ratio)

Definition at line 289 of file SoundFile.cpp.

References csl::Controllable::addInput(), CSL_RATE, and csl::Controllable::mInputs.

void Abst_SoundFile::setRate ( float frequency )

inherited

Definition at line 296 of file SoundFile.cpp.

References csl::logMsg(), and csl::Abst_SoundFile::mRate.

bool csl::Abst_SoundFile::isLooping ( )

inlineinherited

get/set looping state

Definition at line 176 of file SoundFile.h.

References csl::Abst_SoundFile::mIsLooping.

void csl::Abst_SoundFile::setIsLooping ( bool tLooping )

inlineinherited

Definition at line 177 of file SoundFile.h.

References csl::Abst_SoundFile::mIsLooping.

void Abst_SoundFile::checkBuffer ( unsigned numFrames )

protectedinherited

allocate buffer lazily

Definition at line 172 of file SoundFile.cpp.

References csl::Buffer::allocateBuffers(), csl::Buffer::freeBuffers(), csl::logMsg(), csl::Buffer::mAreBuffersAllocated, csl::UnitGenerator::mNumChannels, csl::Buffer::mNumFrames, csl::WavetableOscillator::mWavetable, and csl::Buffer::setSize().

Referenced by csl::CASoundFile::readBufferFromFile(), readBufferFromFile(), and csl::LSoundFile::readBufferFromFile().

void Abst_SoundFile::checkBuffer	(	unsigned	numChans,
		unsigned	numFrames
	)

protectedinherited

Definition at line 191 of file SoundFile.cpp.

References csl::Buffer::allocateBuffers(), csl::Buffer::freeBuffers(), csl::logMsg(), csl::Buffer::mAreBuffersAllocated, csl::UnitGenerator::mNumChannels, csl::Buffer::mNumFrames, csl::WavetableOscillator::mWavetable, and csl::Buffer::setSize().

bool Abst_SoundFile::readTags	(		)
throw	(	CException
	)

protectedinherited

read the ID3 or other tags. Returns true if able to read them.

Definition at line 340 of file SoundFile.cpp.

References csl::SoundFileMetadata::mAlbum, csl::SoundFileMetadata::mArtist, csl::SoundFileMetadata::mBitRate, csl::SoundFileMetadata::mChannels, csl::SoundFileMetadata::mComment, csl::SoundFileMetadata::mGenre, csl::SoundFileMetadata::mLength, csl::Abst_SoundFile::mPath, csl::Abst_SoundFile::mProperties, csl::SoundFileMetadata::mSampleRate, csl::SoundFileMetadata::mTitle, csl::SoundFileMetadata::mTrack, and csl::SoundFileMetadata::mYear.

void WavetableOscillator::setWaveform	(	Buffer &	wave,
		bool	freeBufs = `true`
	)

inherited

plug in waveforms set the interpolation flag

Definition at line 76 of file Oscillator.cpp.

References csl::Buffer::buffer(), csl::Buffer::buffers(), csl::Buffer::freeBuffers(), csl::Buffer::mAreBuffersAllocated, csl::Buffer::mAreBuffersZero, csl::Buffer::mDidIAllocateBuffers, csl::Buffer::mIsPopulated, csl::Buffer::mMonoBufferByteSize, csl::Buffer::mNumAlloc, csl::Buffer::mNumChannels, csl::UnitGenerator::mNumChannels, csl::Buffer::mNumFrames, csl::WavetableOscillator::mWavetable, csl::Buffer::setBuffer(), and csl::Buffer::setBuffers().

Referenced by csl::Abst_SoundFile::Abst_SoundFile(), and csl::WavetableOscillator::WavetableOscillator().

void csl::WavetableOscillator::setInterpolate ( InterpolationPolicy whether )

inlineinherited

Definition at line 79 of file Oscillator.h.

References csl::WavetableOscillator::mInterpolate.

void WavetableOscillator::fillSine ( )

protectedinherited

fill the shared wavetable with 1 cycle of a sine wave

Definition at line 112 of file Oscillator.cpp.

References csl::Buffer::allocateBuffers(), csl::Buffer::buffer(), CSL_TWOPI, DEFAULT_WTABLE_SIZE, csl::Buffer::mAreBuffersAllocated, csl::Buffer::mDidIAllocateBuffers, csl::WavetableOscillator::mWavetable, csl::Buffer::setBuffer(), and csl::Buffer::setSize().

unsigned csl::UnitGenerator::frameRate ( )

inlineinherited

Definition at line 249 of file CSL_Core.h.

References csl::UnitGenerator::mFrameRate.

Referenced by csl::CASoundFile::dump(), csl::Abst_SoundFile::dump(), and csl::SoundCue::dump().

void csl::UnitGenerator::setFrameRate ( unsigned rate )

inlineinherited

get/set the receiver's frame rate

Definition at line 250 of file CSL_Core.h.

References csl::UnitGenerator::mFrameRate.

virtual unsigned csl::UnitGenerator::numChannels ( )

inlinevirtualinherited

Reimplemented in csl::Splitter, and csl::Stereoverb.

Definition at line 252 of file CSL_Core.h.

References csl::UnitGenerator::mNumChannels.

Referenced by csl::AmbisonicMixer::addInput(), csl::BlockResizer::BlockResizer(), csl::Port::checkBuffer(), csl::Effect::Effect(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::Mixer::nextBuffer(), csl::Convolver2::setIRFile(), csl::Convolver::setIRFile(), and csl::SpatialSource::SpatialSource().

void csl::UnitGenerator::setNumChannels ( unsigned ch )

inlineinherited

get/set the receiver's number of outputs

Definition at line 253 of file CSL_Core.h.

References csl::UnitGenerator::mNumChannels.

Referenced by csl::BinauralPanner::BinauralPanner(), csl::Spatializer::Spatializer(), csl::VBAP::speakerLayoutChanged(), and csl::VBAP::VBAP().

BufferCopyPolicy csl::UnitGenerator::copyPolicy ( )

inlineinherited

Definition at line 255 of file CSL_Core.h.

References csl::UnitGenerator::mCopyPolicy.

void csl::UnitGenerator::setCopyPolicy ( BufferCopyPolicy ch )

inlineinherited

get/set the receiver's buffer copy policy

Definition at line 256 of file CSL_Core.h.

References csl::UnitGenerator::mCopyPolicy.

Referenced by csl::AmbisonicPanner::AmbisonicPanner(), csl::BinauralPanner::BinauralPanner(), csl::AmbisonicUnitGenerator::initOrder(), csl::Noise::Noise(), csl::PinkNoise::PinkNoise(), csl::Spatializer::Spatializer(), and csl::VBAP::VBAP().

virtual bool csl::UnitGenerator::isFixed ( )

inlinevirtualinherited

query whether I'm fixed (StaticVariable overrides this)

Reimplemented in csl::StaticVariable, and csl::BinaryOp.

Definition at line 271 of file CSL_Core.h.

void UnitGenerator::addOutput ( UnitGenerator * ugen )

inherited

add to or return the UGen vector of outputs

Definition at line 670 of file CSL_Core.cpp.

References csl::Buffer::allocateBuffers(), csl::CGestalt::blockSize(), csl::UnitGenerator::mNumOutputs, csl::UnitGenerator::mOutputCache, and csl::UnitGenerator::mOutputs.

Referenced by csl::Mixer::addInput(), csl::Controllable::addInput(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::AmbisonicEncoder::setInput(), and csl::IO::setRoot().

void UnitGenerator::removeOutput ( UnitGenerator * ugen )

inherited

Definition at line 680 of file CSL_Core.cpp.

References csl::UnitGenerator::mNumOutputs, and csl::UnitGenerator::mOutputs.

Referenced by csl::IO::clearRoot(), csl::AmbisonicEncoder::setInput(), csl::AmbisonicDecoder::~AmbisonicDecoder(), and csl::AmbisonicRotator::~AmbisonicRotator().

UGenVector csl::UnitGenerator::outputs ( )

inlineinherited

Definition at line 277 of file CSL_Core.h.

References csl::UnitGenerator::mOutputs.

virtual unsigned csl::UnitGenerator::numOutputs ( )

inlinevirtualinherited

Definition at line 278 of file CSL_Core.h.

References csl::UnitGenerator::mNumOutputs.

bool UnitGenerator::checkFanOut	(	Buffer &	outputBuffer	)
throw	(	CException
	)

inherited

check for fan-out and copy previous buffer; return true if fanning out

Definition at line 699 of file CSL_Core.cpp.

void UnitGenerator::handleFanOut	(	Buffer &	outputBuffer	)
throw	(	CException
	)

inherited

Definition at line 713 of file CSL_Core.cpp.

References csl_max.

virtual void csl::UnitGenerator::setValue ( sample theValue )

inlinevirtualinherited

set/get the value (not allowed in the abstract, useful for static values)

Reimplemented in csl::DynamicVariable, and csl::StaticVariable.

Definition at line 284 of file CSL_Core.h.

virtual sample csl::UnitGenerator::value ( )

inlinevirtualinherited

Reimplemented in csl::StaticVariable.

Definition at line 285 of file CSL_Core.h.

void UnitGenerator::zeroBuffer	(	Buffer &	outputBuffer,
		unsigned	outBufNum
	)

protectedinherited

utility method to zero out an outputBuffer

Definition at line 663 of file CSL_Core.cpp.

References csl::Buffer::buffer(), and csl::Buffer::mMonoBufferByteSize.

void Model::attachObserver ( Observer * o )

inherited

(possibly notify obersvers on my death)

register/remove observers

Definition at line 502 of file CGestalt.cpp.

References csl::logMsg(), csl::Observer::mKey, and csl::Observer::mPeriod.

Referenced by CSLMIDIComponent::CSLMIDIComponent(), and csl::SpatialPanner::setSpeakerLayout().

void Model::detachObserver ( Observer * o )

inherited

Definition at line 518 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpatialPanner::setSpeakerLayout(), and csl::SpatialPanner::~SpatialPanner().

void Model::changed ( void * argument )

inherited

this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map

Definition at line 540 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpeakerLayout::addSpeaker(), csl::MIDIIn::handleIncomingMidiMessage(), and csl::SpeakerLayout::setDefaultSpeakerLayout().

virtual int csl::Model::evaluate ( void * argument )

inlinevirtualinherited

Reimplemented in csl::MIDIIn.

Definition at line 270 of file CGestalt.h.

void Phased::setFrequency ( UnitGenerator & frequency )

inherited

Setter accessors.

set frequency

Definition at line 981 of file CSL_Core.cpp.

References csl::Controllable::addInput(), and CSL_FREQUENCY.

Referenced by csl::AdditiveInstrument::playMIDI(), csl::AdditiveInstrument::playNote(), csl::AdditiveInstrument::playOSC(), csl::KarplusString::setFrequency(), csl::AdditiveInstrument::setParameter(), csl::SquareBL::SquareBL(), test_SHARC(), test_SHARC2(), testRandFreqEnv(), testSplitJoin1(), testSplitJoin2(), testSumOfSines1F(), testSumOfSinesCached(), testSumOfSinesNonCached(), and testSumOfSinesSteps().

void Phased::setFrequency ( float frequency )

inherited

set frequency

Definition at line 985 of file CSL_Core.cpp.

References csl::Controllable::addInput(), and CSL_FREQUENCY.

void csl::Phased::setPhase ( float phase )

inlineinherited

Definition at line 507 of file CSL_Core.h.

References csl::Phased::mPhase.

Port * Controllable::getPort ( CSL_MAP_KEY name )

inherited

Definition at line 920 of file CSL_Core.cpp.

References csl::Controllable::mInputs.

Referenced by csl::FrequencyAmount::getFrequency(), and csl::VSTIO::getParameter().

void Controllable::addInput	(	CSL_MAP_KEY	name,
		UnitGenerator &	ugen
	)

protectedinherited

Plug in a unit generator to the named input slot.

Definition at line 894 of file CSL_Core.cpp.

References csl::UnitGenerator::addOutput(), csl::logMsg(), and csl::Controllable::mInputs.

Referenced by csl::Joiner::addInput(), csl::BinaryOp::BinaryOp(), csl::DistanceSimulator::DistanceSimulator(), csl::Effect::Effect(), csl::InOut::InOut(), csl::Joiner::Joiner(), csl::NtoMPanner::NtoMPanner(), csl::Panner::Panner(), csl::Phased::Phased(), csl::Scalable::Scalable(), csl::FrequencyAmount::setAmount(), csl::FrequencyAmount::setFrequency(), csl::Phased::setFrequency(), csl::Effect::setInput(), csl::Scalable::setOffset(), csl::Panner::setPosition(), csl::Abst_SoundFile::setRate(), csl::Scalable::setScale(), csl::NtoMPanner::setX(), csl::NtoMPanner::setY(), and csl::SpatialSource::SpatialSource().

void Controllable::addInput	(	CSL_MAP_KEY	name,
		float	value
	)

protectedinherited

Plug in a float to the named input slot.

Definition at line 906 of file CSL_Core.cpp.

References csl::logMsg(), csl::Controllable::mInputs, and csl::Port::mValue.

void Controllable::pullInput	(	Port *	thePort,
		unsigned	numFrames
	)
throw	(	CException
	)

protectedinherited

method to read the control values (in case they're dynamic). this sends nextBuffer() to the input.

Definition at line 847 of file CSL_Core.cpp.

References csl::kSamples, csl::logMsg(), csl::Buffer::mIsPopulated, csl::Buffer::mNumFrames, csl::Buffer::mType, csl::UnitGenerator::nextBuffer(), and csl::Buffer::zeroBuffers().

Referenced by csl::Panner::nextBuffer(), csl::NtoMPanner::nextBuffer(), and csl::Effect::pullInput().

void Controllable::pullInput	(	Port *	thePort,
		Buffer &	theBuffer
	)
throw	(	CException
	)

protectedinherited

Definition at line 879 of file CSL_Core.cpp.

References csl::UnitGenerator::nextBuffer().

void Scalable::setScale ( UnitGenerator & scale )

inherited

set the receiver's scale member to a UGen or a float

Definition at line 1039 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_SCALE, and csl::logMsg().

Referenced by createRandFreqEnvPatch(), csl::FancyFMInstrument::FancyFMInstrument(), csl::AdditiveInstrument::init(), csl::SndFileInstrument::initialize(), main(), csl::FMInstrument::parseArgs(), csl::SndFileInstrument::playNote(), csl::SndFileInstrument::playOSC(), csl::AdditiveInstrument::setParameter(), csl::SndFileInstrument::setParameter(), csl::FancyFMInstrument::setParameter(), sosNote(), test_SHARC(), test_SHARC2(), testADSR_FM(), testARSin2(), testComplexEnvelope(), testEnvScale(), testFancy_FM(), testFanMix1(), testFanMix2(), testMultiTap(), testRandFreqEnv(), testReverb(), testSplitJoin1(), testSplitJoin2(), testStereoverb(), testString(), testStringChorus(), testSumOfSines1F(), testSumOfSinesCached(), testSumOfSinesNonCached(), testSumOfSinesSteps(), and testWaveShaper().

void Scalable::setScale ( float scale )

inherited

Definition at line 1046 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_SCALE, and csl::logMsg().

void Scalable::setOffset ( UnitGenerator & offset )

inherited

set the receiver's offset member to a UGen or a float

Definition at line 1053 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_OFFSET, and csl::logMsg().

void Scalable::setOffset ( float offset )

inherited

Definition at line 1060 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_OFFSET, and csl::logMsg().

void csl::Scalable::isScaled ( )

inherited

answer whether scale = 1 & offset = 0

void Seekable::reset	(		)
throw	(	CException
	)

virtualinherited

reset-to-zero

Definition at line 1277 of file CSL_Core.cpp.

References csl::kPositionStart, and csl::Seekable::seekTo().

Member Data Documentation

juce::AudioFormatReader* csl::JSoundFile::mAFReader

my reader

Definition at line 51 of file SoundFileJ.h.

Referenced by duration(), format(), initFromSndfile(), readBufferFromFile(), and ~JSoundFile().

juce::AudioFormatWriter* csl::JSoundFile::mAFWriter

and my writer

Definition at line 52 of file SoundFileJ.h.

Referenced by initFromSndfile(), and ~JSoundFile().

juce::File* csl::JSoundFile::mIOFile

my JUCE file

Definition at line 53 of file SoundFileJ.h.

Referenced by ~JSoundFile().

juce::FileOutputStream* csl::JSoundFile::mOutStream

Definition at line 54 of file SoundFileJ.h.

Referenced by close().

SoundFileMetadata* csl::Abst_SoundFile::mProperties

inherited

the ID3 tags properties

Definition at line 179 of file SoundFile.h.

Referenced by csl::Abst_SoundFile::readTags(), and csl::Abst_SoundFile::~Abst_SoundFile().

string csl::Abst_SoundFile::mPath

protectedinherited

file name

Definition at line 182 of file SoundFile.h.

Referenced by csl::Abst_SoundFile::Abst_SoundFile(), csl::CASoundFile::CASoundFile(), csl::LSoundFile::LSoundFile(), csl::LSoundFile::openForReadWrite(), csl::Abst_SoundFile::path(), csl::CASoundFile::readBufferFromFile(), csl::Abst_SoundFile::readTags(), and csl::Abst_SoundFile::setPath().

SoundFileMode csl::Abst_SoundFile::mMode

protectedinherited

r/w mode

Definition at line 183 of file SoundFile.h.

Referenced by close(), csl::LSoundFile::initFromSndfile(), csl::Abst_SoundFile::mode(), and csl::LSoundFile::openForReadWrite().

SoundFileFormat csl::Abst_SoundFile::mFormat

protectedinherited

sf format

Definition at line 184 of file SoundFile.h.

bool csl::Abst_SoundFile::mIsValid

protectedinherited

is my file valid?

Definition at line 185 of file SoundFile.h.

Referenced by csl::Abst_SoundFile::channels(), csl::Abst_SoundFile::durationInSecs(), csl::CASoundFile::initFromSndfile(), initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::Abst_SoundFile::isActive(), csl::Abst_SoundFile::isValid(), and csl::Abst_SoundFile::setStart().

bool csl::Abst_SoundFile::mIsLooping

protectedinherited

am i looping start-stop?

Definition at line 186 of file SoundFile.h.

Referenced by csl::Abst_SoundFile::isLooping(), csl::CASoundFile::readBufferFromFile(), readBufferFromFile(), csl::LSoundFile::readBufferFromFile(), and csl::Abst_SoundFile::setIsLooping().

int csl::Abst_SoundFile::mStart

protectedinherited

Definition at line 187 of file SoundFile.h.

Referenced by csl::SoundCue::duration(), csl::Abst_SoundFile::durationInSecs(), csl::CASoundFile::initFromSndfile(), initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::LSoundFile::readBufferFromFile(), csl::Abst_SoundFile::setStart(), csl::Abst_SoundFile::startFrame(), and csl::Abst_SoundFile::trigger().

int csl::Abst_SoundFile::mStop

protectedinherited

starting/ending frames (or -1 if not used)

Definition at line 187 of file SoundFile.h.

Referenced by csl::Abst_SoundFile::durationInSecs(), csl::CASoundFile::initFromSndfile(), initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::Abst_SoundFile::isActive(), csl::CASoundFile::readBufferFromFile(), readBufferFromFile(), csl::LSoundFile::readBufferFromFile(), csl::Abst_SoundFile::setStop(), csl::Abst_SoundFile::setToEnd(), and csl::Abst_SoundFile::stopFrame().

double csl::Abst_SoundFile::mRate

protectedinherited

sample rate ratio

Definition at line 188 of file SoundFile.h.

Referenced by csl::Abst_SoundFile::playbackRate(), and csl::Abst_SoundFile::setRate().

unsigned csl::Abst_SoundFile::mNumFrames

protectedinherited

sample frames

Definition at line 189 of file SoundFile.h.

Referenced by csl::Abst_SoundFile::convertRate(), csl::Abst_SoundFile::duration(), csl::CASoundFile::initFromSndfile(), initFromSndfile(), csl::LSoundFile::initFromSndfile(), and csl::LSoundFile::isCached().

unsigned csl::Abst_SoundFile::mBytesPerSample

protectedinherited

the # of bytes per sample

Definition at line 190 of file SoundFile.h.

Referenced by initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::CASoundFile::readBufferFromFile(), and csl::Abst_SoundFile::sampleSize().

unsigned csl::Abst_SoundFile::mBase

protectedinherited

starting frame in file of buffer

Definition at line 191 of file SoundFile.h.

Referenced by csl::Abst_SoundFile::base(), csl::LSoundFile::initFromSndfile(), csl::LSoundFile::readBufferFromFile(), and csl::Abst_SoundFile::setBase().

InterpolationPolicy csl::WavetableOscillator::mInterpolate

inherited

whether/how I should interpolate between samples

Definition at line 83 of file Oscillator.h.

Referenced by csl::WavetableOscillator::setInterpolate(), and csl::WavetableOscillator::WavetableOscillator().

Buffer csl::WavetableOscillator::mWavetable

inherited

unsigned csl::UnitGenerator::mFrameRate

protectedinherited

trigger ignored here

the frame rate – initialized to be the default by the constructor

Definition at line 288 of file CSL_Core.h.

Referenced by csl::Abst_SoundFile::convertRate(), csl::Lorenz::dump(), csl::Abst_SoundFile::durationInSecs(), csl::UnitGenerator::frameRate(), csl::Filter::init(), csl::CASoundFile::initFromSndfile(), initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::RandEnvelope::nextSegment(), csl::SquareBL::nextWaveInto(), csl::SumOfSines::nextWaveInto(), csl::DelayLine::setDelayTime(), csl::UnitGenerator::setFrameRate(), csl::Abst_SoundFile::setStartSec(), csl::Abst_SoundFile::setStopSec(), csl::Butter::setupCoeffs(), csl::Formant::setupCoeffs(), csl::Notch::setupCoeffs(), and csl::Moog::setupCoeffs().

unsigned csl::UnitGenerator::mNumChannels

protectedinherited

my "expected" number of output channels

Definition at line 292 of file CSL_Core.h.

Referenced by csl::AmbisonicMixer::addInput(), csl::Mixer::allocateOpBuffer(), csl::AmbisonicDecoder::asProjection(), csl::AmbisonicDecoder::asPseudoInverse(), csl::BlockResizer::BlockResizer(), csl::Abst_SoundFile::channels(), csl::Abst_SoundFile::checkBuffer(), csl::FMInstrument::FMInstrument(), csl::GrainPlayer::GrainPlayer(), csl::AdditiveInstrument::init(), initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::AmbisonicMixer::initialize(), csl::SndFileInstrument::initialize(), csl::AmbisonicRotator::initialize(), csl::AmbisonicEncoder::initialize(), csl::AmbisonicDecoder::initialize(), csl::AmbisonicUnitGenerator::initOrder(), csl::RemoteStream::initPacket(), csl::Joiner::isActive(), csl::Joiner::Joiner(), csl::AmbisonicDecoder::makeInPhase(), csl::AmbisonicDecoder::makeMaxRE(), csl::Abst_SoundFile::mergeToMono(), csl::Mixer::Mixer(), csl::UnitGenerator::numChannels(), csl::Panner::Panner(), csl::CASoundFile::readBufferFromFile(), readBufferFromFile(), csl::LSoundFile::readBufferFromFile(), csl::RemoteStream::RemoteStream(), csl::UnitGenerator::setNumChannels(), csl::WavetableOscillator::setWaveform(), csl::Joiner::trigger(), and csl::AmbisonicRotator::~AmbisonicRotator().

BufferCopyPolicy csl::UnitGenerator::mCopyPolicy

protectedinherited

the policy I use if asked for more or fewer channels

Definition at line 293 of file CSL_Core.h.

Referenced by csl::UnitGenerator::copyPolicy(), and csl::UnitGenerator::setCopyPolicy().

UGenVector csl::UnitGenerator::mOutputs

protectedinherited

the vector of my output UGens

Definition at line 294 of file CSL_Core.h.

Referenced by csl::UnitGenerator::addOutput(), csl::UnitGenerator::dump(), csl::UnitGenerator::outputs(), and csl::UnitGenerator::removeOutput().

unsigned csl::UnitGenerator::mNumOutputs

protectedinherited

the number of outputs

Definition at line 295 of file CSL_Core.h.

Referenced by csl::UnitGenerator::addOutput(), csl::UnitGenerator::numOutputs(), and csl::UnitGenerator::removeOutput().

Buffer* csl::UnitGenerator::mOutputCache

protectedinherited

my past output ring buffer (only used in case of fan-out)

Definition at line 296 of file CSL_Core.h.

Referenced by csl::UnitGenerator::addOutput().

unsigned csl::UnitGenerator::mSequence

protectedinherited

the highest-seen buffer seq number

Definition at line 297 of file CSL_Core.h.

sample csl::Phased::mPhase

protectedinherited

set phase

the actual phase accumulator

Definition at line 507 of file CSL_Core.h.

Referenced by csl::Phased::setPhase().

PortMap csl::Controllable::mInputs

protectedinherited

the map of my inputs or controls (used by the mix-in classes)

Definition at line 378 of file CSL_Core.h.

Referenced by csl::Controllable::addInput(), csl::BinaryOp::dump(), csl::Controllable::dump(), csl::Controllable::getPort(), csl::Biquad::incrBoost(), csl::Biquad::incrFrq(), csl::Effect::isActive(), csl::Joiner::isActive(), csl::SquareBL::nextWaveInto(), csl::BinaryOp::operandIsFixed(), csl::Phased::Phased(), csl::DistanceSimulator::positionChanged(), csl::Scalable::Scalable(), csl::Biquad::setBoost(), csl::Biquad::setFrq(), csl::BinaryOp::setOperand(), csl::Abst_SoundFile::setRate(), csl::Butter::setupCoeffs(), csl::Formant::setupCoeffs(), csl::Notch::setupCoeffs(), csl::Allpass::setupCoeffs(), csl::Moog::setupCoeffs(), csl::Scalable::trigger(), csl::Effect::trigger(), csl::Joiner::trigger(), and csl::Controllable::~Controllable().

unsigned csl::Seekable::mCurrentFrame

inherited

where I currently am in the buffer

Definition at line 580 of file CSL_Core.h.

Referenced by csl::Abst_SoundFile::Abst_SoundFile(), csl::DelayLine::delayLength(), csl::Abst_SoundFile::isActive(), csl::LSoundFile::isCached(), csl::Abst_SoundFile::isCached(), csl::CASoundFile::readBufferFromFile(), readBufferFromFile(), csl::LSoundFile::readBufferFromFile(), csl::RingBufferTap::setOffset(), csl::Abst_SoundFile::setToEnd(), and csl::Abst_SoundFile::trigger().

double csl::Seekable::mActualFrame

inherited

where I actually am in the buffer

Definition at line 583 of file CSL_Core.h.

The documentation for this class was generated from the following files:

/Content/Code/CSL6/Src/IO/SoundFileJ.h
/Content/Code/CSL6/Src/IO/SoundFileJ.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

sample frames

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

chans

Member Data Documentation

sample frames
