csl::Phased Class Reference

Phased – a mix-in for objects with phase accumulators (local float) and frequency controls (an input port). More...

#include <CSL_Core.h>

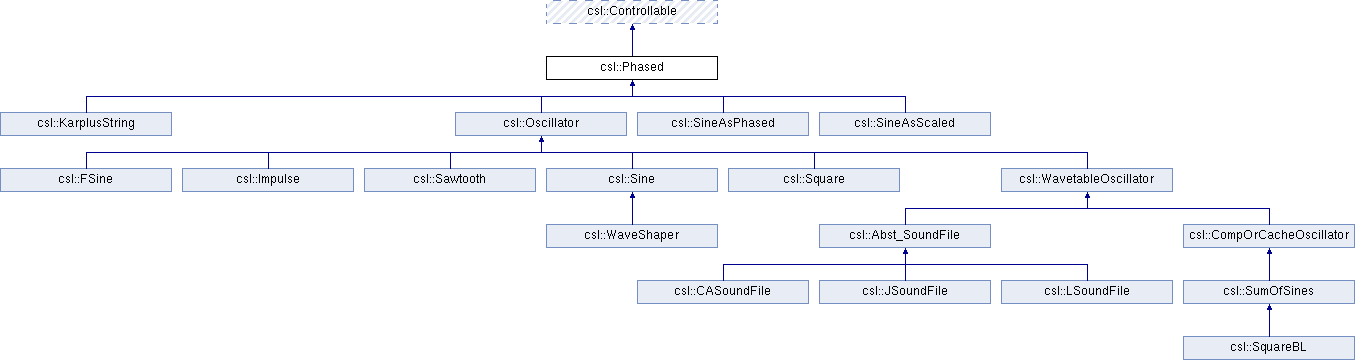

Inheritance diagram for csl::Phased:

Public Member Functions
	Phased ()
	Constructors; this one is rearely used. More...
	Phased (float frequency, float phase=0)
	use the given dynamic frequency & phase More...
	Phased (UnitGenerator &freq, float phase=0)
	use the given dynamic or static frequency More...
	~Phased ()
	Destructor. More...
void	setFrequency (UnitGenerator &frequency)
	Setter accessors. More...
void	setFrequency (float frequency)
	set frequency More...
void	setPhase (float phase)
Port *	getPort (CSL_MAP_KEY name)

Protected Member Functions
void	addInput (CSL_MAP_KEY name, UnitGenerator &ugen)
	Plug in a unit generator to the named input slot. More...
void	addInput (CSL_MAP_KEY name, float value)
	Plug in a float to the named input slot. More...
void	pullInput (Port *thePort, unsigned numFrames) throw (CException)
	method to read the control values (in case they're dynamic). this sends nextBuffer() to the input. More...
void	pullInput (Port *thePort, Buffer &theBuffer) throw (CException)
virtual void	dump ()
	pretty-print the receiver's input/controls map More...

Protected Attributes
sample	mPhase
	set phase More...
PortMap	mInputs
	the map of my inputs or controls (used by the mix-in classes) More...

Detailed Description

Phased – a mix-in for objects with phase accumulators (local float) and frequency controls (an input port).

This puts an item named CSL_FREQUENCY in the Controllable parent mInputs map.

We use Controllable as a virtual superclass so that we can mix it in twice (in classes that are also Scalable)

Definition at line 497 of file CSL_Core.h.

Constructor & Destructor Documentation

Phased::Phased

(

)

Constructors; this one is rearely used.

Definition at line 956 of file CSL_Core.cpp.

References CSL_FREQUENCY, csl::logMsg(), and csl::Controllable::mInputs.

Phased::Phased	(	float	frequency,
		float	phase = 0
	)

use the given dynamic frequency & phase

Definition at line 970 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_FREQUENCY, and csl::logMsg().

Phased::Phased	(	UnitGenerator &	freq,
		float	phase = 0
	)

use the given dynamic or static frequency

Definition at line 963 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_FREQUENCY, and csl::logMsg().

Phased::~Phased

(

)

Destructor.

Definition at line 977 of file CSL_Core.cpp.

Member Function Documentation

void Phased::setFrequency

(

UnitGenerator &

frequency

)

Setter accessors.

set frequency

Definition at line 981 of file CSL_Core.cpp.

References csl::Controllable::addInput(), and CSL_FREQUENCY.

Referenced by csl::AdditiveInstrument::playMIDI(), csl::AdditiveInstrument::playNote(), csl::AdditiveInstrument::playOSC(), csl::KarplusString::setFrequency(), csl::AdditiveInstrument::setParameter(), csl::SquareBL::SquareBL(), test_SHARC(), test_SHARC2(), testRandFreqEnv(), testSplitJoin1(), testSplitJoin2(), testSumOfSines1F(), testSumOfSinesCached(), testSumOfSinesNonCached(), and testSumOfSinesSteps().

void Phased::setFrequency

(

float

frequency

)

set frequency

Definition at line 985 of file CSL_Core.cpp.

References csl::Controllable::addInput(), and CSL_FREQUENCY.

void csl::Phased::setPhase ( float  phase )

inline

Definition at line 507 of file CSL_Core.h.

References mPhase.

Port * Controllable::getPort ( CSL_MAP_KEY  name )

inherited

Definition at line 920 of file CSL_Core.cpp.

References csl::Controllable::mInputs.

Referenced by csl::FrequencyAmount::getFrequency(), and csl::VSTIO::getParameter().

void Controllable::addInput ( CSL_MAP_KEY  name, UnitGenerator &  ugen  )

protectedinherited

Plug in a unit generator to the named input slot.

Definition at line 894 of file CSL_Core.cpp.

References csl::UnitGenerator::addOutput(), csl::logMsg(), and csl::Controllable::mInputs.

Referenced by csl::Joiner::addInput(), csl::BinaryOp::BinaryOp(), csl::DistanceSimulator::DistanceSimulator(), csl::Effect::Effect(), csl::InOut::InOut(), csl::Joiner::Joiner(), csl::NtoMPanner::NtoMPanner(), csl::Panner::Panner(), Phased(), csl::Scalable::Scalable(), csl::FrequencyAmount::setAmount(), csl::FrequencyAmount::setFrequency(), setFrequency(), csl::Effect::setInput(), csl::Scalable::setOffset(), csl::Panner::setPosition(), csl::Abst_SoundFile::setRate(), csl::Scalable::setScale(), csl::NtoMPanner::setX(), csl::NtoMPanner::setY(), and csl::SpatialSource::SpatialSource().

void Controllable::addInput ( CSL_MAP_KEY  name, float  value  )

protectedinherited

Plug in a float to the named input slot.

Definition at line 906 of file CSL_Core.cpp.

References csl::logMsg(), csl::Controllable::mInputs, and csl::Port::mValue.

void Controllable::pullInput ( Port *  thePort, unsigned  numFrames  ) throw ( CException )

protectedinherited

method to read the control values (in case they're dynamic). this sends nextBuffer() to the input.

Definition at line 847 of file CSL_Core.cpp.

References csl::kSamples, csl::logMsg(), csl::Buffer::mIsPopulated, csl::Buffer::mNumFrames, csl::Buffer::mType, csl::UnitGenerator::nextBuffer(), and csl::Buffer::zeroBuffers().

Referenced by csl::Panner::nextBuffer(), csl::NtoMPanner::nextBuffer(), and csl::Effect::pullInput().

void Controllable::pullInput ( Port *  thePort, Buffer &  theBuffer  ) throw ( CException )

protectedinherited

Definition at line 879 of file CSL_Core.cpp.

References csl::UnitGenerator::nextBuffer().

void Controllable::dump ( void  )

protectedvirtualinherited

pretty-print the receiver's input/controls map

Reimplemented in csl::RandEnvelope, csl::SumOfSines, csl::Abst_SoundFile, csl::Filter, csl::Envelope, csl::SineAsScaled, csl::SpatialSource, csl::SineAsPhased, csl::Mixer, csl::KarplusString, csl::Oscillator, csl::BinaryOp, csl::Clipper, csl::Noise, and csl::CASoundFile.

Definition at line 926 of file CSL_Core.cpp.

References CSL_FREQUENCY, CSL_INPUT, CSL_OFFSET, CSL_SCALE, csl::logMsg(), and csl::Controllable::mInputs.

Referenced by csl::Noise::dump(), csl::KarplusString::dump(), csl::Oscillator::dump(), csl::SineAsPhased::dump(), csl::SineAsScaled::dump(), csl::Envelope::dump(), csl::Filter::dump(), and csl::SumOfSines::dump().

Member Data Documentation

sample csl::Phased::mPhase

protected

set phase

the actual phase accumulator

Definition at line 507 of file CSL_Core.h.

Referenced by setPhase().

PortMap csl::Controllable::mInputs

protectedinherited

the map of my inputs or controls (used by the mix-in classes)

Definition at line 378 of file CSL_Core.h.

Referenced by csl::Controllable::addInput(), csl::BinaryOp::dump(), csl::Controllable::dump(), csl::Controllable::getPort(), csl::Biquad::incrBoost(), csl::Biquad::incrFrq(), csl::Effect::isActive(), csl::Joiner::isActive(), csl::SquareBL::nextWaveInto(), csl::BinaryOp::operandIsFixed(), Phased(), csl::DistanceSimulator::positionChanged(), csl::Scalable::Scalable(), csl::Biquad::setBoost(), csl::Biquad::setFrq(), csl::BinaryOp::setOperand(), csl::Abst_SoundFile::setRate(), csl::Butter::setupCoeffs(), csl::Formant::setupCoeffs(), csl::Notch::setupCoeffs(), csl::Allpass::setupCoeffs(), csl::Moog::setupCoeffs(), csl::Scalable::trigger(), csl::Effect::trigger(), csl::Joiner::trigger(), and csl::Controllable::~Controllable().

---

The documentation for this class was generated from the following files:

• /Content/Code/CSL6/Src/Kernel/CSL_Core.h
• /Content/Code/CSL6/Src/Kernel/CSL_Core.cpp
