Formant Filter with zeros at +-z and complex conjugate poles at +-omega. setupCoeffs() looks at the member var called normalize; if normalize is true, the filter zeros are placed at z = 1, z = -1, and the coefficients are then normalized to produce a constant unity peak gain. The resulting filter frequency response has a resonance at the given frequency. The closer the poles are to the unit-circle (radius close to one), the narrower the resulting resonance width. More...

#include <Filters.h>

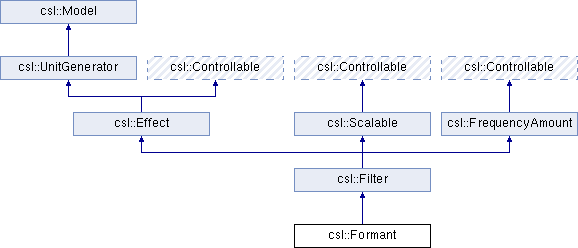

Inheritance diagram for csl::Formant:

Public Member Functions
	Formant (UnitGenerator &in, float center_freq, float radius)
	constructors & destructor More...

	Formant (UnitGenerator &in, UnitGenerator &center_freq, float radius)

	~Formant (void)

void	setupCoeffs ()
	Filtering methods. More...

void	setNormalize (bool normalize)

void	clear (void)
	clears the input/output buffers More...

void	setupCoeffs (SampleBuffer bCoeffs, SampleBuffer aCoeffs, unsigned num_b, unsigned num_a)
	to be overloaded by subclasses supply the coefficients directly More...

virtual void	nextBuffer (Buffer &outputBuffer, unsigned outBufNum) throw (CException)
	really compute the next buffer given an offset base channel; this is called by nextBuffer, possibly multiple times More...

virtual void	nextBuffer (Buffer &outputBuffer) throw (CException)
	get a buffer of Frames – this is the core CSL "pull" function; the given buffer can be written into, and a changed() message is sent. More...

void	dump ()
	log information about myself More...

virtual bool	isActive ()
	am I active? More...

void	setInput (UnitGenerator &inp)
	set the receiver's input generator More...

void	setInline ()
	set the Effect to be inline More...

virtual void	trigger ()
	trigger passed on here More...

unsigned	frameRate ()

void	setFrameRate (unsigned rate)
	get/set the receiver's frame rate More...

virtual unsigned	numChannels ()

void	setNumChannels (unsigned ch)
	get/set the receiver's number of outputs More...

BufferCopyPolicy	copyPolicy ()

void	setCopyPolicy (BufferCopyPolicy ch)
	get/set the receiver's buffer copy policy More...

virtual bool	isFixed ()
	query whether I'm fixed (StaticVariable overrides this) More...

void	addOutput (UnitGenerator *ugen)
	add to or return the UGen vector of outputs More...

void	removeOutput (UnitGenerator *ugen)

UGenVector	outputs ()

virtual unsigned	numOutputs ()

bool	checkFanOut (Buffer &outputBuffer) throw (CException)
	check for fan-out and copy previous buffer; return true if fanning out More...

void	handleFanOut (Buffer &outputBuffer) throw (CException)

virtual void	setValue (sample theValue)
	set/get the value (not allowed in the abstract, useful for static values) More...

virtual sample	value ()

void	attachObserver (Observer *)
	(possibly notify obersvers on my death) More...

void	detachObserver (Observer *)

void	changed (void *argument)
	this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map More...

virtual int	evaluate (void *argument)

Port *	getPort (CSL_MAP_KEY name)

void	setScale (UnitGenerator &scale)
	set the receiver's scale member to a UGen or a float More...

void	setScale (float scale)

void	setOffset (UnitGenerator &offset)
	set the receiver's offset member to a UGen or a float More...

void	setOffset (float offset)

void	isScaled ()
	answer whether scale = 1 & offset = 0 More...

void	setFrequency (UnitGenerator &frequency)
	set the receiver's frequency to a UGen or a float More...

void	setFrequency (float frequency)

float	getFrequency ()

void	setAmount (UnitGenerator &amount)
	set the receiver's amount to a UGen or a float More...

void	setAmount (float amount)

Public Attributes
bool	isInline
	whether to use input or buffer as source More...

Protected Member Functions
void	init (unsigned a, unsigned b)
	shared initialization function More...

void	pullInput (Buffer &outputBuffer) throw (CException)

void	pullInput (unsigned numFrames) throw (CException)
	trigger passed on here More...

void	pullInput (Port *thePort, unsigned numFrames) throw (CException)
	method to read the control values (in case they're dynamic). this sends nextBuffer() to the input. More...

void	pullInput (Port *thePort, Buffer &theBuffer) throw (CException)

virtual void	trigger ()
	trigger passed on here get the input port More...

Port *	inPort ()

void	zeroBuffer (Buffer &outputBuffer, unsigned outBufNum)
	utility method to zero out an outputBuffer More...

void	addInput (CSL_MAP_KEY name, UnitGenerator &ugen)
	Plug in a unit generator to the named input slot. More...

void	addInput (CSL_MAP_KEY name, float value)
	Plug in a float to the named input slot. More...

Protected Attributes
bool	mNormalize

float	mBCoeff [FILTER_MAX_COEFFICIENTS]
	array of numerator coeffs More...

float	mACoeff [FILTER_MAX_COEFFICIENTS]
	array of denominator coeffs More...

unsigned	mBNum
	number of coeffs in b More...

unsigned	mANum
	number of coeffs in a More...

Buffer *	mPrevInputs
	arrays of past input and output samples More...

Buffer *	mPrevOutputs

float	mFrame
	to keep hold of sample rate for calculating coeffs More...

SampleBuffer	mInputPtr
	A pointer to my input's data. method to read the input value. More...

unsigned	mFrameRate
	trigger ignored here More...

unsigned	mNumChannels
	my "expected" number of output channels More...

BufferCopyPolicy	mCopyPolicy
	the policy I use if asked for more or fewer channels More...

UGenVector	mOutputs
	the vector of my output UGens More...

unsigned	mNumOutputs
	the number of outputs More...

Buffer *	mOutputCache
	my past output ring buffer (only used in case of fan-out) More...

unsigned	mSequence
	the highest-seen buffer seq number More...

PortMap	mInputs
	the map of my inputs or controls (used by the mix-in classes) More...

Detailed Description

Formant Filter with zeros at +-z and complex conjugate poles at +-omega. setupCoeffs() looks at the member var called normalize; if normalize is true, the filter zeros are placed at z = 1, z = -1, and the coefficients are then normalized to produce a constant unity peak gain. The resulting filter frequency response has a resonance at the given frequency. The closer the poles are to the unit-circle (radius close to one), the narrower the resulting resonance width.

Definition at line 190 of file Filters.h.

Constructor & Destructor Documentation

Formant::Formant	(	UnitGenerator &	in,
		float	center_freq,
		float	radius
	)

constructors & destructor

Definition at line 542 of file Filters.cpp.

References csl::Filter::clear(), mNormalize, csl::FrequencyAmount::setAmount(), csl::FrequencyAmount::setFrequency(), and setupCoeffs().

Formant::Formant	(	UnitGenerator &	in,
		UnitGenerator &	center_freq,
		float	radius
	)

Definition at line 550 of file Filters.cpp.

References csl::Filter::clear(), mNormalize, csl::FrequencyAmount::setAmount(), csl::FrequencyAmount::setFrequency(), and setupCoeffs().

csl::Formant::~Formant ( void )

inline

Definition at line 196 of file Filters.h.

Member Function Documentation

void Formant::setupCoeffs ( )

virtual

Filtering methods.

Reimplemented from csl::Filter.

Definition at line 566 of file Filters.cpp.

References CSL_FILTER_AMOUNT, CSL_FILTER_FREQUENCY, CSL_TWOPI, csl::UnitGenerator::mFrameRate, csl::Controllable::mInputs, and mNormalize.

Referenced by Formant(), and setNormalize().

void Formant::setNormalize ( bool normalize )

Definition at line 558 of file Filters.cpp.

References mNormalize, and setupCoeffs().

void Filter::clear ( void )

inherited

clears the input/output buffers

Definition at line 163 of file Filters.cpp.

References csl::Filter::mPrevInputs, csl::Filter::mPrevOutputs, and csl::Buffer::zeroBuffers().

Referenced by csl::Allpass::Allpass(), csl::Biquad::Biquad(), csl::Butter::Butter(), Formant(), and csl::Notch::Notch().

void Filter::setupCoeffs	(	SampleBuffer	bCoeffs,
		SampleBuffer	aCoeffs,
		unsigned	num_b,
		unsigned	num_a
	)

inherited

to be overloaded by subclasses supply the coefficients directly

this version is to be inherited by the subclasses. provides a way to directly supply the filter info

Definition at line 156 of file Filters.cpp.

References csl::Filter::mACoeff, and csl::Filter::mBCoeff.

void Filter::nextBuffer	(	Buffer &	outputBuffer,
		unsigned	outBufNum
	)
throw	(	CException
	)

virtualinherited

really compute the next buffer given an offset base channel; this is called by nextBuffer, possibly multiple times

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::Moog, and csl::Biquad.

Definition at line 105 of file Filters.cpp.

References DECLARE_FILTER_CONTROLS, DECLARE_SCALABLE_CONTROLS, LOAD_FILTER_CONTROLS, LOAD_SCALABLE_CONTROLS, csl::logMsg(), csl::Effect::pullInput(), and UPDATE_SCALABLE_CONTROLS.

void UnitGenerator::nextBuffer	(	Buffer &	outputBuffer	)
throw	(	CException
	)

virtualinherited

get a buffer of Frames – this is the core CSL "pull" function; the given buffer can be written into, and a changed() message is sent.

Reimplemented in csl::Joiner, csl::Splitter, csl::FanOut, csl::SoundCue, csl::Stereoverb, csl::StereoWidth, csl::Abst_SoundFile, csl::NtoMPanner, csl::RemoteStream, csl::BufferStream, csl::LSoundFile, csl::GrainPlayer, csl::Panner, csl::RingBuffer, csl::Instrument, csl::VBAP, csl::IFFT, csl::SpatialSource, csl::BinauralPanner, csl::InOut, csl::Spatializer, csl::Mixer, csl::SpatialPanner, csl::RingBufferTap, csl::Convolver, csl::AmbisonicPanner, csl::Convolver2, csl::FFT, csl::BlockResizer, csl::DelayLine, csl::SimplePanner, csl::SimplePanner, and csl::Microphone.

Definition at line 726 of file CSL_Core.cpp.

References csl::kCopy, csl::kExpand, csl::kIgnore, and csl::logMsg().

Referenced by csl::DistanceSimulator::nextBuffer(), csl::RingBufferTap::nextBuffer(), csl::Mixer::nextBuffer(), csl::AmbisonicMixer::nextBuffer(), csl::SpatialSource::nextBuffer(), csl::BufferStream::nextBuffer(), csl::Controllable::pullInput(), csl::PAIO::test(), and csl::FileIO::writeNextBuffer().

void Filter::dump ( void )

virtualinherited

log information about myself

Reimplemented from csl::UnitGenerator.

Definition at line 169 of file Filters.cpp.

References csl::UnitGenerator::dump(), csl::Controllable::dump(), csl::logMsg(), csl::Filter::mACoeff, csl::Filter::mANum, csl::Filter::mBCoeff, and csl::Filter::mBNum.

void Filter::init	(	unsigned	a,
		unsigned	b
	)

protectedinherited

shared initialization function

Definition at line 84 of file Filters.cpp.

References csl::Buffer::allocateBuffers(), csl::CGestalt::frameRate(), csl::Filter::mACoeff, csl::Filter::mANum, csl::Filter::mBCoeff, csl::Filter::mBNum, csl::UnitGenerator::mFrameRate, csl::Filter::mPrevInputs, and csl::Filter::mPrevOutputs.

Referenced by csl::Filter::Filter().

bool Effect::isActive ( )

virtualinherited

am I active?

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::Joiner, and csl::Stereoverb.

Definition at line 1105 of file CSL_Core.cpp.

References CSL_INPUT, csl::Port::isActive(), and csl::Controllable::mInputs.

Referenced by csl::Stereoverb::isActive().

void Effect::setInput ( UnitGenerator & inp )

inherited

set the receiver's input generator

Definition at line 1112 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_INPUT, csl::Effect::isInline, and csl::logMsg().

void csl::Effect::setInline ( )

inlineinherited

set the Effect to be inline

Definition at line 476 of file CSL_Core.h.

void Effect::pullInput	(	Buffer &	outputBuffer	)
throw	(	CException
	)

protectedinherited

Definition at line 1122 of file CSL_Core.cpp.

References CSL_INPUT, csl::logMsg(), and csl::Controllable::pullInput().

Referenced by csl::Convolver2::nextBuffer(), csl::Convolver::nextBuffer(), csl::InOut::nextBuffer(), csl::RingBuffer::nextBuffer(), csl::Panner::nextBuffer(), csl::FIR::nextBuffer(), csl::DynamicVariable::nextBuffer(), csl::Filter::nextBuffer(), csl::NtoMPanner::nextBuffer(), csl::StereoWidth::nextBuffer(), csl::Biquad::nextBuffer(), and SAFliter::nextBuffer().

void Effect::pullInput	(	unsigned	numFrames	)
throw	(	CException
	)

protectedinherited

trigger passed on here

Definition at line 1137 of file CSL_Core.cpp.

References csl::Buffer::buffer(), CSL_INPUT, csl::logMsg(), csl::Port::mBuffer, and csl::Controllable::pullInput().

void Controllable::pullInput	(	Port *	thePort,
		unsigned	numFrames
	)
throw	(	CException
	)

protectedinherited

method to read the control values (in case they're dynamic). this sends nextBuffer() to the input.

Definition at line 847 of file CSL_Core.cpp.

References csl::kSamples, csl::logMsg(), csl::Buffer::mIsPopulated, csl::Buffer::mNumFrames, csl::Buffer::mType, csl::UnitGenerator::nextBuffer(), and csl::Buffer::zeroBuffers().

Referenced by csl::Panner::nextBuffer(), csl::NtoMPanner::nextBuffer(), and csl::Effect::pullInput().

void Controllable::pullInput	(	Port *	thePort,
		Buffer &	theBuffer
	)
throw	(	CException
	)

protectedinherited

Definition at line 879 of file CSL_Core.cpp.

References csl::UnitGenerator::nextBuffer().

void Effect::trigger ( void )

protectedvirtualinherited

trigger passed on here get the input port

Reimplemented from csl::UnitGenerator.

Reimplemented in csl::Joiner.

Definition at line 1148 of file CSL_Core.cpp.

References CSL_INPUT, and csl::Controllable::mInputs.

void Scalable::trigger ( void )

virtualinherited

trigger passed on here

Reimplemented in csl::RandEnvelope, csl::Abst_SoundFile, csl::Envelope, and csl::KarplusString.

Definition at line 1069 of file CSL_Core.cpp.

References CSL_OFFSET, CSL_SCALE, and csl::Controllable::mInputs.

Port* csl::Effect::inPort ( )

inlineprotectedinherited

Definition at line 485 of file CSL_Core.h.

References CSL_INPUT.

Referenced by csl::BinaryOp::dump(), and csl::BinaryOp::inputIsFixed().

unsigned csl::UnitGenerator::frameRate ( )

inlineinherited

Definition at line 249 of file CSL_Core.h.

References csl::UnitGenerator::mFrameRate.

Referenced by csl::CASoundFile::dump(), csl::Abst_SoundFile::dump(), and csl::SoundCue::dump().

void csl::UnitGenerator::setFrameRate ( unsigned rate )

inlineinherited

get/set the receiver's frame rate

Definition at line 250 of file CSL_Core.h.

References csl::UnitGenerator::mFrameRate.

virtual unsigned csl::UnitGenerator::numChannels ( )

inlinevirtualinherited

Reimplemented in csl::Splitter, and csl::Stereoverb.

Definition at line 252 of file CSL_Core.h.

References csl::UnitGenerator::mNumChannels.

Referenced by csl::AmbisonicMixer::addInput(), csl::BlockResizer::BlockResizer(), csl::Port::checkBuffer(), csl::Effect::Effect(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::Mixer::nextBuffer(), csl::Convolver2::setIRFile(), csl::Convolver::setIRFile(), and csl::SpatialSource::SpatialSource().

void csl::UnitGenerator::setNumChannels ( unsigned ch )

inlineinherited

get/set the receiver's number of outputs

Definition at line 253 of file CSL_Core.h.

References csl::UnitGenerator::mNumChannels.

Referenced by csl::BinauralPanner::BinauralPanner(), csl::Spatializer::Spatializer(), csl::VBAP::speakerLayoutChanged(), and csl::VBAP::VBAP().

BufferCopyPolicy csl::UnitGenerator::copyPolicy ( )

inlineinherited

Definition at line 255 of file CSL_Core.h.

References csl::UnitGenerator::mCopyPolicy.

void csl::UnitGenerator::setCopyPolicy ( BufferCopyPolicy ch )

inlineinherited

get/set the receiver's buffer copy policy

Definition at line 256 of file CSL_Core.h.

References csl::UnitGenerator::mCopyPolicy.

Referenced by csl::AmbisonicPanner::AmbisonicPanner(), csl::BinauralPanner::BinauralPanner(), csl::AmbisonicUnitGenerator::initOrder(), csl::Noise::Noise(), csl::PinkNoise::PinkNoise(), csl::Spatializer::Spatializer(), and csl::VBAP::VBAP().

virtual bool csl::UnitGenerator::isFixed ( )

inlinevirtualinherited

query whether I'm fixed (StaticVariable overrides this)

Reimplemented in csl::StaticVariable, and csl::BinaryOp.

Definition at line 271 of file CSL_Core.h.

void UnitGenerator::addOutput ( UnitGenerator * ugen )

inherited

add to or return the UGen vector of outputs

Definition at line 670 of file CSL_Core.cpp.

References csl::Buffer::allocateBuffers(), csl::CGestalt::blockSize(), csl::UnitGenerator::mNumOutputs, csl::UnitGenerator::mOutputCache, and csl::UnitGenerator::mOutputs.

Referenced by csl::Mixer::addInput(), csl::Controllable::addInput(), csl::AmbisonicRotator::initialize(), csl::AmbisonicDecoder::initialize(), csl::AmbisonicEncoder::setInput(), and csl::IO::setRoot().

void UnitGenerator::removeOutput ( UnitGenerator * ugen )

inherited

Definition at line 680 of file CSL_Core.cpp.

References csl::UnitGenerator::mNumOutputs, and csl::UnitGenerator::mOutputs.

Referenced by csl::IO::clearRoot(), csl::AmbisonicEncoder::setInput(), csl::AmbisonicDecoder::~AmbisonicDecoder(), and csl::AmbisonicRotator::~AmbisonicRotator().

UGenVector csl::UnitGenerator::outputs ( )

inlineinherited

Definition at line 277 of file CSL_Core.h.

References csl::UnitGenerator::mOutputs.

virtual unsigned csl::UnitGenerator::numOutputs ( )

inlinevirtualinherited

Definition at line 278 of file CSL_Core.h.

References csl::UnitGenerator::mNumOutputs.

bool UnitGenerator::checkFanOut	(	Buffer &	outputBuffer	)
throw	(	CException
	)

inherited

check for fan-out and copy previous buffer; return true if fanning out

Definition at line 699 of file CSL_Core.cpp.

void UnitGenerator::handleFanOut	(	Buffer &	outputBuffer	)
throw	(	CException
	)

inherited

Definition at line 713 of file CSL_Core.cpp.

References csl_max.

virtual void csl::UnitGenerator::setValue ( sample theValue )

inlinevirtualinherited

set/get the value (not allowed in the abstract, useful for static values)

Reimplemented in csl::DynamicVariable, and csl::StaticVariable.

Definition at line 284 of file CSL_Core.h.

virtual sample csl::UnitGenerator::value ( )

inlinevirtualinherited

Reimplemented in csl::StaticVariable.

Definition at line 285 of file CSL_Core.h.

void UnitGenerator::zeroBuffer	(	Buffer &	outputBuffer,
		unsigned	outBufNum
	)

protectedinherited

utility method to zero out an outputBuffer

Definition at line 663 of file CSL_Core.cpp.

References csl::Buffer::buffer(), and csl::Buffer::mMonoBufferByteSize.

void Model::attachObserver ( Observer * o )

inherited

(possibly notify obersvers on my death)

register/remove observers

Definition at line 502 of file CGestalt.cpp.

References csl::logMsg(), csl::Observer::mKey, and csl::Observer::mPeriod.

Referenced by CSLMIDIComponent::CSLMIDIComponent(), and csl::SpatialPanner::setSpeakerLayout().

void Model::detachObserver ( Observer * o )

inherited

Definition at line 518 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpatialPanner::setSpeakerLayout(), and csl::SpatialPanner::~SpatialPanner().

void Model::changed ( void * argument )

inherited

this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map

Definition at line 540 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpeakerLayout::addSpeaker(), csl::MIDIIn::handleIncomingMidiMessage(), and csl::SpeakerLayout::setDefaultSpeakerLayout().

virtual int csl::Model::evaluate ( void * argument )

inlinevirtualinherited

Reimplemented in csl::MIDIIn.

Definition at line 270 of file CGestalt.h.

Port * Controllable::getPort ( CSL_MAP_KEY name )

inherited

Definition at line 920 of file CSL_Core.cpp.

References csl::Controllable::mInputs.

Referenced by csl::FrequencyAmount::getFrequency(), and csl::VSTIO::getParameter().

void Controllable::addInput	(	CSL_MAP_KEY	name,
		UnitGenerator &	ugen
	)

protectedinherited

Plug in a unit generator to the named input slot.

Definition at line 894 of file CSL_Core.cpp.

References csl::UnitGenerator::addOutput(), csl::logMsg(), and csl::Controllable::mInputs.

Referenced by csl::Joiner::addInput(), csl::BinaryOp::BinaryOp(), csl::DistanceSimulator::DistanceSimulator(), csl::Effect::Effect(), csl::InOut::InOut(), csl::Joiner::Joiner(), csl::NtoMPanner::NtoMPanner(), csl::Panner::Panner(), csl::Phased::Phased(), csl::Scalable::Scalable(), csl::FrequencyAmount::setAmount(), csl::FrequencyAmount::setFrequency(), csl::Phased::setFrequency(), csl::Effect::setInput(), csl::Scalable::setOffset(), csl::Panner::setPosition(), csl::Abst_SoundFile::setRate(), csl::Scalable::setScale(), csl::NtoMPanner::setX(), csl::NtoMPanner::setY(), and csl::SpatialSource::SpatialSource().

void Controllable::addInput	(	CSL_MAP_KEY	name,
		float	value
	)

protectedinherited

Plug in a float to the named input slot.

Definition at line 906 of file CSL_Core.cpp.

References csl::logMsg(), csl::Controllable::mInputs, and csl::Port::mValue.

void Scalable::setScale ( UnitGenerator & scale )

inherited

set the receiver's scale member to a UGen or a float

Definition at line 1039 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_SCALE, and csl::logMsg().

Referenced by createRandFreqEnvPatch(), csl::FancyFMInstrument::FancyFMInstrument(), csl::AdditiveInstrument::init(), csl::SndFileInstrument::initialize(), main(), csl::FMInstrument::parseArgs(), csl::SndFileInstrument::playNote(), csl::SndFileInstrument::playOSC(), csl::AdditiveInstrument::setParameter(), csl::SndFileInstrument::setParameter(), csl::FancyFMInstrument::setParameter(), sosNote(), test_SHARC(), test_SHARC2(), testADSR_FM(), testARSin2(), testComplexEnvelope(), testEnvScale(), testFancy_FM(), testFanMix1(), testFanMix2(), testMultiTap(), testRandFreqEnv(), testReverb(), testSplitJoin1(), testSplitJoin2(), testStereoverb(), testString(), testStringChorus(), testSumOfSines1F(), testSumOfSinesCached(), testSumOfSinesNonCached(), testSumOfSinesSteps(), and testWaveShaper().

void Scalable::setScale ( float scale )

inherited

Definition at line 1046 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_SCALE, and csl::logMsg().

void Scalable::setOffset ( UnitGenerator & offset )

inherited

set the receiver's offset member to a UGen or a float

Definition at line 1053 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_OFFSET, and csl::logMsg().

void Scalable::setOffset ( float offset )

inherited

Definition at line 1060 of file CSL_Core.cpp.

References csl::Controllable::addInput(), CSL_OFFSET, and csl::logMsg().

void csl::Scalable::isScaled ( )

inherited

answer whether scale = 1 & offset = 0

void FrequencyAmount::setFrequency ( UnitGenerator & frequency )

inherited

set the receiver's frequency to a UGen or a float

Definition at line 27 of file Filters.cpp.

References csl::Controllable::addInput(), CSL_FILTER_FREQUENCY, and csl::logMsg().

Referenced by csl::Allpass::Allpass(), csl::Butter::Butter(), Formant(), csl::Moog::Moog(), csl::Notch::Notch(), csl::VSTIO::setParameter(), and testStereoverb().

void FrequencyAmount::setFrequency ( float frequency )

inherited

Definition at line 34 of file Filters.cpp.

References csl::Controllable::addInput(), CSL_FILTER_FREQUENCY, and csl::logMsg().

float FrequencyAmount::getFrequency ( )

inherited

Definition at line 41 of file Filters.cpp.

References CSL_FILTER_FREQUENCY, and csl::Controllable::getPort().

void FrequencyAmount::setAmount ( UnitGenerator & amount )

inherited

set the receiver's amount to a UGen or a float

Definition at line 45 of file Filters.cpp.

References csl::Controllable::addInput(), CSL_FILTER_AMOUNT, and csl::logMsg().

Referenced by csl::Allpass::Allpass(), csl::Butter::Butter(), Formant(), csl::Moog::Moog(), and csl::Notch::Notch().

void FrequencyAmount::setAmount ( float amount )

inherited

Definition at line 52 of file Filters.cpp.

References csl::Controllable::addInput(), CSL_FILTER_AMOUNT, and csl::logMsg().

Member Data Documentation

bool csl::Formant::mNormalize

protected

Definition at line 203 of file Filters.h.

Referenced by Formant(), setNormalize(), and setupCoeffs().

float csl::Filter::mBCoeff[FILTER_MAX_COEFFICIENTS]

protectedinherited

array of numerator coeffs

Definition at line 120 of file Filters.h.

Referenced by csl::Filter::dump(), csl::Filter::init(), csl::Filter::setupCoeffs(), and csl::Butter::setupCoeffs().

float csl::Filter::mACoeff[FILTER_MAX_COEFFICIENTS]

protectedinherited

array of denominator coeffs

Definition at line 121 of file Filters.h.

Referenced by csl::Filter::dump(), csl::Filter::init(), csl::Filter::setupCoeffs(), and csl::Butter::setupCoeffs().

unsigned csl::Filter::mBNum

protectedinherited

number of coeffs in b

Definition at line 122 of file Filters.h.

Referenced by csl::Filter::dump(), and csl::Filter::init().

unsigned csl::Filter::mANum

protectedinherited

number of coeffs in a

Definition at line 123 of file Filters.h.

Referenced by csl::Filter::dump(), and csl::Filter::init().

Buffer* csl::Filter::mPrevInputs

protectedinherited

arrays of past input and output samples

Definition at line 124 of file Filters.h.

Referenced by csl::Filter::clear(), csl::Filter::init(), and csl::Filter::~Filter().

Buffer* csl::Filter::mPrevOutputs

protectedinherited

Definition at line 125 of file Filters.h.

Referenced by csl::Filter::clear(), csl::Filter::init(), and csl::Filter::~Filter().

float csl::Filter::mFrame

protectedinherited

to keep hold of sample rate for calculating coeffs

Definition at line 126 of file Filters.h.

bool csl::Effect::isInline

inherited

whether to use input or buffer as source

Definition at line 475 of file CSL_Core.h.

Referenced by csl::Effect::Effect(), and csl::Effect::setInput().

SampleBuffer csl::Effect::mInputPtr

protectedinherited

A pointer to my input's data. method to read the input value.

Definition at line 479 of file CSL_Core.h.

unsigned csl::UnitGenerator::mFrameRate

protectedinherited

trigger ignored here

the frame rate – initialized to be the default by the constructor

Definition at line 288 of file CSL_Core.h.

Referenced by csl::Abst_SoundFile::convertRate(), csl::Lorenz::dump(), csl::Abst_SoundFile::durationInSecs(), csl::UnitGenerator::frameRate(), csl::Filter::init(), csl::CASoundFile::initFromSndfile(), csl::JSoundFile::initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::RandEnvelope::nextSegment(), csl::SquareBL::nextWaveInto(), csl::SumOfSines::nextWaveInto(), csl::DelayLine::setDelayTime(), csl::UnitGenerator::setFrameRate(), csl::Abst_SoundFile::setStartSec(), csl::Abst_SoundFile::setStopSec(), csl::Butter::setupCoeffs(), setupCoeffs(), csl::Notch::setupCoeffs(), and csl::Moog::setupCoeffs().

unsigned csl::UnitGenerator::mNumChannels

protectedinherited

my "expected" number of output channels

Definition at line 292 of file CSL_Core.h.

Referenced by csl::AmbisonicMixer::addInput(), csl::Mixer::allocateOpBuffer(), csl::AmbisonicDecoder::asProjection(), csl::AmbisonicDecoder::asPseudoInverse(), csl::BlockResizer::BlockResizer(), csl::Abst_SoundFile::channels(), csl::Abst_SoundFile::checkBuffer(), csl::FMInstrument::FMInstrument(), csl::GrainPlayer::GrainPlayer(), csl::AdditiveInstrument::init(), csl::JSoundFile::initFromSndfile(), csl::LSoundFile::initFromSndfile(), csl::AmbisonicMixer::initialize(), csl::SndFileInstrument::initialize(), csl::AmbisonicRotator::initialize(), csl::AmbisonicEncoder::initialize(), csl::AmbisonicDecoder::initialize(), csl::AmbisonicUnitGenerator::initOrder(), csl::RemoteStream::initPacket(), csl::Joiner::isActive(), csl::Joiner::Joiner(), csl::AmbisonicDecoder::makeInPhase(), csl::AmbisonicDecoder::makeMaxRE(), csl::Abst_SoundFile::mergeToMono(), csl::Mixer::Mixer(), csl::UnitGenerator::numChannels(), csl::Panner::Panner(), csl::CASoundFile::readBufferFromFile(), csl::JSoundFile::readBufferFromFile(), csl::LSoundFile::readBufferFromFile(), csl::RemoteStream::RemoteStream(), csl::UnitGenerator::setNumChannels(), csl::WavetableOscillator::setWaveform(), csl::Joiner::trigger(), and csl::AmbisonicRotator::~AmbisonicRotator().

BufferCopyPolicy csl::UnitGenerator::mCopyPolicy

protectedinherited

the policy I use if asked for more or fewer channels

Definition at line 293 of file CSL_Core.h.

Referenced by csl::UnitGenerator::copyPolicy(), and csl::UnitGenerator::setCopyPolicy().

UGenVector csl::UnitGenerator::mOutputs

protectedinherited

the vector of my output UGens

Definition at line 294 of file CSL_Core.h.

Referenced by csl::UnitGenerator::addOutput(), csl::UnitGenerator::dump(), csl::UnitGenerator::outputs(), and csl::UnitGenerator::removeOutput().

unsigned csl::UnitGenerator::mNumOutputs

protectedinherited

the number of outputs

Definition at line 295 of file CSL_Core.h.

Referenced by csl::UnitGenerator::addOutput(), csl::UnitGenerator::numOutputs(), and csl::UnitGenerator::removeOutput().

Buffer* csl::UnitGenerator::mOutputCache

protectedinherited

my past output ring buffer (only used in case of fan-out)

Definition at line 296 of file CSL_Core.h.

Referenced by csl::UnitGenerator::addOutput().

unsigned csl::UnitGenerator::mSequence

protectedinherited

the highest-seen buffer seq number

Definition at line 297 of file CSL_Core.h.

PortMap csl::Controllable::mInputs

protectedinherited

the map of my inputs or controls (used by the mix-in classes)

Definition at line 378 of file CSL_Core.h.

Referenced by csl::Controllable::addInput(), csl::BinaryOp::dump(), csl::Controllable::dump(), csl::Controllable::getPort(), csl::Biquad::incrBoost(), csl::Biquad::incrFrq(), csl::Effect::isActive(), csl::Joiner::isActive(), csl::SquareBL::nextWaveInto(), csl::BinaryOp::operandIsFixed(), csl::Phased::Phased(), csl::DistanceSimulator::positionChanged(), csl::Scalable::Scalable(), csl::Biquad::setBoost(), csl::Biquad::setFrq(), csl::BinaryOp::setOperand(), csl::Abst_SoundFile::setRate(), csl::Butter::setupCoeffs(), setupCoeffs(), csl::Notch::setupCoeffs(), csl::Allpass::setupCoeffs(), csl::Moog::setupCoeffs(), csl::Scalable::trigger(), csl::Effect::trigger(), csl::Joiner::trigger(), and csl::Controllable::~Controllable().

The documentation for this class was generated from the following files:

/Content/Code/CSL6/Src/Processors/Filters.h
/Content/Code/CSL6/Src/Processors/Filters.cpp

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
