IO – the abstract I/O scheduling class; subclasses interface to specific I/O APIs. More...

#include <CSL_Core.h>

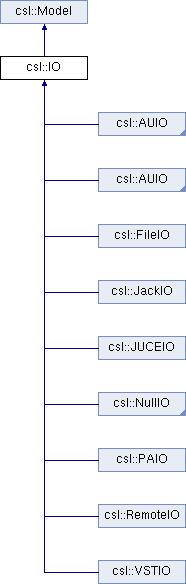

Inheritance diagram for csl::IO:

Public Member Functions
	IO (unsigned s_rate=44100, unsigned b_size=CSL_mBlockSize, int in_device=-1, int out_device=-1, unsigned in_chans=2, unsigned out_chans=2)
	superclass = Model More...

virtual	~IO ()
	default is stereo input & output More...

virtual void	open () throw (CException)

virtual void	close () throw (CException)
	open/close start/stop methods More...

virtual void	start () throw (CException)

virtual void	stop () throw (CException)

virtual void	test () throw (CException)

virtual void	capture_on (float dur)
	test the IO's graph More...

virtual void	capture_off ()
	end output capture More...

virtual Buffer *	get_capture ()
	answer the capture buffer More...

void	setRoot (UnitGenerator &root)
	set/clear my graph root generator More...

void	clearRoot ()

void	pullInput (Buffer &outBuffer, SampleBuffer out=0) throw (CException)
	get a buffer from the CSL graph More...

virtual Buffer &	getInput () throw (CException)
	Get the current input from the sound card. More...

virtual Buffer &	getInput (unsigned numFrames, unsigned numChannels) throw (CException)

unsigned	getAndIncrementSequence ()
	increment and answer my seq # More...

void	printTimeStatistics (struct timeval tthen, struct timeval tnow, long tsecond, long ttimeSum, long *ttimeVals)

void	attachObserver (Observer *)
	(possibly notify obersvers on my death) More...

void	detachObserver (Observer *)

void	changed (void *argument)
	this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map More...

virtual int	evaluate (void *argument)

Public Attributes
UnitGenerator *	mGraph
	the root of my client DSP graph, often a mixer or panner More...

Buffer	mInputBuffer
	the most recent input buffer (if it's turned on) More...

Buffer	mOutputBuffer
	the output buffer I use (passed to nextBuffer calls) More...

Buffer	mCaptureBuffer
	the output buffer I use for capturing output (for testing) More...

SampleBuffer	mInputPointer
	the buffer for holding the sound card input (if open) More...

unsigned *	mChannelMap
	the output channel remapping array More...

unsigned	mNumFramesPlayed
	counter of frames I've played More...

unsigned	mSequence
	sequence counter More...

unsigned	mLoggingPeriod
	logging period in seconds More...

unsigned	mNumInChannels
	inputs More...

unsigned	mNumOutChannels
	outputs More...

unsigned	mNumRealInChannels
	physical inputs More...

unsigned	mNumRealOutChannels
	physical outputs More...

IO_Status	mStatus
	status flag More...

bool	mInterleaved
	flag if IO is interleaved More...

unsigned	mOffset
	used for capture offset More...

struct timeval mThen	mNow
	used for getting the real time More...

long	mTimeVals

long	mThisSec

long	mTimeSum
	for printing run-time statistics More...

float	mUsage
	cpu usage % print the CPU usage message More...

Protected Member Functions
virtual void	initialize (unsigned sr, unsigned bs, int is, int os, unsigned ic, unsigned oc)
	initialize overridden in subclasses More...

Protected Attributes
float	maxSampEver

Detailed Description

IO – the abstract I/O scheduling class; subclasses interface to specific I/O APIs.

An IO object has a graph (a ptr to a UGen), and it registers itself with some call-back API (like PortAudio, CoreAudio, Jack, VST, JUCE), setting up a callback function that in turn calls the nextBuffer() method of its graph root.

One creates an IO with the desired rate, block size (optional) I/O device keys, and the number of in and out channels; you then set its root to be your DSP graph and send it start/stop messages.

All this is public because it's used by static call-back functions.

Definition at line 752 of file CSL_Core.h.

Constructor & Destructor Documentation

IO::IO	(	unsigned	s_rate = `44100`,
		unsigned	b_size = `CSL_mBlockSize`,
		int	in_device = `-1`,
		int	out_device = `-1`,
		unsigned	in_chans = `2`,
		unsigned	out_chans = `2`
	)

superclass = Model

Definition at line 1393 of file CSL_Core.cpp.

References csl::logMsg().

virtual csl::IO::~IO ( )

inlinevirtual

default is stereo input & output

Definition at line 757 of file CSL_Core.h.

Member Function Documentation

virtual void csl::IO::open	(		)
throw	(	CException
	)

inlinevirtual

Reimplemented in csl::iPhoneIO, csl::RemoteIO, csl::CAIO, csl::AUIO, csl::JackIO, csl::PAIO, csl::VSTIO, csl::FileIO, csl::AUIO, and csl::JUCEIO.

Definition at line 759 of file CSL_Core.h.

References csl::kIOOpen, and mStatus.

Referenced by oscServer(), and playSineMixer().

virtual void csl::IO::close	(		)
throw	(	CException
	)

inlinevirtual

open/close start/stop methods

Reimplemented in csl::iPhoneIO, csl::RemoteIO, csl::CAIO, csl::FileIO, csl::PAIO, csl::AUIO, csl::JackIO, csl::VSTIO, csl::AUIO, and csl::JUCEIO.

Definition at line 760 of file CSL_Core.h.

References csl::kIOClosed, and mStatus.

Referenced by playSineMixer(), and quit_handler().

virtual void csl::IO::start	(		)
throw	(	CException
	)

inlinevirtual

Reimplemented in csl::iPhoneIO, csl::StdIO, csl::RemoteIO, csl::CAIO, csl::AUIO, csl::JackIO, csl::NullIO, csl::VSTIO, csl::PAIO, csl::AUIO, and csl::JUCEIO.

Definition at line 761 of file CSL_Core.h.

References csl::kIORunning, and mStatus.

Referenced by CSLAbstComponent::CSLAbstComponent(), CSLComponent::CSLComponent(), oscServer(), and playSineMixer().

virtual void csl::IO::stop	(		)
throw	(	CException
	)

inlinevirtual

Reimplemented in csl::iPhoneIO, csl::StdIO, csl::RemoteIO, csl::CAIO, csl::FileIO, csl::AUIO, csl::JackIO, csl::NullIO, csl::VSTIO, csl::PAIO, csl::AUIO, and csl::JUCEIO.

Definition at line 762 of file CSL_Core.h.

References csl::kIOOpen, and mStatus.

Referenced by playSineMixer(), and quit_handler().

virtual void csl::IO::test	(		)
throw	(	CException
	)

inlinevirtual

Reimplemented in csl::FileIO, and csl::PAIO.

Definition at line 763 of file CSL_Core.h.

void IO::capture_on ( float dur )

virtual

test the IO's graph

begin output capture

Definition at line 1536 of file CSL_Core.cpp.

References csl::Buffer::allocateBuffers(), csl::CGestalt::frameRateF(), mCaptureBuffer, mNumOutChannels, mOffset, and csl::Buffer::setSize().

Referenced by test_convolution_file().

void IO::capture_off ( )

virtual

end output capture

Definition at line 1544 of file CSL_Core.cpp.

References mCaptureBuffer, and csl::Buffer::setSize().

Referenced by test_convolution_file().

Buffer * IO::get_capture ( )

virtual

answer the capture buffer

Definition at line 1550 of file CSL_Core.cpp.

References mCaptureBuffer.

Referenced by test_convolution_file().

void IO::setRoot ( UnitGenerator & root )

set/clear my graph root generator

Definition at line 1405 of file CSL_Core.cpp.

References csl::UnitGenerator::addOutput(), and mGraph.

Referenced by main(), oscServer(), playSineMixer(), test_Ambi_horiz(), test_Binaural_horiz(), test_Binaural_vertAxial(), test_Binaural_vertMedian(), test_convolution(), test_convolution_file(), test_SimpleP(), test_VBAP_horiz(), testMultiTap(), testReverb(), testSndFileBank(), testSoundFileTranspose(), testStereoverb(), testStringChorus(), and csl::VSTIO::VSTIO().

void IO::clearRoot ( )

void IO::pullInput	(	Buffer &	outBuffer,
		SampleBuffer	out = `0`
	)
throw	(	CException
	)

get a buffer from the CSL graph

Definition at line 1425 of file CSL_Core.cpp.

References GET_TIME, csl::kLogError, csl::logMsg(), and csl::CException::mMessage.

Referenced by csl::JUCEIO::audioDeviceIOCallback(), CSLServerComponent::audioDeviceIOCallback(), CSLMIDIComponent::audioDeviceIOCallback(), CSLAbstComponent::audioDeviceIOCallback(), CSLComponent::audioDeviceIOCallback(), csl::NullIO::FeederFunction(), csl::StdIO::FeederFunction(), JackCallback(), pa_callback(), csl::VSTIO::processReplacing(), and RenderCallback().

Buffer & IO::getInput	(		)
throw	(	CException
	)

virtual

Get the current input from the sound card.

Reimplemented in csl::FileIO, csl::AUIO, csl::AUIO, and csl::NullIO.

Definition at line 1517 of file CSL_Core.cpp.

References mInputBuffer, csl::Buffer::mNumChannels, and csl::Buffer::mNumFrames.

Buffer & IO::getInput	(	unsigned	numFrames,
		unsigned	numChannels
	)
throw	(	CException
	)

virtual

Reimplemented in csl::FileIO, csl::AUIO, csl::AUIO, and csl::NullIO.

Definition at line 1523 of file CSL_Core.cpp.

References csl::Interleaver::deinterleave(), and mNumInChannels.

unsigned IO::getAndIncrementSequence ( )

increment and answer my seq #

Definition at line 1418 of file CSL_Core.cpp.

References mSequence.

void IO::printTimeStatistics	(	struct timeval *	tthen,
		struct timeval *	tnow,
		long *	tsecond,
		long *	ttimeSum,
		long *	ttimeVals
	)

Definition at line 1486 of file CSL_Core.cpp.

References csl::CGestalt::blockSize(), csl::CGestalt::frameRateF(), csl::logMsg(), maxSampEver, mLoggingPeriod, mUsage, and SUB_TIMES.

Referenced by csl::FileIO::threadFunction().

virtual void csl::IO::initialize	(	unsigned	sr,
		unsigned	bs,
		int	is,
		int	os,
		unsigned	ic,
		unsigned	oc
	)

inlineprotectedvirtual

initialize overridden in subclasses

Reimplemented in csl::PAIO.

Definition at line 805 of file CSL_Core.h.

void Model::attachObserver ( Observer * o )

inherited

(possibly notify obersvers on my death)

register/remove observers

Definition at line 502 of file CGestalt.cpp.

References csl::logMsg(), csl::Observer::mKey, and csl::Observer::mPeriod.

Referenced by CSLMIDIComponent::CSLMIDIComponent(), and csl::SpatialPanner::setSpeakerLayout().

void Model::detachObserver ( Observer * o )

inherited

Definition at line 518 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpatialPanner::setSpeakerLayout(), and csl::SpatialPanner::~SpatialPanner().

void Model::changed ( void * argument )

inherited

this is what I send to myself to notify my observers; It's not overridden in general. It results in the observers receiving update() calls < override evaluate to filter updates to the observer map

Definition at line 540 of file CGestalt.cpp.

References csl::logMsg().

Referenced by csl::SpeakerLayout::addSpeaker(), csl::MIDIIn::handleIncomingMidiMessage(), and csl::SpeakerLayout::setDefaultSpeakerLayout().

virtual int csl::Model::evaluate ( void * argument )

inlinevirtualinherited

Reimplemented in csl::MIDIIn.

Definition at line 270 of file CGestalt.h.
